Intel® Desktop Board
D945PWM
Specification Update
Release Date: November 2006
Order Number: D50872-004US
The Intel
®
Desktop Board D945PWM may contain design defects or errors known as errata, which
may cause the product to deviate from published specifications. Current characterized errata are
documented in this Specification Update.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intel D945PWM
Summary of Contents for Intel D945PWM

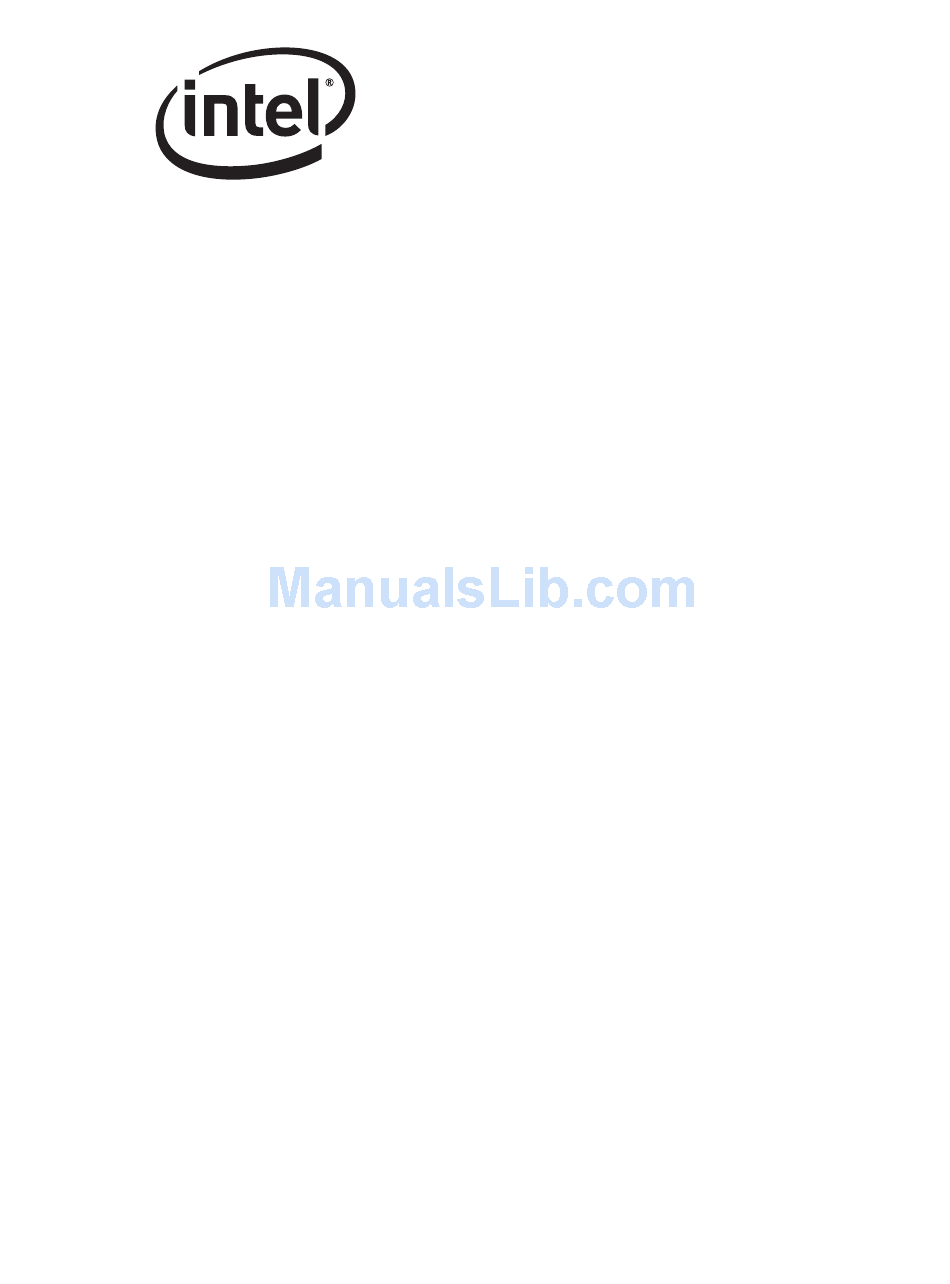

- Page 1 Release Date: November 2006 Order Number: D50872-004US The Intel ® Desktop Board D945PWM may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are documented in this Specification Update.
- Page 2 D945PWM may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request. Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.
-
Page 3: Table Of Contents
CONTENTS REVISION HISTORY ............................. v PREFACE.................................vi Specification Update for the Intel ® Desktop Board D945PWM GENERAL INFORMATION ..........................3 SPECIFICATION CHANGES ......................... 5 ERRATA ................................6... -
Page 5: Revision History
® Intel Desktop Board D945PWM Specification Update REVISION HISTORY Date of Revision Version Description February 13, 2006 -001 This document is the first Specification Update for the ® Intel Desktop Board D945PWM. July 2006 -002 Added Specification Changes 1, Erratum 1 and updated General Information table. -
Page 6: Preface
(Order Number 307503) for specification updates concerning the 82945G GMCH Controller and that may apply to the desktop board D945PWM. Unless otherwise noted in this document, it should be assumed that any MCH errata for a given stepping are applicable to the Altered Assembly (AA) revision(s) associated with that stepping. -
Page 7: Specification Update For The Intel Desktop Board D945Pwm
Specification Update for the Intel ® Desktop Board D945PWM... -
Page 9: General Information
® Intel Desktop Board D945PWM Specification Update GENERAL INFORMATION Basic Desktop Board D945PWM Identification Information AA Revision BIOS Revision Notes D42248-100 SN94510J.86A.0057 D42248-101 SN94510J.86A.0057 D42248-102 SN94510J.86A.0057 NOTES: The AA number is found on a small label on the component side of the board. - Page 10 ® Documentation Changes that apply to the Intel Desktop Board D945PWM. Intel intends to fix some of the errata in a future revision of the desktop board, and to account for the other outstanding issues through documentation or specification changes as noted. This table uses...
-
Page 11: Specification Changes
Intel Desktop Board D945PWM Specification Update SPECIFICATION CHANGES The Specification Changes listed in this section apply to the Desktop Board D945PWM Technical Product Specification (Order Number D44275). All Specification Changes will be incorporated into a future version of that specification. -
Page 12: Errata
® Intel Desktop Board D945PWM Specification Update ERRATA The placement of capacitors behind PCI Express* x1 connector slot 1 may prohibit some PCI Express x1 add in cards from properly connecting to the motherboard Due to the design and placement of the audio circuitry on this motherboard, it was necessary to ROBLEM position capacitors in the keep-out zone behind PCI Express* x1 connector slot 1.
