Intel Desktop Board D945PVS Product Guide

Connecting the Serial ATA (SATA) Cable

The SATA cable (4-conductor) supports the Serial ATA protocol and connects a single drive to the
desktop board. For correct cable function:
1. Observe the precautions in "Before You Begin" on page 23.
2. Attach the locking cable end to the connector on the board (Figure 19, A).
3. Attach the cable end without the lock to the drive (Figure 19, B).
38
A
R
Intel
(ICH7)

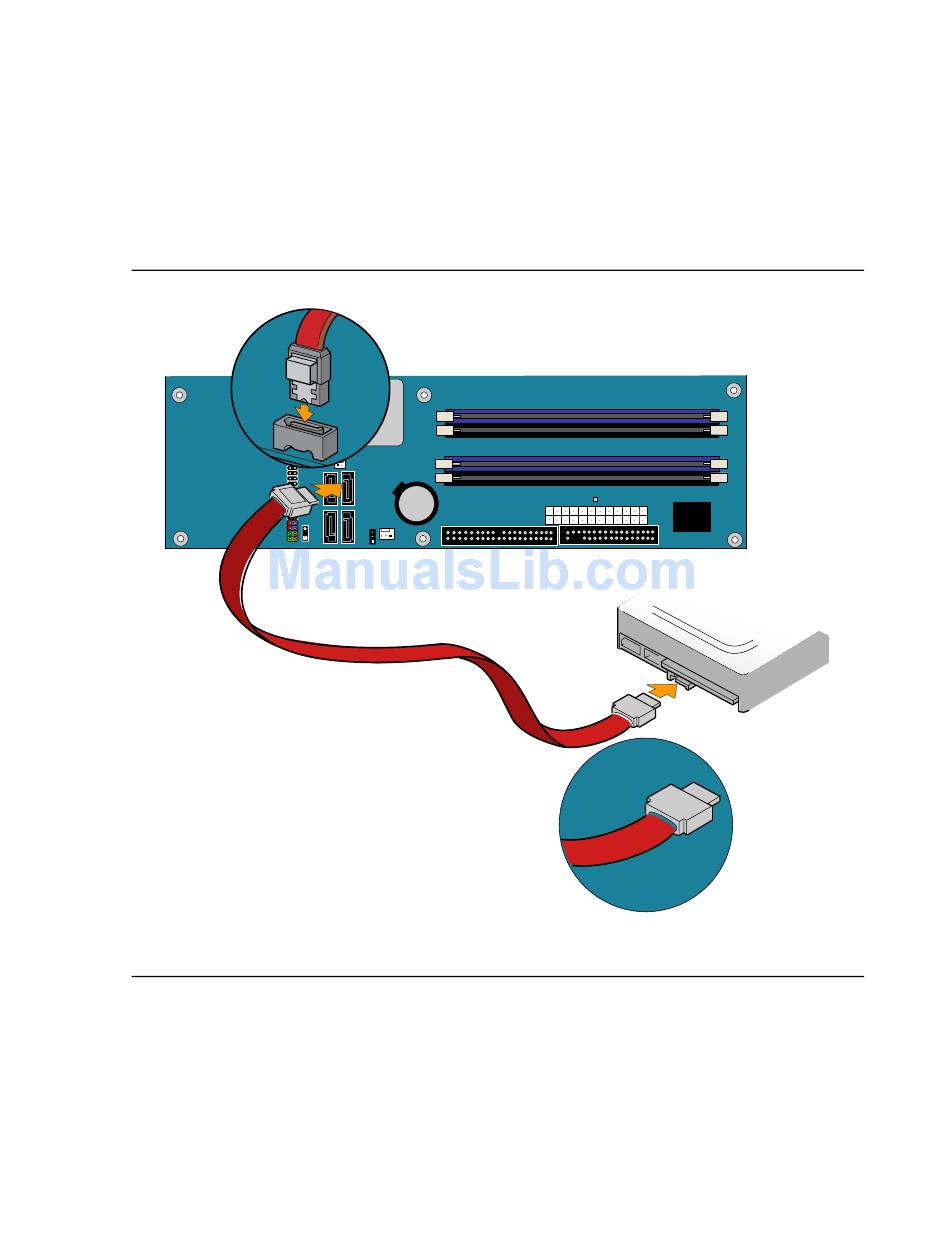

Figure 19. Connecting the Serial ATA Cable
B
OM17675
