Intel® Desktop Board
D945PAW
Specification Update
Release Date: February 2007
Order Number: D23994-006US
The Intel
®
Desktop Board D945PAW may contain design defects or errors known as errata, which may
cause the product to deviate from published specifications. Current characterized errata are
documented in this Specification Update.

Advertisement

loading
Need help?

Need help?

Do you have a question about the D945PAW and is the answer not in the manual?

Questions and answers

Related Manuals for Intel D945PAW

Summary of Contents for Intel D945PAW

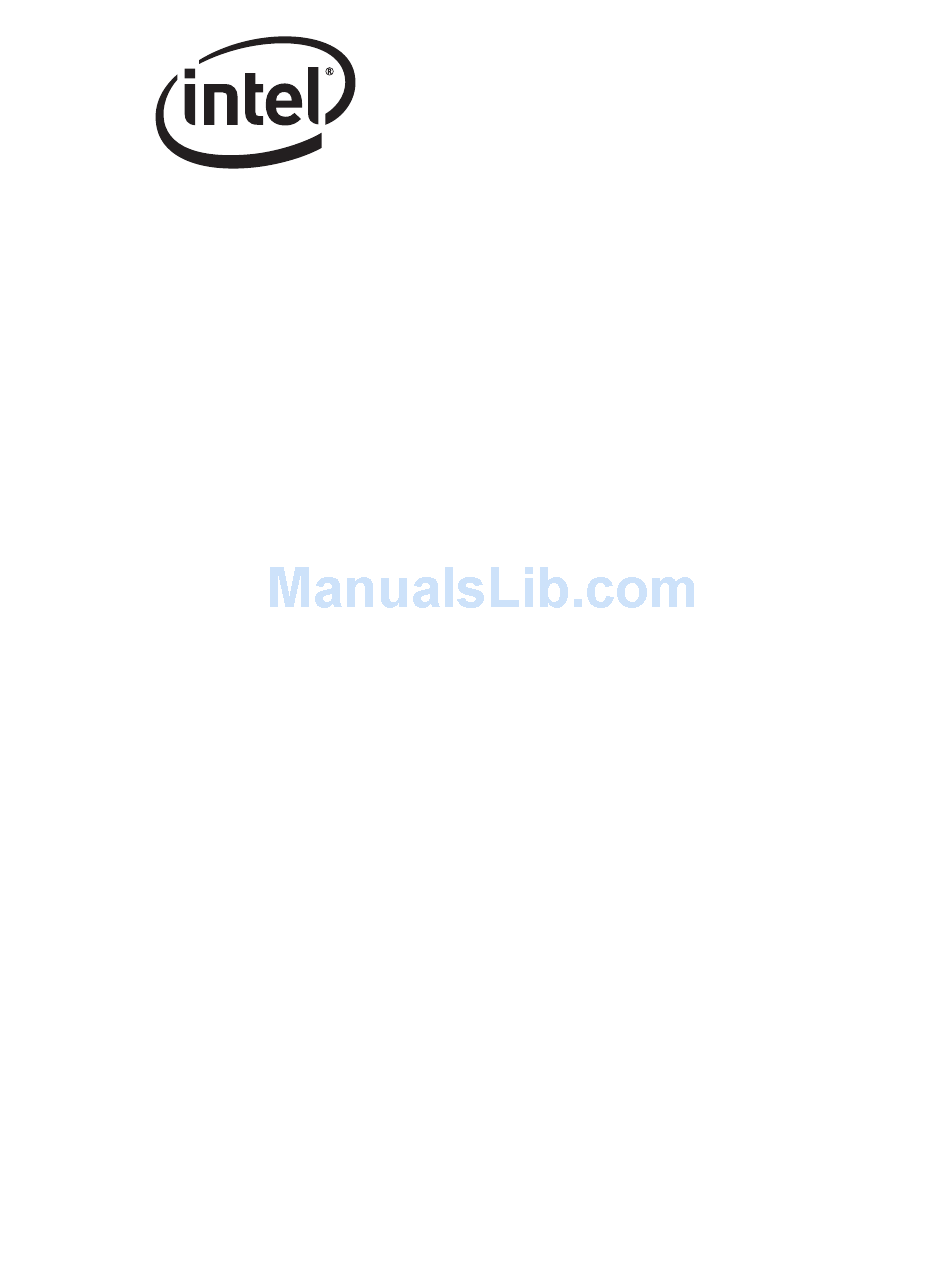

  • Page 1 Release Date: February 2007 Order Number: D23994-006US The Intel ® Desktop Board D945PAW may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are documented in this Specification Update.
