Intel Desktop Board D945PVS Product Guide

Input/Output (I/O) Controller

The super I/O controller features the following:
•
Low pin count (LPC) interface
•
One serial port
•
One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port
(EPP) support
•
Serial IRQ interface compatible with serialized IRQ support for PCI systems
•
PS/2-style mouse and keyboard interfaces
•
Interface for one 1.2 MB or 1.44 MB diskette drive
•
Intelligent power management, including a programmable wake up event interface
•
PCI power management support

LAN Subsystem

The LAN, with the Intel 82801GR (ICH7R), provides a Fast PCI LAN subsystem. The LAN
subsystem provides the following functions:
•
Support for Intel 82573V or Intel 82574V 10/100/1000 Gigabit Ethernet LAN
•
Support for RJ-45 connector with status indicator LEDs
•
Configurable EEPROM that contains the MAC address

LAN Subsystem Software

For LAN software and drivers, refer to the D945PVS link on Intel's World Wide Web site at:
http://support.intel.com/support/motherboards/desktop

RJ-45 LAN Connector LEDs

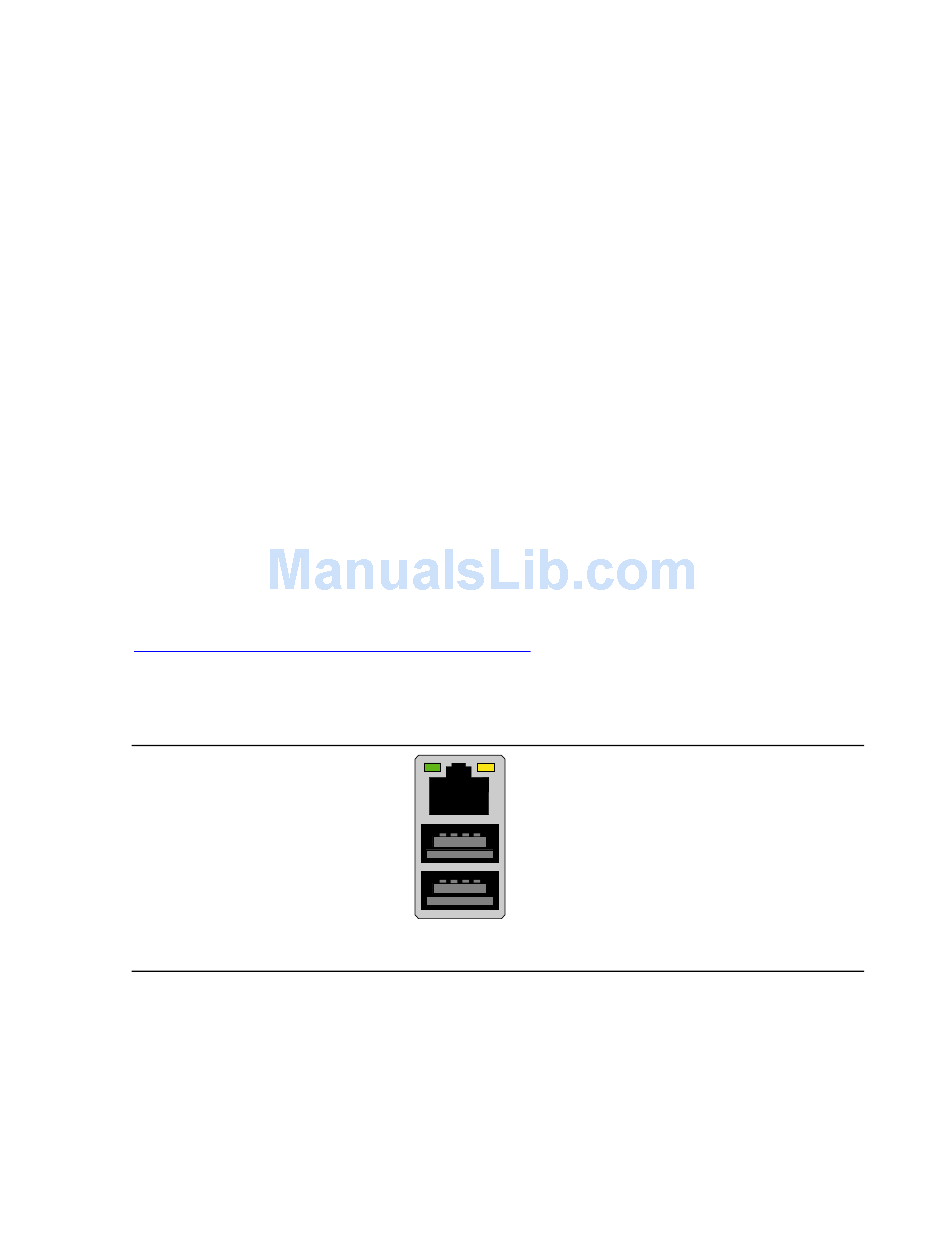

Two LEDs are built into the RJ-45 LAN port located on the back panel (see Figure 2).
16
OM17386
Figure 2. LAN Port LED Locations
