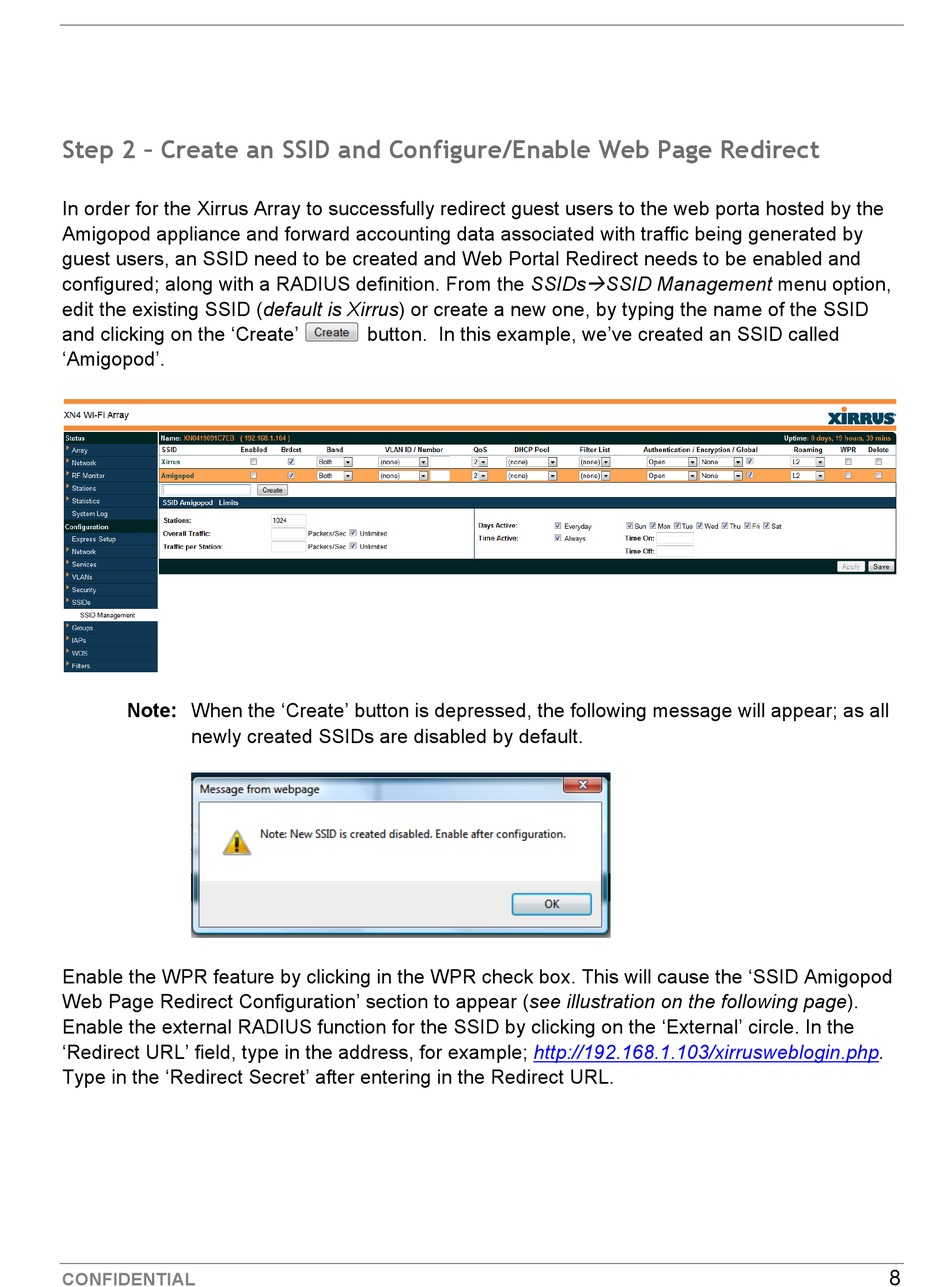

Step 2 – Create an SSID and Configure/Enable Web Page Redirect

In order for the Xirrus Array to successfully redirect guest users to the web porta hosted by the

Amigopod appliance and forward accounting data associated with traffic being generated by

guest users, an SSID need to be created and Web Portal Redirect needs to be enabled and

configured; along with a RADIUS definition. From the SSIDs  SSID Management menu option,

edit the existing SSID (default is Xirrus) or create a new one, by typing the name of the SSID

and clicking on the 'Create'

button. In this example, we've created an SSID called

'Amigopod'.

Note: When the 'Create' button is depressed, the following message will appear; as all

newly created SSIDs are disabled by default.

Enable the WPR feature by clicking in the WPR check box. This will cause the 'SSID Amigopod

Web Page Redirect Configuration' section to appear (see illustration on the following page).

Enable the external RADIUS function for the SSID by clicking on the 'External' circle. In the

'Redirect URL' field, type in the address, for example; http://192.168.1.103/xirrusweblogin.php.

Type in the 'Redirect Secret' after entering in the Redirect URL.
