amigopod and colubris integration
amigopod

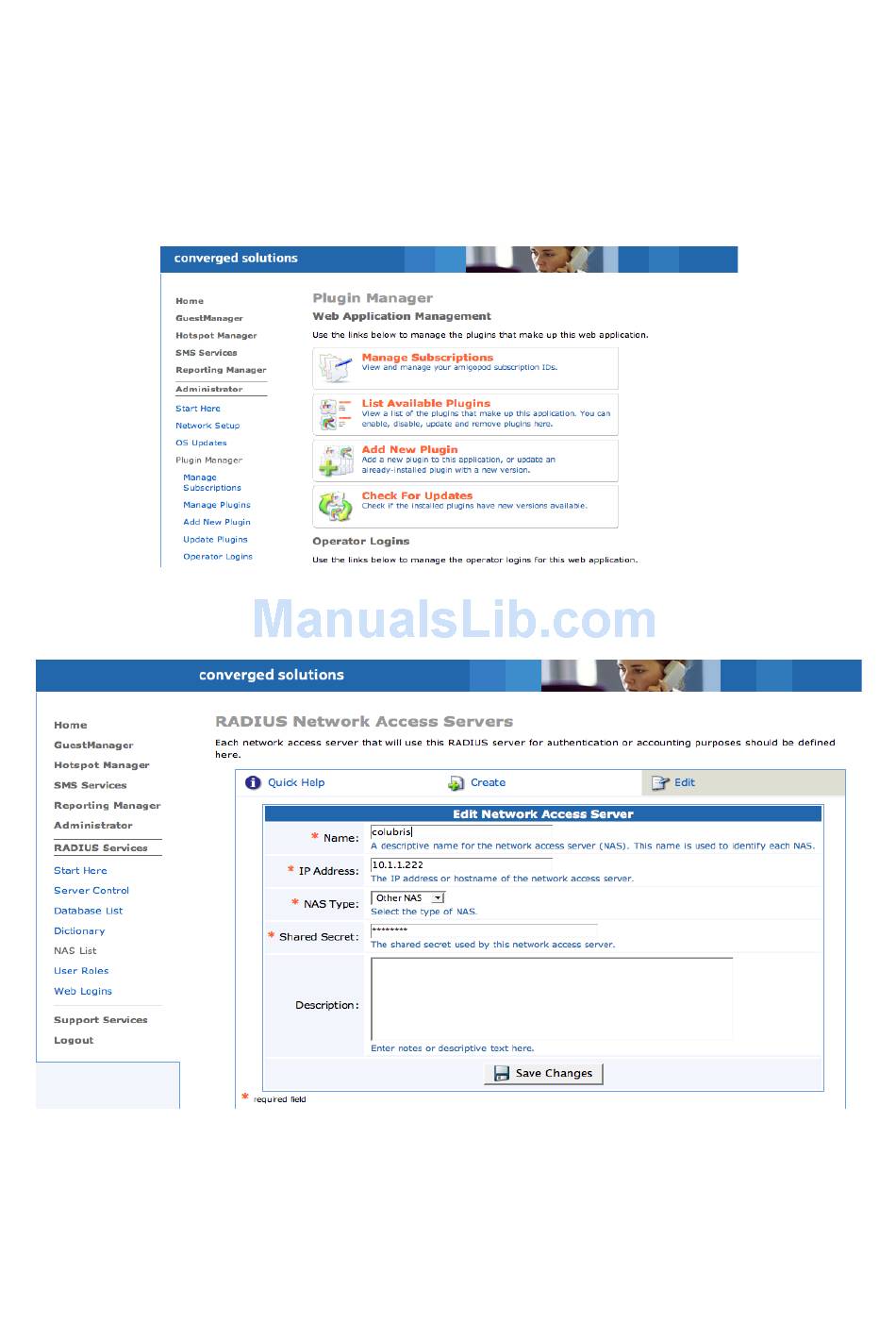

1. Ensure that you have the latest version of amigopod software by navigating to the plugin manager
from the administrator menu. Click on check for updates and install any new updates
2. Navigate to Radius services, NAS devices and add the IP address of your colubris gateway and
enter a shared secret. Make sure after you save that you click to restart the radius server
In this example we will use the following Ip addresses
amigopod: 10.1.1.204
colubris: 10.1.1.222
3. Click on user roles and delete all of the existing roles (guest, contractor, employee)

Advertisement

loading

Related Manuals for AMIGOPOD PowerConnect W Clearpass 100 Software

Summary of Contents for AMIGOPOD PowerConnect W Clearpass 100 Software

  • Page 1 amigopod and colubris integration amigopod 1. Ensure that you have the latest version of amigopod software by navigating to the plugin manager from the administrator menu. Click on check for updates and install any new updates 2. Navigate to Radius services, NAS devices and add the IP address of your colubris gateway and enter a shared secret.
  • Page 2 4. Now click on Create Role, and fill in the following parameters which will define the generic user access policies. In this example we will create a single guest policy which allows http and SSL traffic Note that you will have to add the attribute values one by one from the following dictionaries Standard Radius Dictionary: Attribute Name Value...
  • Page 3 6. Now we need to create a colubris administrative user in amigopod with the role ColubrisService that was created earlier Note that you should change the password and set the exiration time to 'Never' by editing the account once you have created it. This can be done by clicking on 'List Accounts' from guest manager and editing the colubris@amigopod.com account.
  • Page 4 Colubris Configuration: 1. You need to create a radius profile. Under Security-Radius, create a new Radius profile. Put in the IP address of the amigopod and the same shared secret that you used when defining the NAS earlier. Set the authentication method to 'CHAP' and leave all other settings as default Under 'Public Access->Attributes' select the amigopod radius profile you created, and put in the username and password for the colubris@amigopod.com...
  • Page 5 Testing: You are now complete with the setup and are ready to create visitor accounts on amigopod You should now be able to log in through the colubris captive portal, enter your username and password and be authenticated into a guest role that only allows HTTP and SSL traffic...

  • Page 6: Captive Portal Configuration

    Captive Portal Configuration 1. amigopod can be configured to host the captive portal, providing a consistant look and feel utilising available amigopod skins. This is done very simply on colubris by configuring additional attributes In this example, the amigopod IP address is 10.1.1.204 and the number 1 corresponds to web login page number 1 to be used on amigopod (use 1 for the default amigopod skin) Attribute Name Value (format = http://IP_ADDRESS/weblogin.php/#...
  • Page 7 3. You can configure the general look and feel of the captive portal using any of the installed skins for the basic look and feel. Additionally yu can cofigure a custom header, footer and custom visitor login messages...
