Amigopod and ArubaOS Integration

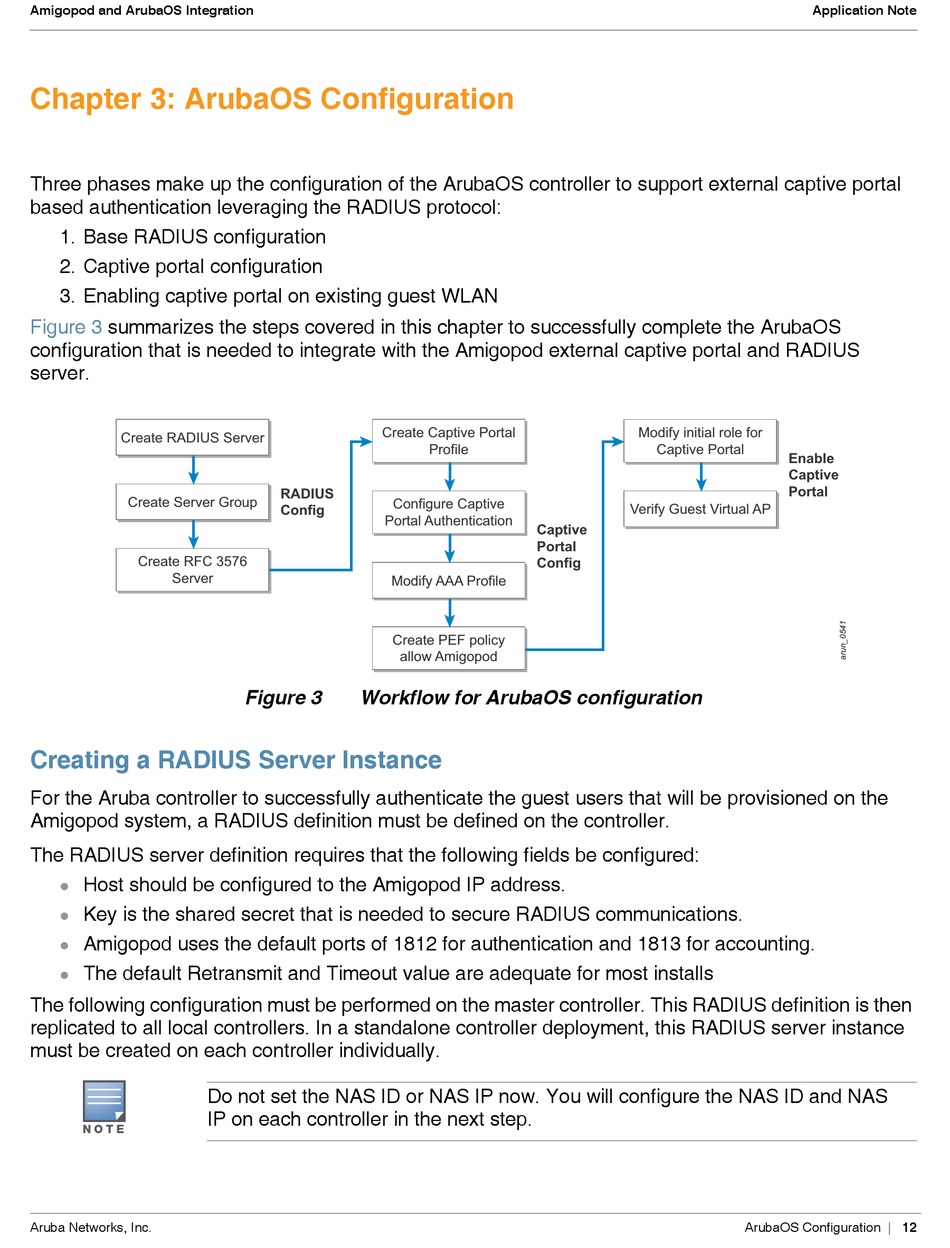

Chapter 3: ArubaOS Configuration

Three phases make up the configuration of the ArubaOS controller to support external captive portal
based authentication leveraging the RADIUS protocol:
1. Base RADIUS configuration
2. Captive portal configuration
3. Enabling captive portal on existing guest WLAN
Figure 3 summarizes the steps covered in this chapter to successfully complete the ArubaOS
configuration that is needed to integrate with the Amigopod external captive portal and RADIUS
server.
Create RADIUS Server
Create Server Group
Create RFC 3576
Server

Creating a RADIUS Server Instance

For the Aruba controller to successfully authenticate the guest users that will be provisioned on the
Amigopod system, a RADIUS definition must be defined on the controller.
The RADIUS server definition requires that the following fields be configured:
Host should be configured to the Amigopod IP address.

Key is the shared secret that is needed to secure RADIUS communications.

Amigopod uses the default ports of 1812 for authentication and 1813 for accounting.

The default Retransmit and Timeout value are adequate for most installs

The following configuration must be performed on the master controller. This RADIUS definition is then
replicated to all local controllers. In a standalone controller deployment, this RADIUS server instance
must be created on each controller individually.
Do not set the NAS ID or NAS IP now. You will configure the NAS ID and NAS
IP on each controller in the next step.
N O T E
Aruba Networks, Inc.
Create Captive Portal
RADIUS
Configure Captive
Config
Portal Authentication
Modify AAA Profile
Create PEF policy
allow Amigopod
Figure 3 Workflow for ArubaOS configuration
Profile
Captive
Portal
Config
Modify initial role for
Captive Portal
Enable
Captive
Portal
Verify Guest Virtual AP
ArubaOS Configuration
Application Note
| 12
