Page 1: Operating Instructions

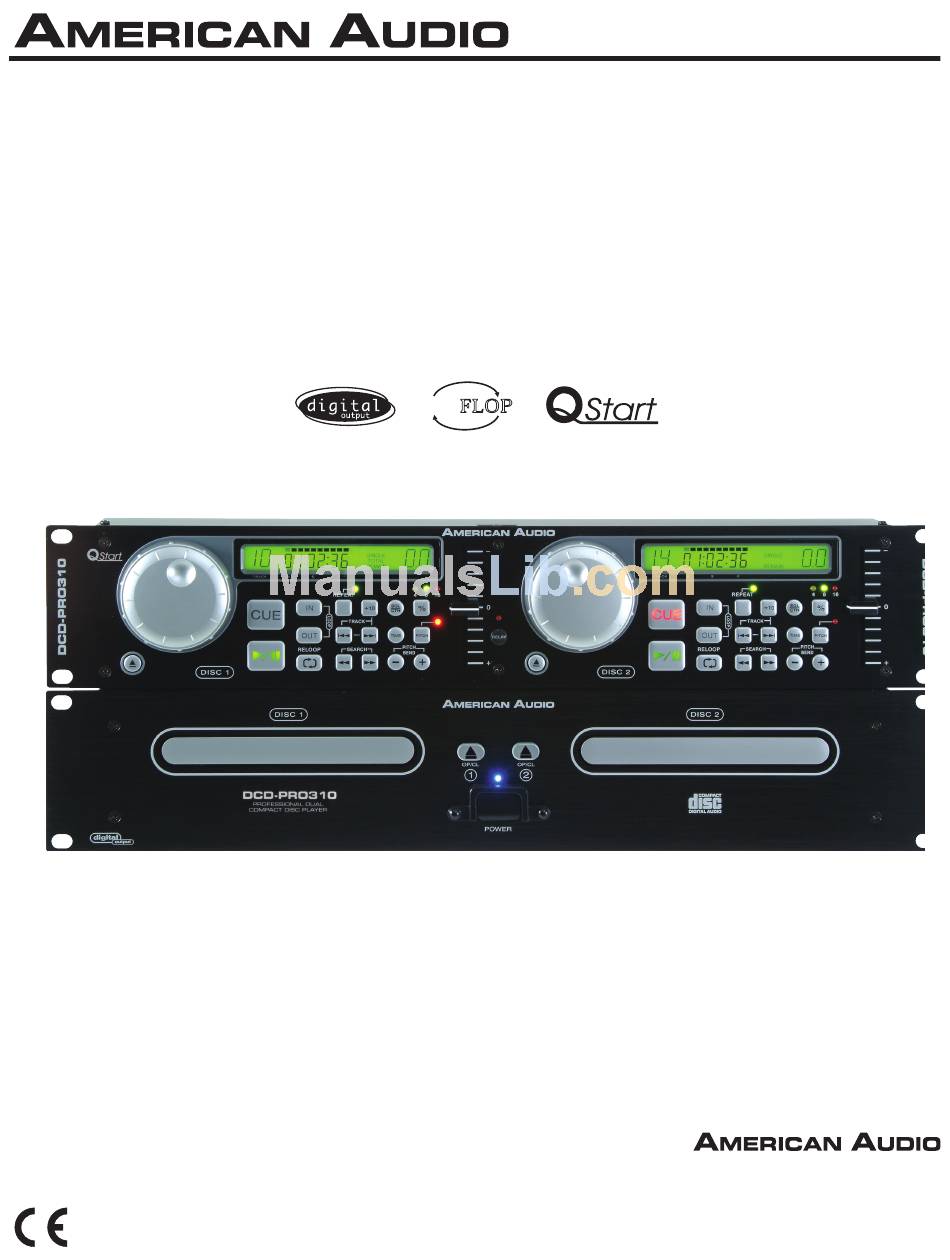

Operating Instructions DCD-PRO310 Professional Dual CD Player FLIPFLOP 4295 Charter Street Los Angeles Ca. 90058 www.americandj.com 1/05... -
Page 2: Table Of Contents
Please Note: All specifications and improvements to and in the design of this unit and this manuals are subject to change at any time without any prior written or published noticed. For service parts visit http://parts.americandj.com American Audio © - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 2 ®... -
Page 3: Electrical Safety Precautions
– Connect the unit into an electrical outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/ TV technician for help. - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 3 ®... -
Page 4: Important Safety Instructions
OVERLOADING — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 4 ® The exclamation point within an equilateral triangle is... -
Page 5: Product Information
Please contact American Audio customer support at (800) 322-6337 for a R.A. number. - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 5 ® LINE VOLTAGE SELECTION Voltage Line Selector Switch WARRANTY INFORMATION ®... -
Page 6: Customer Support
Be sure main power is connected last to prevent any electrical damage. AUDIO CONNECTIONS: Use the included RCA cable to connect the DCD-PRO310™ outputs to the line inputs of a mixer. Never connect a CD player's output to a mixers "phono" inputs. -
Page 7: Features
Start” control. Connect your DCD-PRO310 as described in the set-up section of this manual. After set-up is completed, insert CD's in to both drives. By moving the mixer’s crossfader from left to right you can start and pause your DCD-PRO310 playback functions. -
Page 8: Remote Unit
American Audio © SINGLE TOTAL REMAIN S G L C TN T IME P ITC H - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 8 ® SINGLE TOTAL REMAIN TRACK S G L C T N T IME P IT C H... -
Page 9: Track Buttons
+/-16%. The "+" and "-" pitch bend buttons have a maximum range of 16%. 14. PITCH BEND BUTTONS - (-) PITCH BEND - The (-) pitch bend function creates a momentary “Slow Down” in the CD’s pitch American Audio © - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 9 ®... -
Page 10: Search Buttons
21. CHANNEL 1 CONTROLLER JACK - Connect the supplied mini-plug from the CUE jack on the rear of your CD unit to the CONTROL out jack of a compatible American Audio mixer. This will enable the CD "Q-Start" function. This feature is only available on American Audio or American DJ “Q”... -
Page 11: Player Unit
28. DRIVE 1 AUDIO OUT R & L - These jacks send a left and right analog mono output signal. Use these jacks to send standard audio to a mixer or receiver. The red colored jack represents the right American Audio © - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 11 ® Figure 5 Figure 6... - Page 12 34. DRIVE 2 DIGITAL OUT - This jack sends a digital stereo out signal. Use this connection to cre- ate near perfect copies of your disc to a Mini disc, CD-R, or any other recording device with a digital input. American Audio - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 12 © ®...
-
Page 13: Liquid Crystal Display
43. TRACK INDICATOR - This double digit indicator details a current track. The number displayed in the track indicator is a direct reference to a track being selected for programming or a track in play, pause, or cue mode. American Audio © - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 13 ® SINGLE TOTAL REMAIN... -
Page 14: Basic Operation
OPEN/CLOSE BUTTON (1). 2. LOADING DISCS The DCD-PRO310 can play both 3 inch (8 cm) and 5 inch (12 cm) compact discs (CD’s). Odd shaped and oval CD’s are not compatible. When loading a CD into the unit always hold the disc by its' edges and place it in the disc tray. Never touch the signal surface (the glossy side). -
Page 15: Adjusting Time Display
Using the Pitch Slider (3): T IME P IT C H SLIDER (3) slide the slider up and down. Down will increase the pitch and up will decrease the pitch. - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 15 ® PROG. SINGLE TOTAL... -
Page 16: Jog Wheel
T IME P IT C H will slow your track pitch. The speed you rotate the JOG WHEEL (1) will determine pitch bend percentage (%). Figure 15 - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 16 ® PROG. SINGLE TOTAL REMAIN... -
Page 17: Creating And Playing A Loop
IN AND LOOP OUT BUTTON LEDs will stay lit indicating a Loop is playing. Press the LOOP T IME P IT C H OUT BUTTON again to cancel the Loop. - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 17 ® TRACK PROG. SINGLE... -
Page 18: Flip-Flop' (Relay) Connection And Set Up
This feature is a kind of “auto pilot. " “Flip-Flop™” mode can only function with the both drives of the DCD-PRO310. The "Flip-Flop" function can work with the player connected to a mixer, but it will only work with an American Audio® or American DJ® “Q” Start mixer. Also, the "Flip-Flop" function can work with the cd player connected directly to speakers, without the mixer. -
Page 19: Relay (Flip-Flop) Connections
TRIM OUTPUT PROG. SINGLE TOTAL REMAIN TRACK S G L C T N T IME P IT C H - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 19 ® PROG. SINGLE TOTAL REMAIN TRACK S G L C T N TIME... -
Page 20: Shut Down Procedures
Areas subject to accumulation of dust or high humidity. c) Areas affected by heat from indoor heaters, etc. American Audio © - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 20 ® Switch off the power after the disc holder has been closed... -
Page 21: Year Limited Warranty
The sole responsibility of American Audio this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American Audio manufactured after January 1, 1990, and bear identifying marks to that effect. -
Page 22: Specifications
LIMITS CONDITION 4 sec 6 sec 2 sec LIMIT 0.7mm 0.6mm 65um 140um 0.5mm - www.americanaudio.us - DCD-PRO310™ Instruction Manual Page 22 ® CONDITION 1KHz,0dB 20Hz-20KHz,0dB 16KHz,-20dB 1KHz,0dB 1KHz,0dB 1KHz.0dB Play next track Track 1 ->Track 20 / Track 20 ->Track 1... - Page 23 ©American Audio® A Division of the American DJ® Group of Companies American Audio® World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.americanaudio.us E-mail: info@AmericanAudio.us...
