Page 1: Operating Instructions

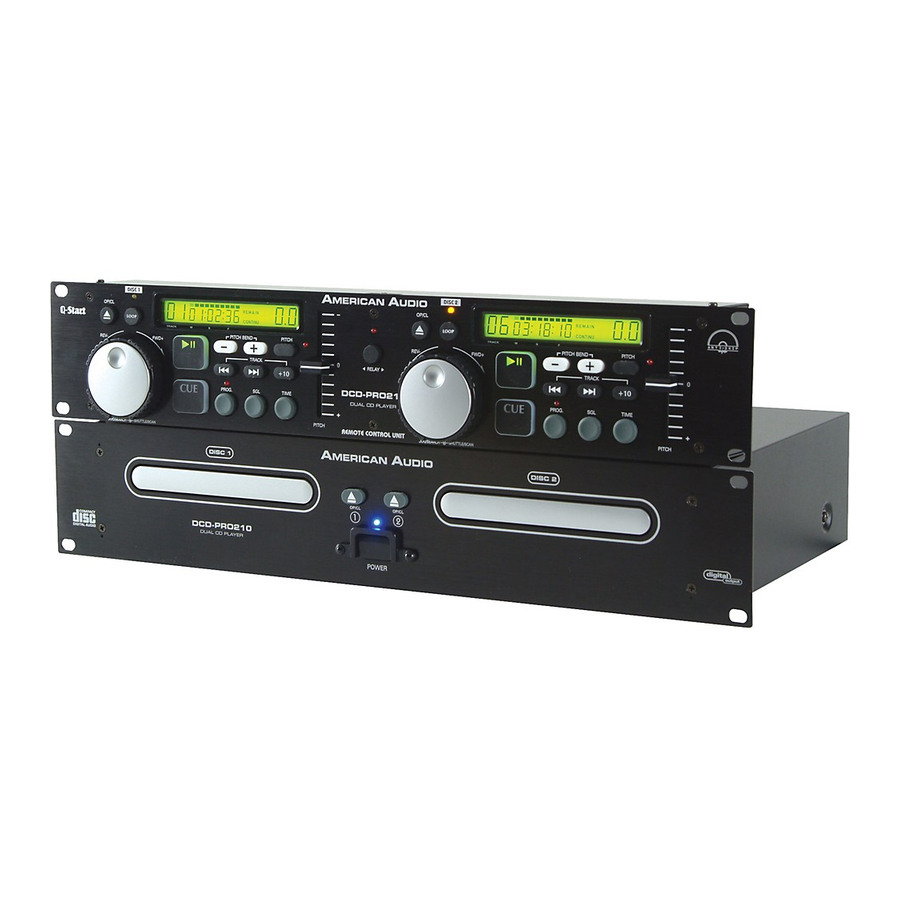

Operating Instructions DCD-PRO210 Professional Dual CD Player FLIPFLOP 4295 Charter Street Los Angeles Ca. 90058 www.americandj.com 12/03... -
Page 2: Table Of Contents
Please Note: All specifications and improvements to and in the design of this unit and this manuals are subject to change at any time without any prior written or published noticed. For service parts visit http://parts.americandj.com American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 2 © ®... -
Page 3: Cautions Regarding Handling
BE ADJUSTED OR REPAIRED BY ANYONE receiver is connected. EXCEPT PROPERLY QUALIFIED SERVICE – Consult the dealer or an experienced radio/ PERSONNEL. TV technician for help. American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 3 © ®... -
Page 4: Electrical Precautions
(NEC SECTION 810-21) used for a long period of time. EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM Fig. A (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 4 © ®... -
Page 5: Product Information
Please contact American Audio ® up lens, be sure to follow extreme caution customer support at (800) 322-6337 for a R.A. when using these types of cleaners. number. American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 5 © ®... -
Page 6: Customer Support
Be sure main power is connected last to prevent any electrical damage. AUDIO CONNECTIONS: Use the included RCA cable to connect the DCD-PRO210™ outputs to the line inputs of a mixer. Never connect a CD player's output to a mixers "phono" inputs. -
Page 7: Features
Start” control. Connect your DCD-PRO210 as described in the set-up section of this manual. After set-up is completed, insert CD's in to both drives. By moving the mixer’s crossfader from left to right you can start and pause your DCD-PRO210 playback functions. -
Page 8: Remote Unit
This display is viewable at several comfortable angles as described on page 6. The LCD icons will be described in the next section. American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 8 © ®... - Page 9 This function also operates in PROGRAM mode. In program mode the continuous function will play all tracks in a American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 9 © ®...
- Page 10 CD unit to the CONTROL out jack of a compatible American Audio or American DJ ® ® mixer. This will enable the CD "Q-Start" function. This feature is only available on American Audio ® or American DJ “Q” series mixers.
- Page 11 27. DRIVE 1 AUDIO OUT R & L - These jacks send a left and right analog mono output signal. Use these jacks to send standard audio to a mixer or receiver. The red colored jack represents the right American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 11 © ®...
-
Page 12: Player Unit
34. DRIVE 2 REMOTE JACK - Connect the supplied 8 pin cable from this jack to the remote control's channel 2 remote connector. This will allow you to control the player functions with the remote unit. American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 12 © ®... -
Page 13: Liquid Crystal Display
44. TRACK INDICATOR - This double digit indicator details a current track. The number displayed in the track indicator is a direct reference to a track being selected for programming or a track in play, pause, or cue mode. American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 13 © ®... -
Page 14: Basic Operation
2. LOADING DISCS 3 in. / 8cm disc The DCD-PRO210 can play both 3 inch (8 cm) and 5 inch (12 cm) compact discs (CD’s). Odd shaped and oval CD’s are not compatible. When loading a CD into the unit always hold the disc by its' edges and place it in the disc tray. -
Page 15: Adjusting Time Display
Using the Pitch Slider (5): To use the PITCH SLIDER (5) slide the slider up and down. Down will ��� increase the pitch and up will decrease the pitch. Figure 11 American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 15 © ®... -
Page 16: Pitch Bending
The speed you rotate the JOG WHEEL (17) will determine pitch bend percent- age (%). Figure 14 American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 16 © ®... -
Page 17: Programming And Program Play
9) To cancel and clear the program press and hold down the PROG Button(15) for more than two seconds, until the LED light turns off. Figure 18 American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 17 © ®... -
Page 18: Relay (Flip-Flop)
This feature is a kind of “auto pilot. " “Flip-Flop ” mode can only function with the both drives of ™ the DCD-PRO210. The “Flip-Flop ” function may be used with or without an American Audio ™ ® American DJ “Q”... -
Page 19: Shut Down Procedures
Areas exposed to direct sunlight for a considerable time. b) Areas subject to accumulation of dust or high humidity. c) Areas affected by heat from indoor heaters, etc. American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 19 © ®... -
Page 20: Warranty
® tive parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American Audio under ® this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American Audio . -
Page 21: Specifications
System Object lens drive system optical pick-up Object lens drive system 2 dimensional parallel drive Tracking detection 3 spot beam detection Optical source Semiconductor laser Wave length 780nm American Audio - www.AmericanAudio.us - DCD-PRO210™ Instruction Manual Page 21 © ®... - Page 22 ©American Audio® A Division of the American DJ® Group of Companies American Audio® World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.AmericanAudio.us E-mail: info@AmericanAudio.us...
