Page 1: Operating Instructions

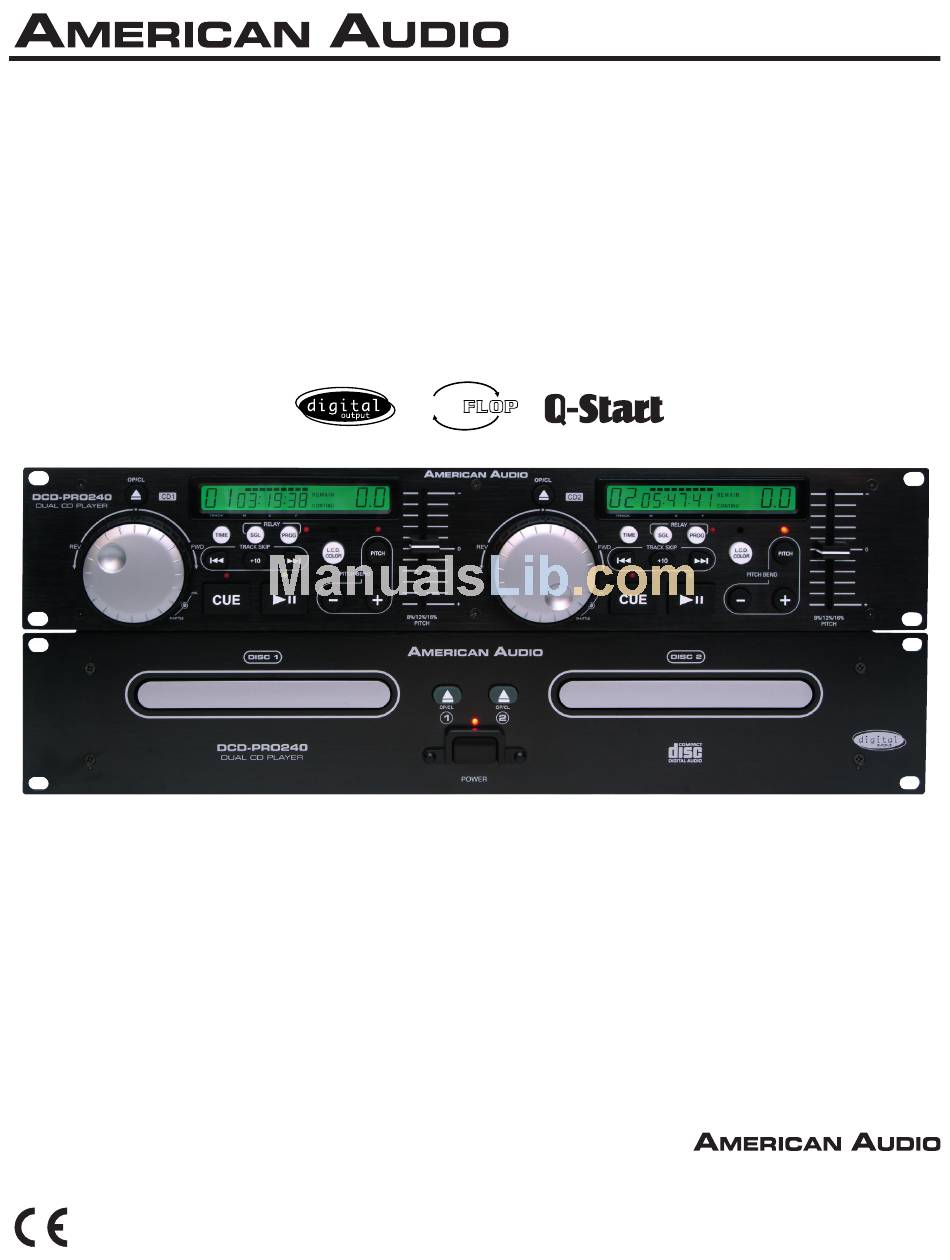

Operating Instructions DCD-PRO240 Professional Dual CD Player FLIPFLOP 4295 Charter Street Los Angeles Ca. 90058 www.americandj.com 6/03... -
Page 2: Table Of Contents
Please Note: All specifications and improvements to and in the design of this unit and this manuals are subject to change at any time without any prior written or published noticed. For service parts visit http://parts.americandj.com American Audio © - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 2 ®... -
Page 3: Cautions Regarding Handling
– Connect the unit into an electrical outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/ TV technician for help. - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 3 ®... -
Page 4: Electrical Precautions
OVERLOADING — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 4 ® The exclamation point within an equilateral triangle is... -
Page 5: Product Information
Please contact American Audio customer support at (800) 322-6337 for a R.A. number. - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 5 ® LINE VOLTAGE SELECTION SCRATCH BOX DIGITAL... -
Page 6: Customer Support
Be sure main power is connected last to prevent any electrical damage. AUDIO CONNECTIONS: Use the included RCA cable to connect the DCD-PRO240™ outputs to the line inputs of a mixer. Never connect a CD player's output to a mixers "phono" inputs. -
Page 7: Features
Start” control. Connect your DCD-PRO240 as described in the set-up section of this manual. After set-up is completed, insert CD's in to both drives. By moving the mixer’s crossfader from left to right you can start and pause your DCD-PRO240 playback functions. -
Page 8: Remote Unit
This function also oper- ates in PROGRAM mode. In program mode the continuous function will play all tracks in a program, American Audio © - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 8 ® Figure 3 Figure 4... - Page 9 While in play mode the green play LED will glow, and while in pause mode the green play LED will flash. American Audio - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 9 © ®...
- Page 10 17. CHANNEL 1 CONTROLLER JACK - Connect the supplied mini-plug from the CUE jack on the rear of your CD unit to the CONTROL out jack of a compatible American Audio mixer. This will enable the CD "Q-Start" function. This feature is only available on American Audio or American DJ “Q”...
- Page 11 26. DRIVE 1 AUDIO OUT R & L - These jacks send a left and right analog mono output signal. Use these jacks to send standard audio to a mixer or receiver. The red colored jack represents the right American Audio © - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 11 ® Figure 5 Figure 6...
-
Page 12: Player Unit
33. DRIVE 2 REMOTE JACK - Connect the supplied 8 pin cable from this jack to the remote control's channel 2 remote connector. This will allow you to control the player functions with the remote unit. American Audio - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 12 © ®... -
Page 13: Liquid Crystal Display
43. TRACK INDICATOR - This double digit indicator details a current track. The number displayed in the track indicator is a direct reference to a track being selected for programming or a track in play, pause, or cue mode. American Audio - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 13 © ®... -
Page 14: Basic Operation
Stop playback, then press the OPEN/CLOSE BUTTON (1). 2. LOADING DISCS The DCD-PRO240 can play both 3 inch (8 cm) and 5 inch (12 cm) compact discs (CD’s). Odd shaped and oval CD’s are not compatible. When loading a CD into the unit always hold the disc by its' edges and place it in the disc tray. -
Page 15: Adjusting Time Display
If the pitch function is not activated neither the PITCH SLIDER (11) nor the PITCH BEND BUTTONS (12 & 13) will not function. To use the PITCH SLIDER - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 15 ® This bar will To activate the... -
Page 16: Pitch Bending
The speed you rotate the JOG WHEEL (16) will determine pitch bend percentage (%). - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 16 ® it’s previous speed. -
Page 17: Programming And Program Play
9) To cancel and clear the program press and hold down the PROG Button(5) for more than two seconds, until the LED light turns off. - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 17 ® Figure 14... -
Page 18: Flip-Flop
American Audio © ” mode can only function with the both drives of ™ ” function may be used with or without an American Audio ™ ” you can have one disc drive begin playback when ™ ” single tracks, the entire disc, a combination of the two, or you ™... -
Page 19: Handling Compact Disc
Areas exposed to direct sunlight for a considerable time. b) Areas subject to accumulation of dust or high humidity. c) Areas affected by heat from indoor heaters, etc. American Audio © - www.AmericanAudio.us - DCD-PRO240™ Instruction Manual Page 19 ®... -
Page 20: Warranty
The sole responsibility of American Audio this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American Audio manufactured after January 1, 1990, and bear identifying marks to that effect. -
Page 21: Specifications
