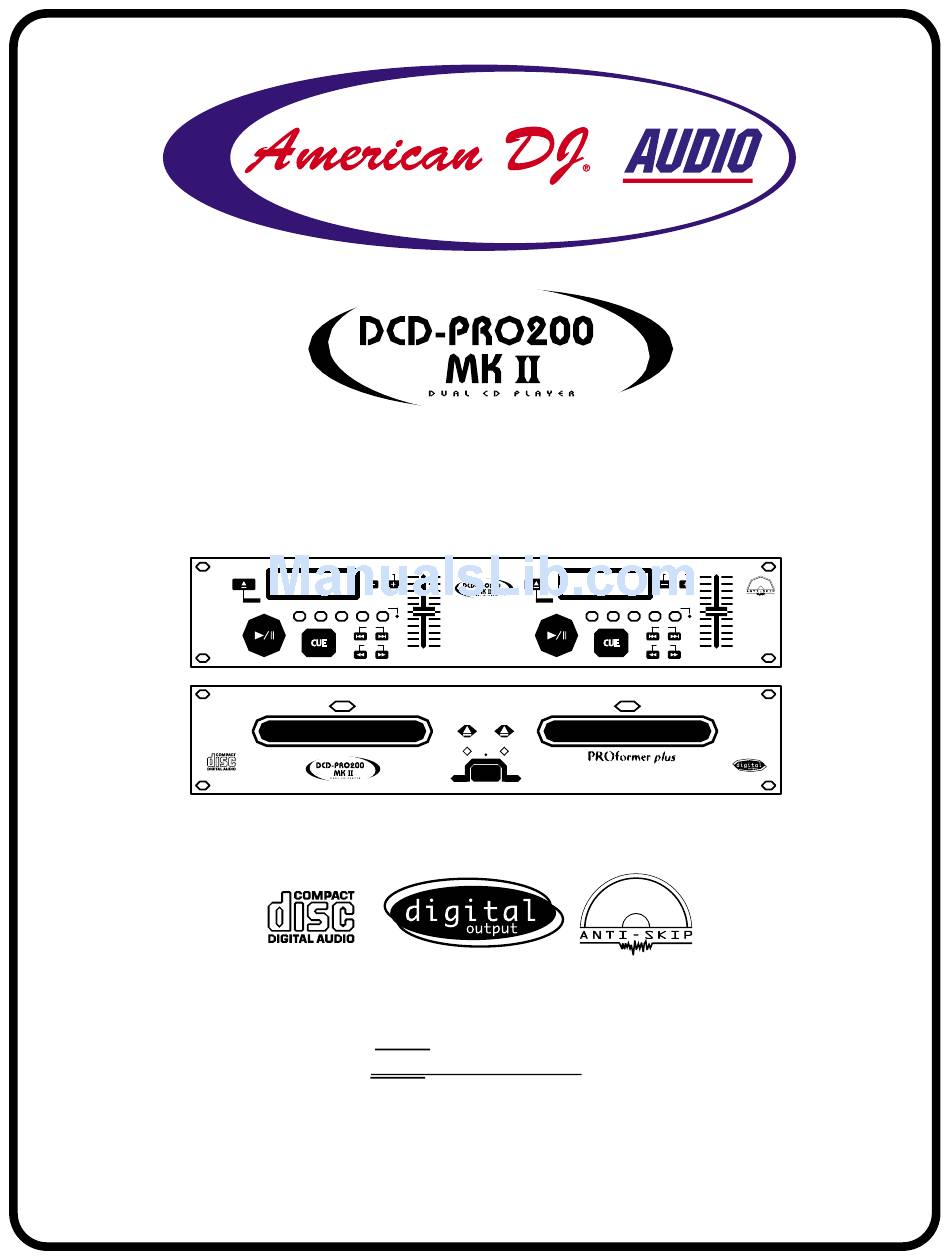

American DJ ® OP/CL OP/CL PITCH BEND PITCH BEND 88:88.8 88:88.8 DISC 1 DISC 1 TIME PROG. LOOP PITCH TIME PROG. LOOP PITCH PLAY PLAY SKIP SKIP PAUSE SEARCH PAUSE SEARCH REMOTE CONTOL UNIT PITCH PITCH American DJ ® DISC 1 DISC 2 OP/CL OP/CL...
CONTENTS SPECIFICATIONS..........................2 IMPORTANT SAFETY ITEMS.......................3 SAFETY INSTRUCTIONS........................4 GENERAL NOTES ON USE........................5 MAIN FEATURES..........................5-6 PREPARATIONS...........................7 NAMES AND FUNCTIONS.........................8-9 BASIC OPERATIONS........................9-13 BEFORE SWITCHING OFF THE POWER..................13 COMPACT DISCS..........................13 SPECIFICATIONS GENERAL Type: Twin mechanism compact disc player with wired controller. Disc Type: Standard compact discs (5 in / 12 cm and 3 in / 8 cm discs) Dimensions: Player Unit: 18 29/32”...
IMPORTANT SAFETY ITEMS FOR U.S.A. & NOTE: CANADA MODEL ONLY This CD player uses a semiconductor laser. It is recommended for use in a room at the following WARNING: temperature: 41˚F - 95˚F / 5˚C - 35˚C TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS CD PLAYER TO LABELS (for U.S.A.
SAFETY INSTRUCTIONS I. Read Instructions - All the safety and operating 10. Power-Cord Protection - Power-supply cords instructions should be read before the appliance should be routed so that they are not likely is operated. to be walked on or pinched by items placed upon or against them, paying particular 2.
GENERAL NOTES ON USE • Avoid high temperatures. • Allow for sufficient heat dispersion when installed on a rack. • Handle the power cord carefully. • Hold the plug when unplugging the cord. • Keep the set free from moisture, water, and dust. •...
Page 6
FUNCTIONS & CONTROLS CONT. REMOTE UNIT FRONT PANEL FIGURE 3 6 7 8 9 10 American DJ ® OP/CL OP/CL PITCH BEND PITCH BEND 88:88.8 88:88.8 DISC 1 DISC 1 TIME PROG. LOOP PITCH TIME PROG. LOOP PITCH PLAY PLAY SKIP SKIP PAUSE...
Page 7
FUNCTIONS & CONTROLS CONT. A. DRIVE TRANSPORT (Figures 1 & 2) Remember, that this is a momentary function 1) POWER (Power On/Off Button) - When the when you remove your finger from the pitch button POWER Button is pressed, the power turns the BPM’s will automatically return to SLIDERS on, press again to turn power off.
FUNCTIONS & CONTROLS CONT. 17) FORWARD SKIP BUTTON - Use this button to pickup within the current track. skip to the next track on the CD. 7) REMAIN INDICATOR - It indicates that the time 18) PLAYER 2 REMOTE CONNECTOR - Connect shown on the display is the remaining time of the to player 2 connector on transport assembly.
PREPARATIONS CONT. 3. Connections Turn off the POWER switch. Connect the RCA pin cables to the inputs on your mixer. Connect the control cables to the REMOTE connector on the main unit. CAUTION: Be sure to use the supplied control cables. Using another type of cable may result in damage. Be sure the power is off when connecting the control cables.
Page 10
BASIC OPERATION (CONT.) 4. Starting Playback • Press the PLAY/PAUSE button during the pause or cue to start playback. • The PLAY indicator lights when playback starts. • The point at which playback starts is automatically stored in the memory as the cue point. The pickup then returns to the cue point (the point at which playback started) when the CUE button is pressed.
Page 11
BASIC OPERATION (CONT.) 7. Cuing • ”Cueing” is the action of preparing for playback • Press CUE button, the player will enter cue mode. The playback returns to the cue point and enter pause condition, the cue and pause indicator light up. When PLAY/PAUSE button is pressed, play starts from the cue point.
Page 12
BASIC OPERATION (CONT.) 9. Scanning (Fast forward/Fast backward) • Scanning is a function for moving quickly forward or backward while the SCAN/SEARCH buttons are pressed to let you find a desired play point quickly. • This unit supports 3 different speeds, the scanning speed depends on how long you hold the button. If you hold the SCAN/SEARCH button for about 3 seconds, the scanning speed will change.
BASIC OPERATION (CONT.) 13. Loop Play • Press the LOOP button to set the loop start point A, the LOOP indicator will flash on the LCD. • Press the LOOP button again to set the loop end point B. After the B point is set the playback will enter the loop play from A to B repeatedly.
