  • Page 1: Xerox Documate

    OneTouch 4.6 May 2013 05-0796-100 Xerox DocuMate 3115 ® ® User’s Guide...
  • Page 2 Design © 2013 Xerox Corporation. All rights reserved. Xerox , Xerox and Design and DocuMate are registered trademarks of Xerox Corporation in the United States and/or other countries. ® Content © 2013 Visioneer, Inc. All rights reserved. The Visioneer brand name and OneTouch logo are registered trademarks of Visioneer, Inc.

  • Page 3: Table Of Contents

    Detach or Attach the Xerox DocuMate 3115 ........
  • Page 4 Text Documents Properties ............104 ® ® Xerox DocuMate 3115...
  • Page 5 Document Settings ..............165 ® ® Xerox DocuMate 3115...
  • Page 6 The Xerox DocuMate 3115 Scanner Specifications ........

  • Page 7: Documate ® 3115

    Energy Star for the USA ..............217 Index ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 8 Table of Contents ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 9: Safety

    Electrical Information on page 12 • Emergency Power Off on page 14 • Maintenance Information on page 15 • Product Safety Certification on page 16 • Environmental Health and Safety Contacts on page 17 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 10: Safety Introduction

    WARNING: The safety and environment testing and performance of this product have been verified using Xerox materials only. Unauthorized alterations, which may include the addition of new functions or connection of external devices, may impact the product certification. Please contact your Xerox representative for more information.

  • Page 11: Operational Safety Information

    Your Xerox equipment and supplies have been designed and tested to meet strict safety requirements. These include safety agency examination, approval, and compliance with established environmental standards. To ensure the continued safe operation of your Xerox equipment, follow these safety guidelines at all times: Do These •...

  • Page 12: Electrical Information

    Plug the power cable directly into a correctly grounded electrical outlet. If you are not sure whether or not an outlet is correctly grounded, consult an electrician. Do not use an adapter to connect any Xerox equipment to an electrical outlet that lacks a ground connection terminal.

  • Page 13: Disconnect Device

    The power cable is the disconnect device for this equipment. It is attached to the back of the machine as a plug-in device. To remove all electrical power from the equipment, disconnect the power cable from the electrical outlet. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 14: Emergency Power Off

    A wall panel circuit breaker, fuse, or other safety device has been tripped. • Liquid is spilled into the machine. • The machine is exposed to water. • Any part of the machine is damaged. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 15: Maintenance Information

    Do not perform any maintenance procedures unless you have been trained to do them by an authorized local dealer or unless a procedure is specifically described in the user manuals. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 16: Product Safety Certification

    Product Safety Certification This product is certified by the following Agency using the Safety standards listed: Standard UL60950-1 (USA) CSA 22.2 No. 60950-1 (Canada) IEC 60950-1 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 17: Environmental Health And Safety Contacts

    Environmental Health and Safety Contacts Contact Information For more information on Environment, Health, and Safety in relation to this Xerox product and supplies, please contact the following customer help lines: USA & Canada: 1-800-828-6571 Europe: +44 1707 353 434 ®...
  • Page 18 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 19: Welcome

    22 • The Xerox DocuMate 3115 Scanner on page 23 Congratulations on purchasing your Xerox DocuMate 3115. With this scanner you can quickly scan stacks of single-sided or double-sided pages and place their electronic images on your computer. ® ®...

  • Page 20: What's In The Box

    Before starting the software installation, please check the contents of the box to make sure that all parts are included. If any items are missing or damaged, contact the dealer where you purchased the scanner. Replacement ADF Pad DocuMate 3115 Scanner Docking Station Power Cord Power Supply (Optional)

  • Page 21: System Requirements

    Color quality of 16-bit or 32-bit • Resolution set to at least 800 x 600 pixels Refer to your Windows documentation for instructions on setting the color quality and resolution for the monitor. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 22: Documentation

    Optical Character Recognition to create editable text files from the scanned documents. • —contains detailed information on using the application to Nuance PDF Converter user’s guide create and modify PDF files. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 23: The Xerox Documate 3115 Scanner

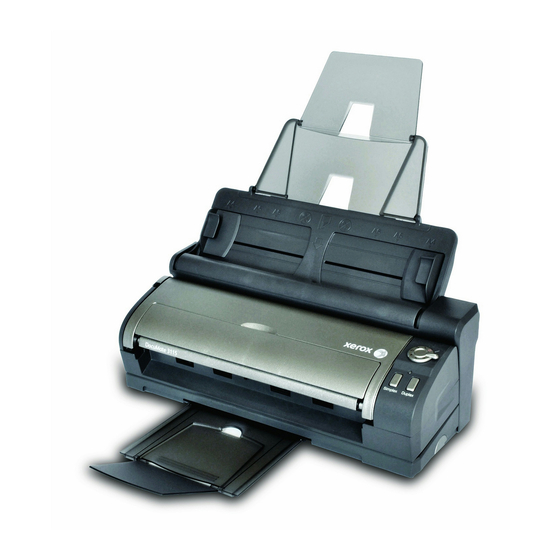

    The Xerox DocuMate 3115 Scanner Input Tray Paper Guides Front Feed Tray Output Tray Control Panel Cover Release USB Port Power Jack Input Tray—Holds a stack of documents in the scanner. Unfolds to support various paper lengths. Paper guides—Adjust to support various document widths.
  • Page 24 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 25: Scanner Setup

    Scanner Setup This chapter includes: • Unpack and Assemble the Scanner on page 26 • Connect the Scanner Power Cord on page 28 • Detach or Attach the Xerox DocuMate 3115 on page 30 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 26: Unpack And Assemble The Scanner

    Press and hold the release button on the side of the docking station. Tilt the scanner body towards the front and lift the scanner out of the Docking Station. Remove the tape and foam strip from the docking station. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 27 Detailed instructions for detaching and attaching the scanner are on page 30. Unfold the Input Tray and Extension from the paper guide. Pull the output tray away from the bottom of the Docking Station, then flip open the output tray extension. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 28: Connect The Scanner Power Cord

    ADP) included with your scanner. Connecting any other type of power supply may damage your scanner, and will void its warranty. Plug the power cord into the power supply and into a wall outlet. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 29: Connect The Scanner Power To The Computer

    Customer Service department. Please refer to the Technical Support Card, included with your scanner, for our company contact information, or visit the Parts & Accessories page for your scanner at www.xeroxscanners.com. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 30: Detach Or Attach The Xerox Documate 3115

    Detach or Attach the Xerox DocuMate 3115 The Xerox DocuMate 3115 scanner body can be removed from the Docking Station to be used as a mobile scanner. Detach the Scanner Body from the Docking Station Press and hold the release button on the side of the Docking Station.

  • Page 31: Attach The Scanner Body To The Docking Station

    Place the front of the scanner body in the front of the Docking Station. Tilt the scanner body into the Docking Station and press on the back of the scanner to lock it into the Docking Station. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 32 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 33: Installation

    • Install the Software and Connect the Scanner on page 35 • Installing Additional Applications on page 41 • View the User Guides on page 43 • Register Your Scanner on page 44 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 34: Before You Begin

    If you already have a scanner connected to your computer, it is recommended that you remove that scanner’s driver program prior to installing your Xerox scanner. You can remove these programs from the Windows Control Panel. Please refer to the user manual provided with your other scanner hardware for instructions about removing the driver and software for that unit.

  • Page 35: Install The Software And Connect The Scanner

    Double-click the icon for your DVD-ROM drive. • The Installation menu for the disc should now open. If the menu does not open: • From the list of files on the disc, double-click the file named setup.exe. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 36: Installing The Scanner Driver

    The software provided with your scanner may differ slightly from the list shown in the Note: window. Click Install now Installing the Scanner Driver The scanner driver installation will start first. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 37 The Welcome screen for the scanner driver Setup Wizard opens. Click Next On the Xerox License Agreement window, read the license agreement. If you accept the terms, select then click I Agree Next If you choose not to accept the license agreement, click .

  • Page 38: Connect The Usb Cable And Turn On The Power

    The status light comes on and flashes indicating that the scanner is receiving power. Your computer recognizes that a scanner has been plugged into the USB port and automatically loads the appropriate software to run the scanner. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 39: Installing Visioneer Onetouch

    Installation Complete window to close and exit the driver installer. Close Installing Visioneer OneTouch The Visioneer OneTouch software installation will start automatically after you click on the driver Close Installation Complete window. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 40 If you selected other software to install from the DVD the installation for that software will NOTE: automatically start after you click on the Installation Complete window. Follow the instructions Close on-screen to install each application you selected. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 41: Installing Additional Applications

    30 different PC applications for editing, searching and sharing. Custom workflows handle large volumes of documents, and you can use its tools to print to PDF. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 42 Combining unparalleled functionality, built-in intelligence and ease of use, PDF Converter Professional 7 enables users to create, convert, edit, assemble and securely share PDF files like never before for enhanced professionalism, productivity and collaboration. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 43: View The User Guides

    Main menu window and click Main menu Exit Remove the installation disc and store it in a safe place. That’s it! Installation is finished and your Xerox scanner is ready to scan. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 44: Register Your Scanner

    In the web address field type www.xeroxscanners.com. Press Enter on your computer’s keyboard or click the option on screen to go to the web address. When the Xerox scanners web page loads click on Register Your Product Fill in the registration form, all required fields have an asterisk (*).

  • Page 45: Loading Documents To Scan

    Staples and paper clips can jam the feed mechanism and scratch the internal components. Also remove any labels, stickers, or Post-It™ notes that may come off during the scanning process and get stuck in the scanner. Misuse as described here will void your scanner’s warranty. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 46: Scan From The Onetouch Buttons

    Adjust the paper guide for the width of paper, and make sure the input and output trays are fully extended. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 47: Scan From The Front Feed Tray

    You can only load items into the scanner from either the Front Feed tray or the input tray at each scan time. The scanner will jam if you load paper into the input tray after an item has already been fed into the front. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 48 Place an item face up, on the front feed tray, aligned to the registration marks on the tray and insert it into the front of the scanner. For one-sided scanning press the Simplex button. For two-sided scanning press the Duplex button. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 49: Scan Using Autolaunch

    Click on the scanner icon to the right of the green buttons, in the title bar of the OneTouch button panel. The Scanner Icon Click on the Properties button in the hardware properties window. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 50 —select the OneTouch function number that you want to use for automatic front- Function feed scanning. Select to always use the current function number shown on the Current scanner display. Flip open the front feed tray from the scanner body. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 51 The scanner pulls in the item, scans and ejects it out of the front. 10. A scan progress window opens and the image(s) are sent to the selected application in the OneTouch software for the currently selected control dial number. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 52: Scanning Interfaces

    Scanning Interfaces If you selected the recommended installation options, then you have several different options to scan with your Xerox DocuMate 3115 scanner. Each method scans equally well, so use the one with appropriate options for the item you are scanning.

  • Page 53: Scanning And Configuring Onetouch

    • Scanning with Job Separation on page 121 • Scanning with Optical Character Recognition (OCR) on page 124 • OneTouch with Visioneer Acuity Technology on page 137 • Hardware Properties on page 141 ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 54 ) and the icon of the destination (called the ) where the Email Destination Application images will be sent when scanning is finished. The OneTouch button panel shows which application the button is configured to send images to. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 55: Default Onetouch Settings

    United States standard paper sizes such as 8.5 x 11 inches. • If Metric is the selected measurement, the default page size in each profile is based on the ISO 216 standard and the majority of the profiles will default to A4. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 56: Scan From The Onetouch Button Panel

    Features of the OneTouch Button Panel The OneTouch panel is your on-screen set of controls for the scanner. From the panel you can access the hardware settings for your scanner and configure the Scan button. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 57 Single-click on the detailed information to open the OneTouch Properties. The Hardware View • Left-click on the scanner icon to return to the Button view. • Right-click on the scanner icon to open the scanner’s hardware properties. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 58: Changing The Button Settings

    If you select a word processing program such as Microsoft WordPad or Microsoft Word that can be used for OCR (such as TXT or RTF), the text in scanned images is automatically converted to word processing text. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 59 OK/Cancel/Apply buttons Apply but leaves the window open so you can continue making additional changes. closes the window Cancel without accepting any changes. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 60: Selecting Options For Onetouch

    • is for scanning directly to a folder on the computer, server, FTP server, Storage and CD-R/W SharePoint site, or to the Windows CD temp directory for burning the files to a CD. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 61 —inserts the image number without adding zero (1). {#b} • —inserts a 3-digit image number in the scan batch (001). {#03b} • —inserts the numeric day of the month without a zero added to single-digit days (4). ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 62 As each destination application link is different, there is no standard filename type you can create to use for all destinations. If you scan and the images are not grouped in the file(s) as needed, try deselecting and then scan again. Use custom file naming ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 63: Scan Configurations

    That way, you will always have the factory-settings available. If you do delete or edit them, and want to get the factory pre-sets back again, you will need to uninstall then re-install your scanner. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 64: Scan Settings Tab

    —drag the slider to the right or left to adjust the dots per inch (dpi) of the resolution. The Resolution higher the dpi setting, the sharper and clearer the scanned image. However, higher dpi settings take longer to scan and produce larger files for the scanned images. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 65: Page Settings Tab

    The Simplex and Duplex buttons on the scanner take precedence over the One Touch settings. In other words, if the LED number on the scanner is configured to scan as Duplex, but you press the Simplex button, the scanner scans in Simplex, and vice versa. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 66 6. When Skip Blank Originals is enabled, and 2 of the 3 pages in the stack are blank on one side, the total number of images counted is 4 not 6. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 67: Advanced Settings Tab

    This option is available for both Color and Grayscale scanning. Redaction Settings Tab Use the options on the Redaction Settings tab to remove a specified area in the scanned image. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 68 —select this option if you want to specify an area that appears in the same place on both Both sides of the page, such as a company logo, so you don’t have to specify the same area separately for both the front and back. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 69 Windows color palette. Select the color you want then click on . The color you selected will now display in the field on the Redaction Settings tab. Color ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 70 For example, if you selected Red as the color dropout, but then specify red for the redaction region, the final image will have the redacted region filled with gray when scanning Grayscale, or black or white when scanning in Black&White. Click the name to toggle between inches and millimeters. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 71: File Formats

    . Note that this option is automatically Create single image files selected and disabled if you have selected a format that only supports single pages, such as BMP, PNG, GIF, JPG, or JP2. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 72: Image Formats

    BMP file. However, when scanning in Black & White, the TIF compression produces the smallest file size of all the image types without losing image quality. TIFF also supports multi-page image files. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 73 Other buttons that have JPG selected as the file format are not affected, so you can set the JPG file size/image quality independently for each button. Click on the OneTouch Properties window. Apply ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 74: Text Formats

    Selecting the text format option also selects OCR processing as an automatic step for scanning. Therefore, when you scan a document with the text format selected, the text portions of the document are automatically converted to editable text. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 75 Storage and the OneTouch OmniPage Word and the OneTouch OmniPage Module is installed. Module is installed. Choose the file type that you want for the text format. Click on the OneTouch Properties window. Apply ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 76: Configure Before Scan

    Click the button on the TWAIN Interface. Scan The item is scanned. When finished, click the button and the image will be sent to the Done Destination Application specified in the OneTouch Properties window. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 77 Instead of having to re-scan the entire batch, you can stop the current scan, change the picture type from Black & White to Color, then restart the scanning without losing the pages already scanned. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 78: Open Scanned Document(S)

    Windows documentation for instructions on associating file types. • When scanning to multiple destinations, the scanned file is still sent to the other selected destination application(s) in OneTouch. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 79: Transfer To Storage

    If you modify the storage options in an individual configuration, changing the options in this Link Properties window will no longer update to the configurations you modified. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 80: Setting The Folder From Windows

    When OneTouch was installed, a storage option was added to the right-click menu of your Windows folders. This menu option allows you to set the Transfer to Storage folder location without opening OneTouch first. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 81: Scanning To Multiple Folders

    Then switch to another scan configuration and scan the next set of documents to store them in their folder. Setting Up Multiple Folders for Transfer to Storage Using Microsoft Windows, create the folders that you want to use for storing scanned items. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 82 To help you remember which folder it is, give the new configuration a name that indicates the folder name, such as “Business Receipts.” Click the , and tabs, and select the settings you want. Scan Settings Page Settings Advanced Settings Click the tab. Storage Options Click the button. Browse ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 83 . The new configuration is now listed as a Transfer to Storage configuration. 12. Repeat the process to create additional new configurations, such as one named “Personal Receipts.” Note: Make sure to designate separate folders as the Storage Locations for each new configuration. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 84 When scanning is complete, insert the next set of documents in the scanner, then press the second button you set to scan documents and transfer them to storage. When scanning is finished, the documents are stored in the two separate folders. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 85: Burn To Cd-Rom

    The scanner will start scanning. When finished the file will be saved to the Windows temporary location for CD files. An information bubble will appear in the Windows notification area telling you that there are files waiting to be burned to CD. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 86 The CD burner begins and your scanned documents are written to the Burn to CD If other files are also waiting in this location, they will get written with the OneTouch files on the ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 87: Printer Or Fax

    The Properties button will be disabled in OneTouch as there are no global properties for this type of destination. Select a printer or fax device, in the Select destination list, then open a Scan Configuration to modify the settings for the device you selected. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 88 For example, if the device is your printer, the dialog box is your printer’s setup settings. When scanning to multiple printers and/or faxes, select the specific device, you want to NOTE: configure the Advanced features for, from the list before clicking on the button. Advanced... ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 89: Paperport

    When you create new configurations, the default settings will also match what you have selected here. If you modify the options in an individual configuration, changing the options in this Link Properties window will no longer update to the configurations you modified. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 90 The list of folders in this window are from the PaperPort Folder Manager. Use the PaperPort Folder Manager to add or delete folders, add other drives and network locations to this list. You cannot add new folders from the OneTouch PaperPort configuration windows. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 91 The selected folder in this list is where the scanned file will be saved when PaperPort is open and the OneTouch option Scan to the current PaperPort folder is selected. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 92: Sharepoint

    Select an existing configuration in which you have already specified your SharePoint site information, and then click on the button to create a new configuration using the settings of Copy the current configuration. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 93 Transfer to Storage destination, as described in detail starting on page 81. Click on the button, in this configuration tab, to launch the SharePoint help file. The help file Help contains detailed information about the settings in this window and technical implementation notes. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 94: Sharepoint Link Log Viewer

    Log Viewer from the SharePoint OneTouch Link Properties Properties window. There are no global configuration properties for the SharePoint destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 95: Ftp Transfer

    Select an existing configuration in which you have already specified your FTP server information, and then click on the button to create a new configuration using the settings of the current Copy configuration. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 96: Ftp Link Log Viewer

    The OneTouch Link Log Viewer opens automatically when scanning is complete. Click on the menu arrow next to View logs for and select from the list to display the transfer history for the FTP Link Agent FTP link only. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 97 Log Viewer from the FTP OneTouch Link Properties window. Properties There are no global configuration properties for the FTP destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 98: Smtp

    Select an existing configuration in which you have already specified your SMTP server information, and then click on the button to create a new configuration using the settings of Copy the current configuration. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 99 Transfer to Storage destination, as described in detail starting on page 81. Click on the button, in this configuration tab, to launch the SMTP help file. The help file contains Help detailed information about the settings in this window and technical implementation notes. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 100: Smtp Link Log Viewer

    Click on the Properties button to open the Log Viewer from the SMTP OneTouch Link Properties window. There are no global configuration properties for the SMTP destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 101: Email Applications

    Internet Options of Internet Explorer. Click on the email application that is in the list, then click on the button to launch the Email OneTouch Link Properties window to change the email Properties application. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 102: Email Properties

    If you changed the email application Internet Explorer, and it does not immediately appear in the list, click the button to update the destination list in OneTouch. Select destination Refresh ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 103: Text Editors

    OneTouch. Note that if you recently installed an application, click the button to see if OneTouch will Refresh automatically configure the link before you try adding it manually. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 104: Text Documents Properties

    This could occur if you scanned a photograph with a scanner button set for text applications. • —a message will open on the screen if the OCR reader does Show message if text recognition failed not detect text in the image. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 105: Adding Text Editor Applications To Onetouch

    This PDF format is an image format only, it will not recognize the document using OCR, and you will not be able to search or edit the text in the final file. The application you are adding must be able to open *.pdf files. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 106: Creating An Html Web Page From Your Scanned Documents

    Microsoft Internet Explorer, or other web browser you scanned to, then opens showing your converted page. The application’s URL field shows the location where OneTouch saved the HTML files for you to locate and post to your website. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 107: Still Image Client

    Open the OneTouch Properties window, and select as the Destination Still Image Client Application. Choose a Scan Configuration and click Start scanning using the button you selected for event forwarding. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 108 Now when you scan with Event Forwarding you will either be prompted to choose an application, or the default application you selected will open. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 109: Image Editors

    From this window you can add an application and set additional document handling options. Note that if you recently installed an application, click the button to see if OneTouch will Refresh automatically configure the link before you try adding it manually. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 110: Image Documents Properties

    • —JPEG files can be compressed to produce smaller file sizes and, Convert Bitmaps to JPEG therefore, shorter transmission times. Use this option to provide that compression capability to image files. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 111: Adding Image Editor Applications To Onetouch

    When you are done making changes in this window, click the button to accept the changes and close the window. Click on the Link Properties window. Click on the OneTouch Properties window and the new application should now be Refresh available. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 112: Pdf Applications

    Please note that any PDF application you add manually to OneTouch will be classified as a “Text Based Link.” These applications will only show in the destination list when Text editing applications are enabled. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 113 Step 3. Select the icon in Step 3 of the dialog box. That is the icon that will appear in the OneTouch Destination List. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 114 When you are done making changes in this window, click the button to accept the changes and close the window. 10. Click on the Link Properties window. 11. Click on the OneTouch Properties window and the new application should now be Refresh available. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 115: Send To Application

    Link Properties window. Changing the options in this window only affects the configuration you are creating or modifying. All other configurations will retain their settings for this destination. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 116 The scanner starts scanning and, when finished, sends the scanned file to the application you selected. Technical note • After configuring this link, you may need to click in the OneTouch Properties window to Refresh show the correct application icon in the list. Select destination ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 117 This unique file is created at scan time and contains a list of every image in the scan job. Only select this option if you are sure that the application you are scanning to can use the job file to accept image transfer. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 118: Scanning To Multiple Destinations

    Selected destinations (#) list. Click again to deselect a destination. As you click on each destination, the Selected destinations number will count so you know how many applications are selected to receive the image. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 119 For example, if you scan to a printer and to email, only the BMP file format will be available as printers can only receive an uncompressed image format. All other image formats and all text formats will be disabled until you deselect the printer. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 120 The scanner starts scanning and when finished, the image is sent to each destination you selected in the OneTouch Properties window. Technical Note • destination cannot be used with multiple destination scanning. This Still Image Client destination will be disabled when the is selected. Enable scanning to multiple destinations ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 121: Scanning With Job Separation

    Options Click on the down arrow next to the list to select the button you want to modify. Select Button Note that the options in this window are specific to each OneTouch button. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 122 When scanning is finished, each file will be sent to the destination location or application you have selected on the button tab. Technical Note • When is also selected on the Options tab, each file will be sent as it is created. Instant delivery ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 123 For example, if you scan 12 pages and 3 are blank, the total number of images counted for the job separation will be 9 not 12. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 124: Scanning With Optical Character Recognition (Ocr)

    The OneTouch OmniPage Module must be installed on your computer in order to use the OCR options with the OneTouch software and your Xerox scanner. The OneTouch OmniPage Module was automatically installed when you installed your driver from the installation disc.

  • Page 125: Text Formats

    The specific file format is the file name extension on the text format icon. The specific text format; this example is for Rich Text Format (.rtf). To select a file type for the text format: Select the Destination Application. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 126 —the .htm file format used to create web pages. HTML Document —the .pdf file format used by Adobe Acrobat. This format Searchable PDF converts scanned text into PDF with an invisible text layer for searching. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 127 Scans with Use MRC selected may take slightly longer to complete the processing. Select for documents with harder-to-read text or lower-quality graphics to get Use MRC the best possible scan output image. The Use MRC option is available for sPDF and PDF. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 128: Selecting Onetouch Omnipage Ocr Options

    Select a Destination Application that has one of the text format file types as the page format, such as Microsoft Word or WordPad. Right-click on the page format icon to see the menu. Choose from the menu. OCR Options The OCR Properties window opens with the tab selected. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 129: The Ocr Tab

    The OCR engine does not automatically correct misspelled words that were present in the original document. When dictionaries are selected, the terms in those dictionaries are used to check the spelling. If this is option is not selected, User Dictionaries and Professional Dictionaries cannot be selected. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 130: Creating Your Own Dictionaries

    Creating Your Own Dictionaries You can create multiple dictionaries for your personal use. For example, you might have different dictionaries for separate work projects, especially if each project uses different acronyms and terminology. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 131 Type each word you want in your new dictionary, followed by a carriage return. Make sure to spell the words correctly as they will be used for spellchecking. Here is an example of what the text file might look like: • Xerox • OneTouch •...

  • Page 132: Editing User Dictionaries

    It does not affect the original text file you created with the list of words. Editing User Dictionaries Once a dictionary has been added to the list of user dictionaries, its list of words can be edited. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 133 Select the file that has the words you want to add to your user dictionary. Importing will add the entire list of words in a file to the user dictionary. Click . The file’s words will be added to your user dictionary list. Import ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 134: The Format Tab

    The file is exported as a formatted dictionary with the .ud filename extension so it can be opened by other programs. The Format Tab The options on the tab window are for setting the input and output formats for the scanned Format documents. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 135 —the document will be plain text, one column, left-aligned in a single font and No formatting font size. You can then export the plain text to nearly all file types and target applications. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 136 Spreadsheet output option is only available for documents scanned with the XLS format. Click Apply These options will now apply to the OCR processing when you select any text format as the page format. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 137: Onetouch With Visioneer Acuity Technology

    OneTouch with Visioneer Acuity Technology The OneTouch software you received with your Xerox scanner now includes the Visioneer Acuity technology. This application has a set of features for improving and enhancing the quality of scanned documents, especially documents that would usually produce poorer quality images. Scan configurations with Acuity options work with OneTouch scan settings to produce the best quality images.
  • Page 138 —Select this option to have the software automatically determine if a page Straighten image is skewed, then straighten its image. If the page is scanned at too great an angle, the image may not straighten correctly. In that case, re-scan the page. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 139 Dynamic threshold brightness and contrast levels to produce the best quality image when scanning in black and white. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 140 The Acuity icon on the top of the OneTouch Panel and on the scan configuration remind you that the scan will use the Acuity settings. The summary of the scan settings also indicates Acuity settings. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 141: Hardware Properties

    Hardware Properties Right-click on the OneTouch icon and choose from the pop-up menu. Show Hardware The Hardware Properties dialog box opens and shows information about your Xerox scanner. Click the button. Properties ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 142: Device Settings

    Device Settings Please refer to Device Settings on page 186 Driver Settings Please refer to Driver Settings on page 187 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 143: Scanning From Twain And Wia

    159 • Presets on page 160 • Document Settings on page 165 • Image Enhancements on page 172 • Driver Configuration on page 184 • Hardware Properties and Interface Behavior on page 186 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 144: Accessing The Scanner Interface

    186 for more information. Please refer to your Windows documentation for WIA scanning instructions if you do not see the interface described below, or if you have any questions regarding Windows scanning applications. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 145: Scanning

    If you see this locked version of the scanner’s interface you will be able to select a predefined scanning profile from the list, and then click the button to start scanning. Presets Scan ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 146 The instructions for changing this setting are in the Driver Settings section of this guide. If you are unable to change this setting the option may have been set by your system administrator. Please contact your system administrator for more information. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 147: Using The Preview Window

    Zoom level box to zoom in or out on the preview image in 5% steps. Click the zoom to fit button to fit the entire preview area within the preview window. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 148 When you are happy with the sample image, you can click in the preview window or in the Scan main interface to scan and save the image with the current scan settings. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 149: Scan Regions

    This region will be labeled number 1 and be displayed as an outline in the preview area. Place an item in the scanner and then click Get preview The scanner scans and displays a sample image. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 150 If you do not hold down the Ctrl key, when you click on the area that has already been set as a region you will move the existing region. Click when you are done creating scan regions. Close ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 151 When creating scan regions and you reach the maximum number of allowable scan regions, you will not be able to continue creating scan regions until you remove a region you have already created. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 152: Move, Resize, Or Delete Regions

    Note that you can only resize the scan regions to be within the scanner’s minimum and maximum supported paper sizes. Please refer to the scanner specification table, in the maintenance section of the user guide, for the supported paper sizes for your scanner. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 153: Reordering Regions

    The priority determines which region gets processed first while scanning. For example, region 1 will be processed first and appear in the scanning application as the first image. Right-click on the region and select an option from the menu. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 154: Clear All Regions

    Right-click anywhere in the preview window where there are no regions, and then click on Clear all regions to remove all of the regions in the preview area. This will leave only the region labeled as number 1. There must always be at least one region for scanning. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 155: Document Source Configuration

    ADF with a front feed tray scanner, or an ADF with a flatbed combination scanner. When this option is not selected, you can select which source you want to use in the scan mode list. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 156: Sources Identical

    For instance, if you select color scanning when scanning from the input tray, then the flatbed or front feed tray scans will also be in color. (Example: Sources are identical) (Example: Sources are different) ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 157: Sides Identical

    (for example, “Input tray (Front side) Color”). To set the scanner options individually for each side: Click the drop down menu and deselect Sides identical Select the color mode you want for the first side. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 158 Click the top of the menu to collapse the list. Select the options in the scanner interface that you want to use for the second side. : Save the changes to a when you are done selecting options for each source. Please refer to Preset Presets for more information. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 159: Summary

    Summary area displays some of the basic scan options selected in the interface. Clicking on one of Summary the links will open the area of the interface where the setting is located. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 160: Presets

    Adjust the options in the scanner interface as needed. Click Save To rename a preset: Select the preset you want to rename in the preset list. Click the right pointing arrow button and select Rename... ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 161: Exporting Presets

    Click the right pointing arrow button and select Delete Click when prompted to confirm that you want to delete the currently selected preset. Exporting Presets Click on the right pointing arrow and select from the list. Export... ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 162 Select the preset you want to export in the dialogue for exporting a preset. If you want to export multiple presets, click on each preset name. You may need to hold down the (Control) key on Ctrl your keyboard, while clicking on each preset name, to select multiple presets. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 163: Importing A Preset

    ADF scanner, all settings that are specific to ADF scanning will be modified. Click on the right pointing arrow next to the presets list and select Import... ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 164 —select this option to skip the preset with the duplicate name. Skip Select the option to have the action you select in this dialogue be used for all Do this for all conflicts conflicts found. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 165: Document Settings

    —this panel contains advanced document handling options. If you select an Advanced panel option in this panel that also appears on the Main panel, when you return to the Main panel that option will be selected. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 166: Disabled Options In This Section

    Note that even when is selected, any options that are only available for a specific Sources identical source will be discarded if the scanner scans from the source that does not have those options. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 167: Main Panel Options

    Some resolution settings for typically scanned items are: • letters, forms, or other typed black and white documents – 100 dpi to 150 dpi Text document • letters or forms with hand printed text – 150 dpi Text document ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 168: Document Size

    After you select Long document this option make sure you input the page length for your document in the custom input field, located below the selection list. Document size ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 169: Straighten Image

    The options in the list allow you to select where you want the front side image to appear in relation to the back side image in the final file. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 170: Advanced Panel Options

    The options in this panel may also appear in the panel, but with additional settings for you to Main fine-tune the feature you've selected. Select the source configuration mode to show this Advanced panel. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 171: Automatic Image Cropping

    When scanning, always make sure the paper guides have been properly adjusted to the width of the documents in the input tray. This helps to prevent the pages from being pulled through at an angle. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 172: Image Enhancements

    —this panel contains advanced options for processing colors in the final Color processing panel scans. • —this panel contains advanced image enhancement options for improving the Advanced panel clarity of the scanned image. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 173: Disabled Options In This Section

    Note that even when is selected, any options that are only available for a specific Sources identical source will be discarded if the scanner scans from the source that does not have those options. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 174: Main Panel Options

    Light colored carbon copy paper, such as yellow or pale pink or pale green, with light text - 45% to • Newspaper or magazine pages - 55% to 70% • Book pages - 55% to 80% • Pictures taken inside or in the shade - 60% to 85% ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 175 Contrast refers to the differences between the light and dark portions in the image. Move the slider left or right to decrease or increase the contrast levels. Increasing the contrast level emphasizes the difference between the lighter and darker portions of the image, decreasing the contrast de- emphasizes that difference. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 176 Refer to the monitor's user guide for adjusting the contrast level and see if the manufacturer has any recommended settings. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 177 The examples below show the original image at the default setting of 1.8 gamma level, then 1.0 gamma and 2.6 gamma. Adjusting the gamma level does not make the image completely black nor completely white. Gamma: 1.0 Gamma: 1.8 Gamma: 2.6 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 178: Invert Image

    The following example shows the original grayscale image and the inverted image. The following example shows the original color image and the inverted image. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 179: Mirror Image

    • —move the slider left or right to adjust the sensitivity level for dynamic thresholding. Sensitivity This slider is only enabled when is selected in the list. Dynamic threshold ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 180: Color Processing Panel Options

    Bayer dither scan Color scan Bayer dither scan - Close up Color Processing Panel Options The options in this panel are for setting how the scanner should process colors in specific color modes. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 181: Color Dropout

    When this option is not selected, the resulting scans will be dark and the brightness, contrast, and gamma options will require a greater amount of adjustment to affect the overall lightness of the image. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 182: Advanced Panel Options

    Click the drop down Filter menu and select an option from the list. Use the slider to adjust the tolerance level of the filter. Mask ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 183: White Level

    127, you are telling the scanner that all pixels that are grey level 127 or lower (darker) should appear as black in the final image. This option is only available when scanning in Color or Gray. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 184: Driver Configuration

    For example, if there are two modules installed and both modules include an automatic image rotation option, the first module's rotate option is used and the rotate setting in the second module is ignored so that the image is not rotated twice. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 185: Scanner Configuration

    —click the reset button next to the counter you want to set back to 0. Counters You can use this option to monitor the number of scans completed since the last time a part has been replaced. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 186: Hardware Properties And Interface Behavior

    Hardware Scanners and Cameras Right-click on the scanner and then select from the list. Properties Device Settings Scanner Details • —this is the current hardware processor chip version number. Firmware version ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 187: Driver Settings

    The options in this panel are for configuring how the scanner interface will behave in some scenarios. Only advanced users should modify any of the options in this section. Options that are not available for your scanner will be grayed out and disabled. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 188: Twain Driver

    TWAIN interface in WIA 2.0 applications. • —select this option to display the TWAIN interface for WIA 1.0 compatible Emulate WIA 1.0 applications. When this option is selected, WIA 2.0 applications will use the Microsoft WIA interface. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 189: Application Settings

    • —select the One Touch function number that you want to use for automatic front-feed Function scanning. Select to always use the current function number shown on the scanner display. Current ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 190 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 191: Maintenance

    Troubleshooting on page 201 • Uninstalling Your Scanner on page 204 • The Xerox DocuMate 3115 Scanner Specifications on page 206 • The Xerox DocuMate 3115 Parts List on page 208 This section contains information about maintenance, troubleshooting, uninstalling, scanner specifications, and spare parts.

  • Page 192: Safety Precautions

    Never use aerosol sprays or compressed air, or attempt to lubricate parts with an oil or silicon spray. • Never service the scanner in an area where there are open liquid containers. • Never pour or spill liquid on the scanner or any of its components. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 193: Clearing Paper Jams

    Remove the jammed paper and close the cover. To reduce the number of paper jams, smooth and straighten the paper before scanning and adjust the guides to the paper size, and insert the paper evenly into the ADF. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 194: Cleaning The Scanner

    Be careful not to snag the cloth on any of the surfaces inside the scanner. Scanner glass (underneath scanner lid) Scanner glass (scanner body) ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 195: Cleaning The Docking Station

    Wipe down the input tray with the cloth. Cleaning the Roller and Pad Assembly: Wet a soft cloth with some isopropyl rubbing alcohol (95%). From the back of the scanner, lower the input tray. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 196 Wipe the ADF pad from top to bottom. Be careful not to snag the cloth on the springs on either side of the pad. Wipe clean all plastic surfaces, then close the rear cover. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 197: Replace The Adf Pad Assembly

    ADF is an indication that the pad is wearing thin. You received a replacement pad in the original scanner box, and you can also order a new one. See the The Xerox DocuMate 3115 Parts List on page 208 for ordering information.
  • Page 198 Reverse the procedure to replace the new pad into its slots. Close the rear cover when you’re finished. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 199: Replacing The Roller Assembly

    The roller is held in place with a lock tab that rotates to lock and unlock it. To unlock the tab, rotate it upward until the small lock flange is completely free. When the roller is unlocked, it can be removed from its mounting sockets. ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 200 The lock will “click” into place when it is secure. However, if it does not rotate easily into the housing, make sure the flange is properly seating in its latch. 11. Close the rear cover when you’re finished. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 201: Troubleshooting

    They are interfering with the installation and OneTouch options, and you need to remove those other drivers and re-install your DocuMate 3115 scanner. Please see the documentation that you received with the other scanner for the steps to remove its driver programs.
  • Page 202 Make sure to align the paper guides to the edges of the paper. If you are scanning small items that are smaller than the paper guides’ minimum adjustment, scan these items from the front feed tray instead. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 203: Error Light Troubleshooting Codes

    Error Light Troubleshooting Codes The status light indicates the current state of the scanner. Descriptions of the most common patterns are listed below. Contact Xerox Technical Support if you experience a different blinking pattern. Normal Operation • indicates the scanner is ready to scan.

  • Page 204: Uninstalling Your Scanner

    Windows XP: Open Add/Remove Programs • Windows Vista and later: Open Programs and Features Uninstalling the scanner driver: In the list of installed programs click on driver. Xerox DocuMate 3115 Click the button. Change/Remove Uninstall Click when asked to confirm that you want to remove the driver.
  • Page 205 Visioneer Acuity make sure you select and uninstall Visioneer Acuity. If you uninstall one of the entries labeled as an “asset” you will still need to uninstall the main Visioneer Acuity utility. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 206: The Xerox Documate 3115 Scanner Specifications

    The Xerox DocuMate 3115 Scanner Specifications Optical resolution 600 dpi Bit depth 24-bit color, 8-bit grayscale, 1-bit bitonal (black & white) Maximum item size 8.5" x 36" Minimum item size 3.5" x 2" Scan method Duplex Automatic Document Feeder (Docking Station)
  • Page 207 - 32-bit or 64-bit Vista (Service Pack 1 or 2) - 32-bit or 64-bit 7 - 32-bit or 64-bit 8 Scanner Drivers TWAIN, WIA Bundled Software Visioneer OneTouch Nuance PaperPort® Nuance OmniPage® Nuance PDF Converter® ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 208: The Xerox Documate 3115 Parts List

    The Xerox DocuMate 3115 Parts List Please use the following part names and numbers when ordering replacements for your Xerox DocuMate 3115 scanner. Part Name Part Number Docking Station 85-0533-000 ADF Pad 57-0130-000 Roller Assembly 57-0113-000 USB Cable 35-0225-000 USB Power Cord...

  • Page 209: Regulatory Information

    Regulatory Information This chapter includes: • Basic Regulations on page 210 • Copy Regulations on page 212 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 210: Basic Regulations

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes and modifications to this equipment not specifically approved by Xerox may void the user’s authority to operate this equipment.

  • Page 211: Other Regulations

    This machine is certified as Class 1 LED product. This means that this machine does not produce hazardous laser radiation. A full declaration of conformity, defining the relevant directives and referenced standards, can be obtained from your Xerox Limited representative or by contacting: Environment, Heath and Safety The Document Company Xerox...

  • Page 212: Copy Regulations

    Further information of these provisions may be obtained from the Copyright Office, Library of Congress, Washington, D.C. 20559. Ask for Circular R21. Certificates of Citizenship or Naturalization. (Foreign Naturalization Certificates may be photographed.) Passports. (Foreign Passports may be photographed.) Immigration Papers. Draft Registration Cards. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 213: Canada

    The above list is provided for your convenience and assistance, but it is not all inclusive, and no liability is assumed for its completeness or accuracy. In case of doubt, consult your solicitor. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 214: Other Countries

    Copyright material or trademarks without the consent of the owner • Postage stamps and other negotiable instruments this list is not inclusive and no liability is assumed for either its completeness or accuracy. In case NOTE: of doubt, contact your legal counsel. ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 215: Compliance Information

    Compliance Information This chapter includes: • Product Recycling & Disposal on page 216 • Energy Star for the USA on page 217 ® ® Xerox DocuMate 3115 User’s Guide...

  • Page 216: Product Recycling & Disposal

    Product Recycling & Disposal USA & Canada If you are managing the disposal of your Xerox product, please note that the product may contain lead, mercury, Perchlorate, and other materials whose disposal may be regulated due to environmental considerations. The presence of these materials is fully consistent with global regulations applicable at the time that the product was placed on the market.

  • Page 217: Energy Star For The Usa

    Energy Star for the USA Energy Program Compliance The Xerox DocuMate 3115 is E qualified under the E Program Requirements for ® ® NERGY NERGY Imaging Equipment. The E and E are registered United States trademarks. The E NERGY NERGY NERGY Imaging Equipment Program is a team effort between U.S., European Union and Japanese...
  • Page 218 ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 219 File format, 55, 71, 76 Configure Before Scan, 63 file format, 126 cancel, 77 Filter, 182 Contrast, 65, 175 Fit to page, 88 Copy button, 59 Flip back side, 169 Create single image files, 71 ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 220 LED Number, 58 Panel features, 56 Lock icon, 63, 65 properties, 58, 76, 79, 85, 89, 107, 124 Logical Form Recognition, 41 One Touch Button Panel Long document, 168 names, 55 One Touch Properties window ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 221 TIFF file format, 71, 72 Scan to Folder, 79 Transfer to Storage, 79, 81 Multiple folders, 81 file formats, 75 Scanner troubleshooting, 201 connecting, 28 true page, 136 Device settings, 141 TWAIN interface, 76, 77 ® ® Xerox DocuMate 3115 User’s Guide...
  • Page 222 USB cable, 38 Use languages and dictionaries to improve accuracy, 129 Use MRC, 127 user dictionary edit, 132 new, 130 User Guides, 43 White Level, 183 Word Document, 126 xls file format, 126 ® ® Xerox DocuMate 3115 User’s Guide...

Table of Contents
