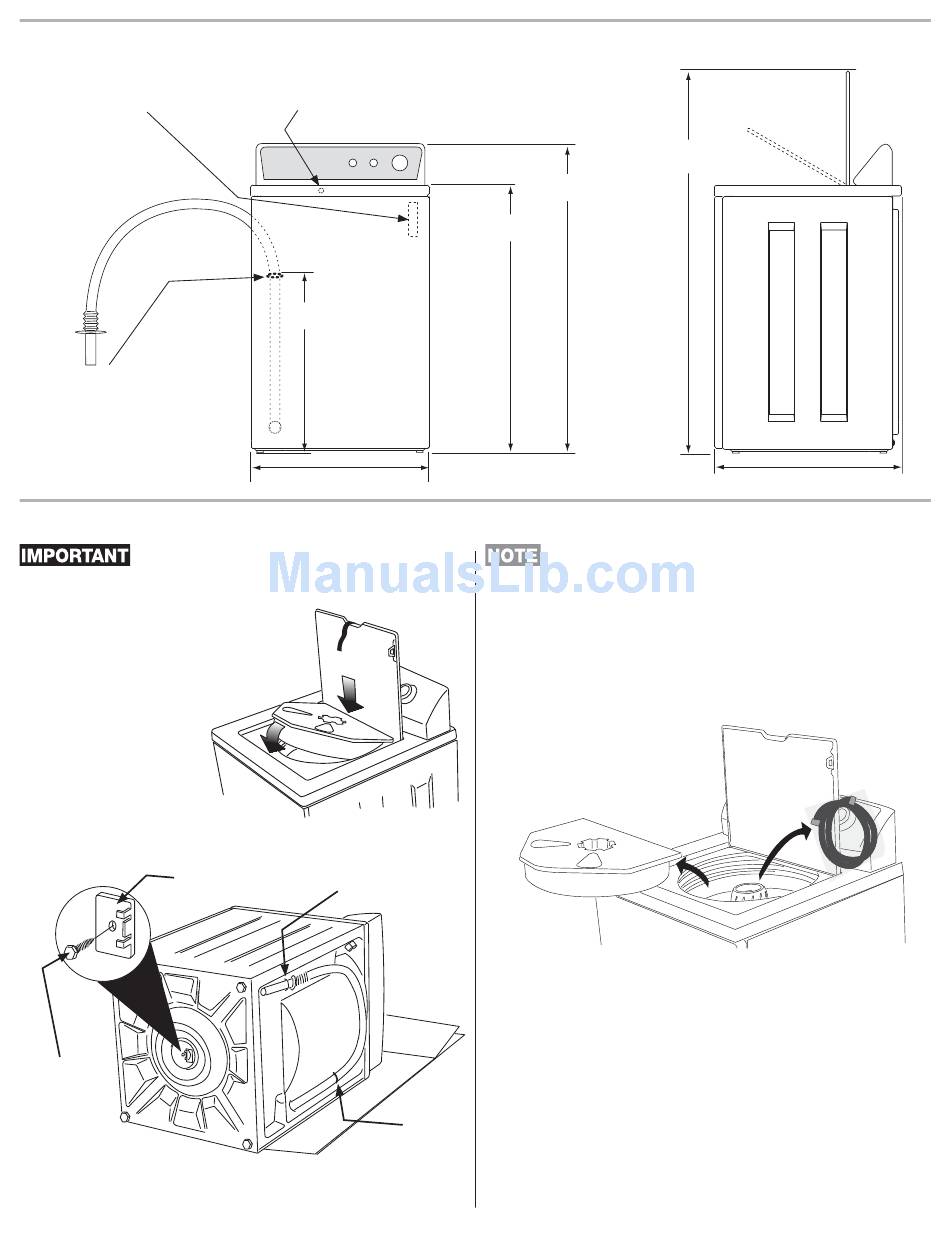

water supply connection on
rear of washer, inlet hose length
approximately 43" (109 cm)
drain hose retention clamp
on rear of washer, loose
hose length beyond clamp
approximately 54" (137 cm)
To prevent vibration, possible machine dam-
age and maximize performance, the following steps must be
completed.
1.
If foam tub block has been
removed, reinsert it now and
retape the lid securely.
2.
Using a rug, blanket or piece of cardboard to protect the
fl oor, carefully lay the washer on its left side.
PLASTIC
SPACER
SHIPPING
BOLT
3.
Using a ratchet with 3/8" socket, remove the mechanism
shipping bolt and plastic spacer block from the center of
the base.

Installed Washer Dimensions

power cord length on rear of
washer approximately 59" (150 cm)
24"
(61 cm)
27" (68.6 cm)

Unpacking Instructions

WIRE CLIP
PLASTIC
CLIP
to clear open lid
43 5/8"
(111 cm)
36"
(91.5 cm)
If the washer is to be transported at a later date,
the tub blocking pad, shipping bolt, and plastic spacer block
should be retained.
4.
Carefully return the washer to an upright position.
5.
Remove the tape holding the lid shut and open the lid.
6.
Remove the foam tub block.
7.
Remove the inlet hoses and other tub contents.
8.
From the back of the washer, remove the wire shipping
clip securing the drain hose.
9.
DO NOT remove the PLASTIC CLAMP which secures the
drain hose to the right side of the washer backsheet. It
helps form a standpipe to prevent water siphoning.
10.
Carefully move the washer to within 4 feet of the fi nal
location for the start of the installation.
4
51" (129.5 cm)
27" (68.6 cm)
