Important Safety Instructions ................................................2
Installation Requirements .................................................. 2-3
Installed Dimensions .............................................................4
Unpacking Instructions ..........................................................4
For your safety the information in this manual must be followed to minimize the risk of fi re or explosion or to
prevent property damage, personal injury or loss of life. Do not store or use gasoline or other fl ammable vapors and liquids in
the vicinity of this or any other appliance.
Recognize safety symbols, words and labels
Safety items throughout this manual are labeled with a
WARNING or CAUTION based on the risk type as described:
This symbol alerts you to situations that
may cause serious body harm, death or
property damage.
This symbol alerts you to situations that may
cause bodily injury or property damage.
Save these instructions
for future reference.
Tools needed for installation:
3/8" socket and ratchet
Adjustable pliers
Carpenter's level
Electrical system requirements
CIRCUIT - Individual, properly polarized and grounded 15
amp. branch circuit fused with 15 amp. time delay fuse or
circuit breaker.
POWER SUPPLY - 2-wire, with ground, 120 volt single phase,
60 Hz, Alternating Current.
Because of potentially inconsistent voltage capabili-
ties, the use of this washer with power created by gas pow-
ered generators, solar powered generators, wind powered
generators or any other generator other than the local utility
company is not recommended.
OUTLET RECEPTACLE - Properly grounded 3-prong receptacle
to be located so the power supply cord is accessible when
the washer is in an installed position.

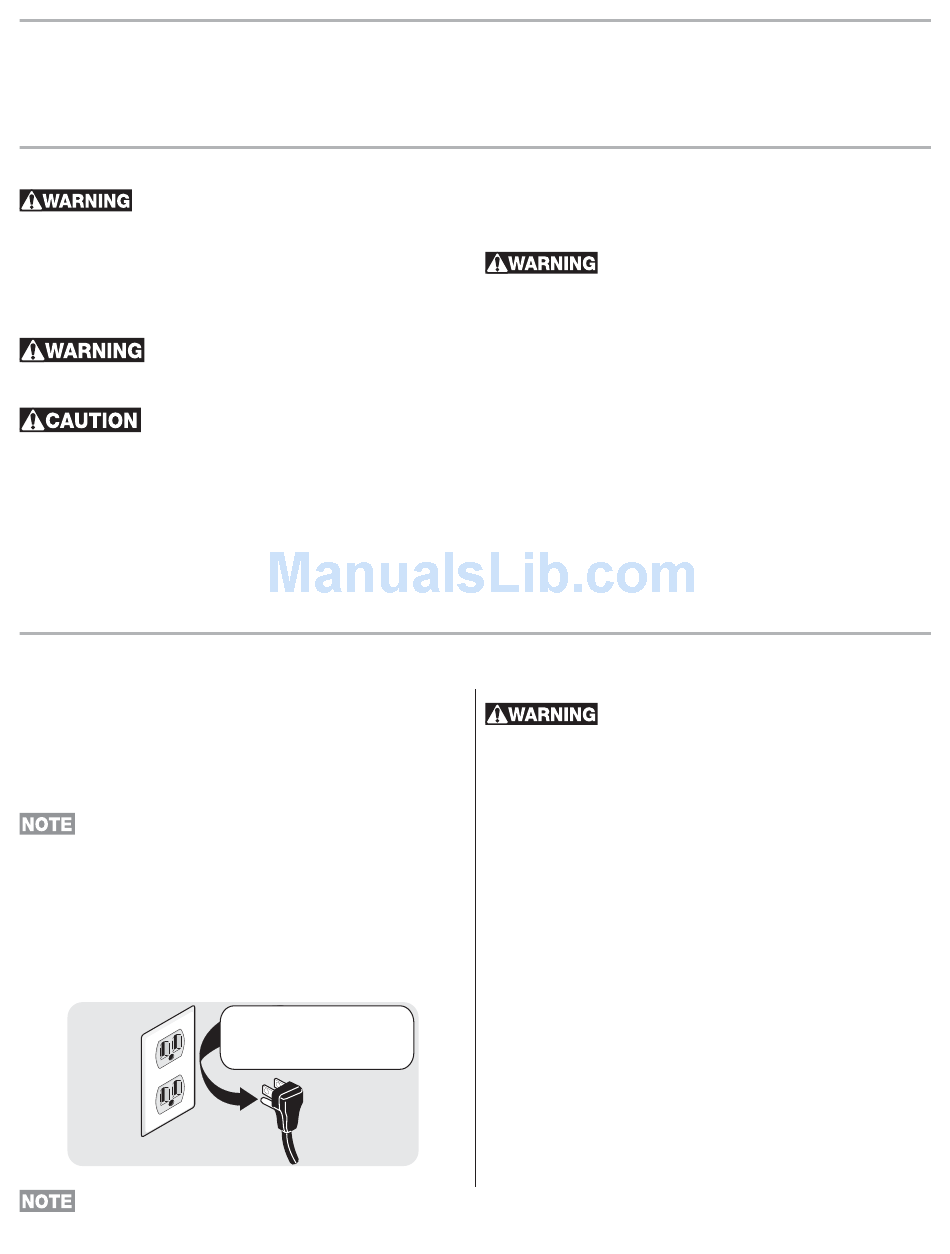

Grounding
Grounding
type
type
wall ll
wa
receptacle
receptacle
GFI (Ground Fault Interrupter) receptacle is not re-
quired.

Table of Contents

Important Safety Instructions

Installation Requirements

Do not, under any circumstances,
Do not, under any circumstances,
cut, remove, or bypass the
cut, remove, or bypass the
grounding prong.
grounding prong.
Po Power cord
wer cord
with 3-prong
with 3-prong
gr grounded plug
ounded plug
Installation Instructions ..................................................... 5-6
Replacement parts ................................................................6
Français ................................................................................7
Read all of the following instructions before
installing and using this appliance:
Destroy the carton and plastic bags after the dryer is un-
packed. Children might use them for play. Cartons covered
with rugs, bedspreads, or plastic sheets can become airtight
chambers causing suffocation. Place all materials in a gar-
bage container or make materials inaccessible to children.
The electrical service to the washer must conform with local
codes and ordinances and the latest edition of the National
Electrical Code, ANSI/NFPA 70, or in Canada, CSA 22.1
Canadian Electrical Code Part 1.
To avoid back or other injury, have more than one person
move or lift the washer.
The instructions in this manual and all other literature in-
cluded with this dryer are not meant to cover every possible
condition and situation that may occur. Good safe practice
and caution MUST be applied when installing, operating
and maintaining any appliance.
Grounding requirements
- ELECTRICAL SHOCK HAZARD - Improper
connection of the equipment grounding conductor can result
in a risk of electrical shock. Check with a licensed electrician
if you are in doubt as to whether the appliance is properly
grounded.
1.
The washer MUST be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electrical
shock by a path of least resistance for electrical current.
2.
Since your washer is equipped with a power supply cord
having an equipment-grounding conductor and a grounding
plug, the plug MUST be plugged into an appropriate,
copper wired receptacle that is properly installed and
grounded in accordance with all local codes and ordinances
or in the absence of local codes, with the National Electrical
Codes, ANSI/NFPA 70 (latest edition). If in doubt, call a
licensed electrician. DO NOT cut off or alter the grounding
prong on the power supply cord. In situations where a
two-slot receptacle is present, it is the owner's responsibility
to have a licensed electrician replace it with a properly
grounded three prong grounding type receptacle.
2
