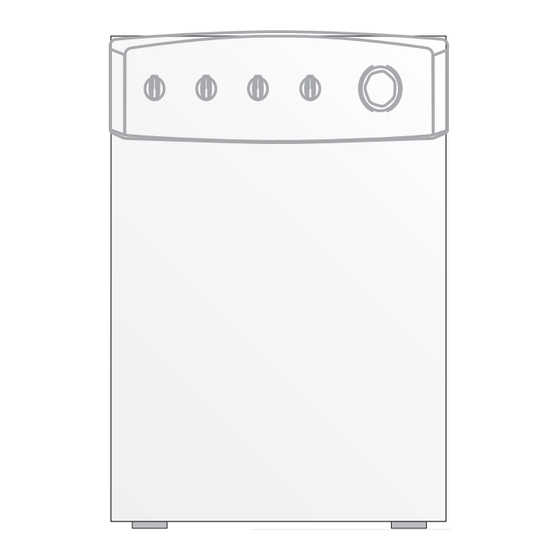

Frigidaire FTW3014K Factory Parts Catalog
Top-load washing machine
Hide thumbs
Also See for FRIGIDAIRE FTW3014K:
- Installation instructions manual (12 pages) ,
- Use and care manual (14 pages)
Advertisement
Quick Links
P12L0040.eps P12V0131.eps P12T0092.eps P12M0014.eps P12C0399.eps
137171200.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FTW3014KW0
Market
North America
Color
white
Volts
120
Wiring Diagram
137171200
Owner's Guide
137153200
Installation Instructions 137153100
Energy Guide
137152500
Publication No.
5995539425
09/05/04
(EN/SERVICE/WTC)
361
Copyright
TOP-LOAD WASHING
MACHINE
Model No.
FTW3014K
©
2009 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Related Manuals for Frigidaire FRIGIDAIRE FTW3014K
Summary of Contents for Frigidaire FRIGIDAIRE FTW3014K
- Page 1 TOP-LOAD WASHING P12L0040.eps P12V0131.eps P12T0092.eps P12M0014.eps P12C0399.eps MACHINE 137171200.eps Electrolux Major Appliances Model No. North & Latin America FTW3014K P.O. BOX 212378 AUGUSTA, GA 30917 Publication No. 5995539425 09/05/04 (EN/SERVICE/WTC) © Copyright 2009 Electrolux Home Products, Inc. All rights reserved.
- Page 2 Publication No: 5995539425 FTW3014KW0 CABINET/TOP P12V0131 05/09...
-
Page 3: Functional Parts
FTW3014KW0 Publication No: 5995539425 CABINET/TOP POS. NO PART NO. DESCRIPTION 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point 134075500 Bumper, lid, front 131385910 Hinge Bar, LH 134883900 Hinge Bar, RH 5303208743 Grommet, hinge 131374401 Lid, white 3205821 Clip, top-to-front 131390000 Lid Strike 3204368... - Page 4 Publication No: 5995539425 FTW3014KW0 MOTOR/TUB 35 36 P12T0092 05/09...
- Page 5 FTW3014KW0 Publication No: 5995539425 MOTOR/TUB POS. NO PART NO. DESCRIPTION 131551103 Cover, splash tub, with seal • Seal, splash cover 131901400 131212303 Capacitor, motor 131454100 Hose, water inlet, 4 ft., hose & washer 5303161296 Washer, inlet hose 5303304824 Clamp 134211700 Hose Assy, w/nozzle 11 # 131605901...
- Page 6 Publication No: 5995539425 FTW3014KW0 TRANSMISSION P12M0014 05/09...
- Page 7 FTW3014KW0 Publication No: 5995539425 TRANSMISSION POS. NO PART NO. DESCRIPTION 134418700 Hub, drive, agitator 134737100 Transmission, service kit 134197900 Screw, hex washer head, 1/4-20 x 0.437 26 # 5303279394 Seal Assy, tub, transmission 05/09 # Functional Parts * Non-Illustrated Parts...
- Page 8 Publication No: 5995539425 FTW3014KW0 CONTROL/PANEL P12C0399 05/09...
- Page 9 FTW3014KW0 Publication No: 5995539425 CONTROL/PANEL POS. NO PART NO. DESCRIPTION 134404200 Switch, speed control, 4 posn rotary 134096100 Spacer, console mtg 134844410 Knob, rotary, white 137014800 Switch, pressure 137169400 Timer, washer 131992910 Panel, backsheet, console 134019900 Closure, console trim, white, front 134547800 Screw, 10-16AB x 0.375 15 #...
-
Page 10: Wiring Diagram
Publication No: 5995539425 FTW3014KW0 WIRING DIAGRAM 05/09...
