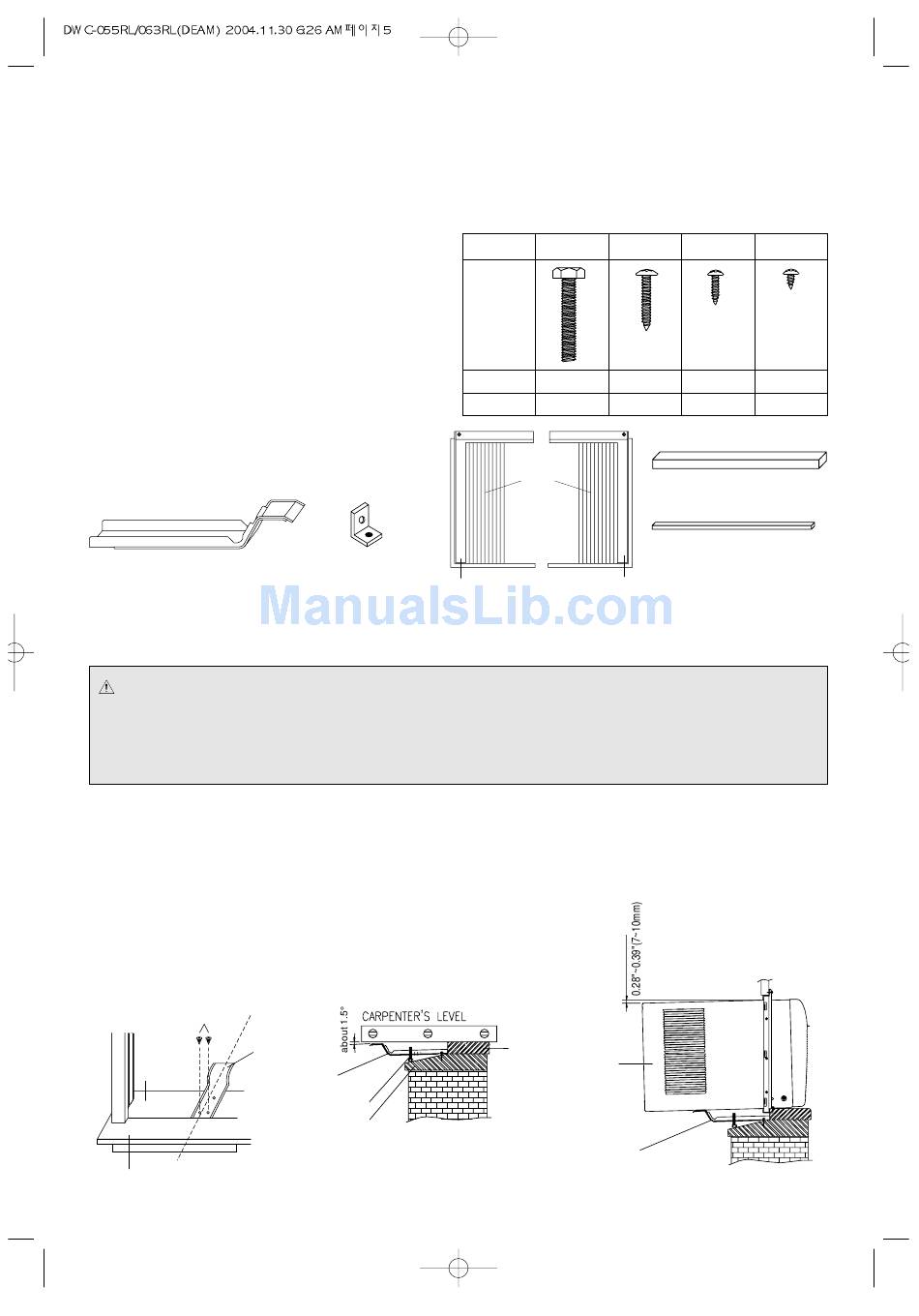

• Step 1 - Prepare Components For Installation
1. Open the components box for installation
2. Check components for installation as follows.
• Sill Bracket (1 piece)
• Window Shutter (2 pieces)
• Sash Bracket (1 piece)
• Window Kit Frame - Left side (1 piece)
• Window Kit Frame - Right side (1 piece)
• Leveling Screw - M8 x 45 (1 piece)
1
• 1 / inch Screw - M5 x 30 (2 pieces)
4
• 5/8 inch Screw - M4 x 16 (5 pieces)
• 5/16 inch Screw - M4 x 8 (6 pieces)
• Window Seal A, B (2 pieces)
Sill Bracket (1 piece)
• Step 2 - Prepare Window For Installation
WARNING :
1.To reduce the risk of electric shock, personal injury or death, turn the fan control to the OFF position
and unplug the unit from the wall outlet before installing or removing this unit.
2.The window where the air conditioner is to be installed should have enough strength to bear the
weight of the air conditioner.
1. Inspect window track, sash and sill to be sure they are strong enough to hold an air conditioner.
2. Measure width between window frame to be sure instant mount will fit in the window. Instant mount models
are designed for windows 21.7in (550mm) to 34.6in (880mm) wide.
3. Mark the center of window sill with a pencil.
4. Insert Screw (Type A) into the sill bracket.
5. Attach Sill bracket to window sill using Screws (Type B).
(The outside edge of window bracket should be center line)
6. Place the carpenter's level on the sill and the outdoor end of Sill Bracket.
Adjust Screw (Type A) so that Sill Bracket have a slight tilt by using
carpenter's level meter. (about 1.5°)
CENTER
LINE
Screw (Type B)
SILL
BRACKET
OUTER
WINDOW
SILL
INNER WINDOW SILL
• SCREW TYPE
SHAPE
SPEC
Q'TY
Sash Bracket Window kit Frame
(1 piece) Left side (1 piece)
SILL
BRACKET
Screw (Type A)
OUTER
WINDOW
SILL
5
Type A Type B
M8 x 45 M5 x 30
1 2
Window
Window Seal A (1 piece)
Shutter
(2 pieces)
Window Seal B (1 piece)
Window kit Frame
Right side (1 piece)
INNER
WINDOW
UNIT
SILL
SILL
BRACKET
Type C Type D
M4 x 16 M4 x 8
5 6
