Vinyl Windows and Doors
Manufactured by Pella Corporation
INSTALLATION INSTRUCTION - INSTRUCCIONES DE INSTALACION
FOR DOUBLE-HUNG VENT REPLACEMENT WINDOW
Lea las instrucciones en español en el reverso.
Installation Instructions for Typical Wood Frame Construction.
These instructions were developed and tested for use with typical wood frame wall construction in
a wall system designed to manage water. These instructions are not to be used with any other
construction method. Installation instructions for use with other construction methods may be
®
obtained from Pella
building materials, and site conditions unique to your project may require an installation method
different from these instructions and additional care. Determining the appropriate installation method
is the responsibility of you, your architect, or construction professional.
Handling and Storage:
Provide full support under the framework while storing, moving and installing this product. DO
NOT lift the product by the head member only. Remove the plastic shipping material prior to storing
or installing the product. DO NOT store in direct sunlight. Allow sufficient spacing between products
for ventilation.

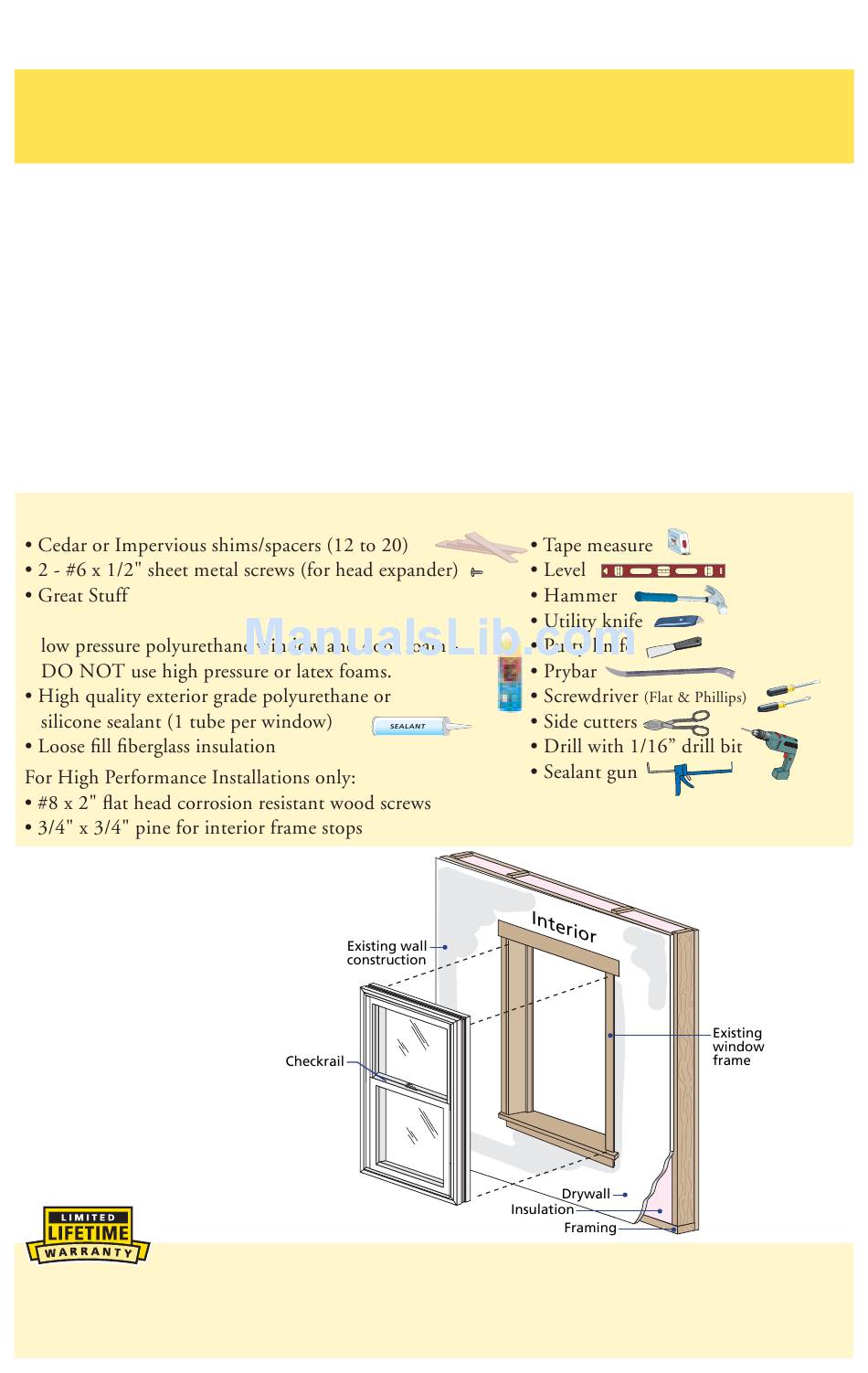

YOU WILL NEED TO SUPPLY:
™
Window and Door Insulating Foam
Sealant by the Dow Chemical Company or equivalent
REMEMBER TO USE APPROPRIATE
PERSONAL PROTECTIVE EQUIPMENT.
Always read the Vinyl Window and Door Limited Warranty before purchasing or
installing Vinyl Windows and Doors manufactured by Pella Corporation. By installing this product,
you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply
with all Pella installation and maintenance instructions may void your Pella product warranty. See
Limited Warranty for complete details at http://warranty.pella.com.
Corporation or a local Pella retailer. Building designs, construction methods,
Part Number: V784840
©Pella Corporation 2007
TOOLS REQUIRED:
Installation will require two or
more persons for safety reasons.
Advertisement
Table of Contents
Related Manuals for Pella V784840
Summary of Contents for Pella V784840
- Page 1 Vinyl Windows and Doors manufactured by Pella Corporation. By installing this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
- Page 2 REMOVING EXISTING SASH Caution: Many windows in older homes are painted with lead-based paint. Removal of old windows may disturb this paint. Proper precautions must be taken to minimize exposure to dust and debris. Consult state or local authorities for more information. Use appropriate personal protective equipment.
- Page 3 F. Verify that the installation jamb screws will fasten into solid wood. If not, insert solid filler at screw locations. Note: Raise the lower sash to access the lower installation holes. There will be four or six installation holes in each jamb, depending on the window frame size.
- Page 4 E. Apply a 1/4 to 3/8 continuous bead of sealant to the jambs. Also apply a bead of sealant across the sill, connecting with the sealant at the jambs. F. Place a bead of sealant Insert the replacement window in the opening by setting the bottom of the window in first, then tilting the top into place.
- Page 5 K. Seal the window to the exterior stops. Place a corner bead of sealant around the perimeter of the window frame where the new frame contacts the original window frame. Also place a bead of sealant between the sill adapter and connect to the jamb sealant beads.
- Page 6 INSTALLATION INSTRUCTIONS (HEAD EXPANDER) Note: To determine if the Head Expander is required refer to Step 4B. A. Make a pencil mark window on the room side edge of each jamb. B. Install the head expander on the top of the window frame.
- Page 7 Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella. Pella products should not be used in barrier wall systems which do not allow for proper management of Pella makes no warranty of any kind on and assumes no responsibility for Pella windows and doors installed in barrier wall systems.
