Pella 801P0101 Installation Instructions Manual

Clad casement & awning window
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

© 2008 Pella Corporation

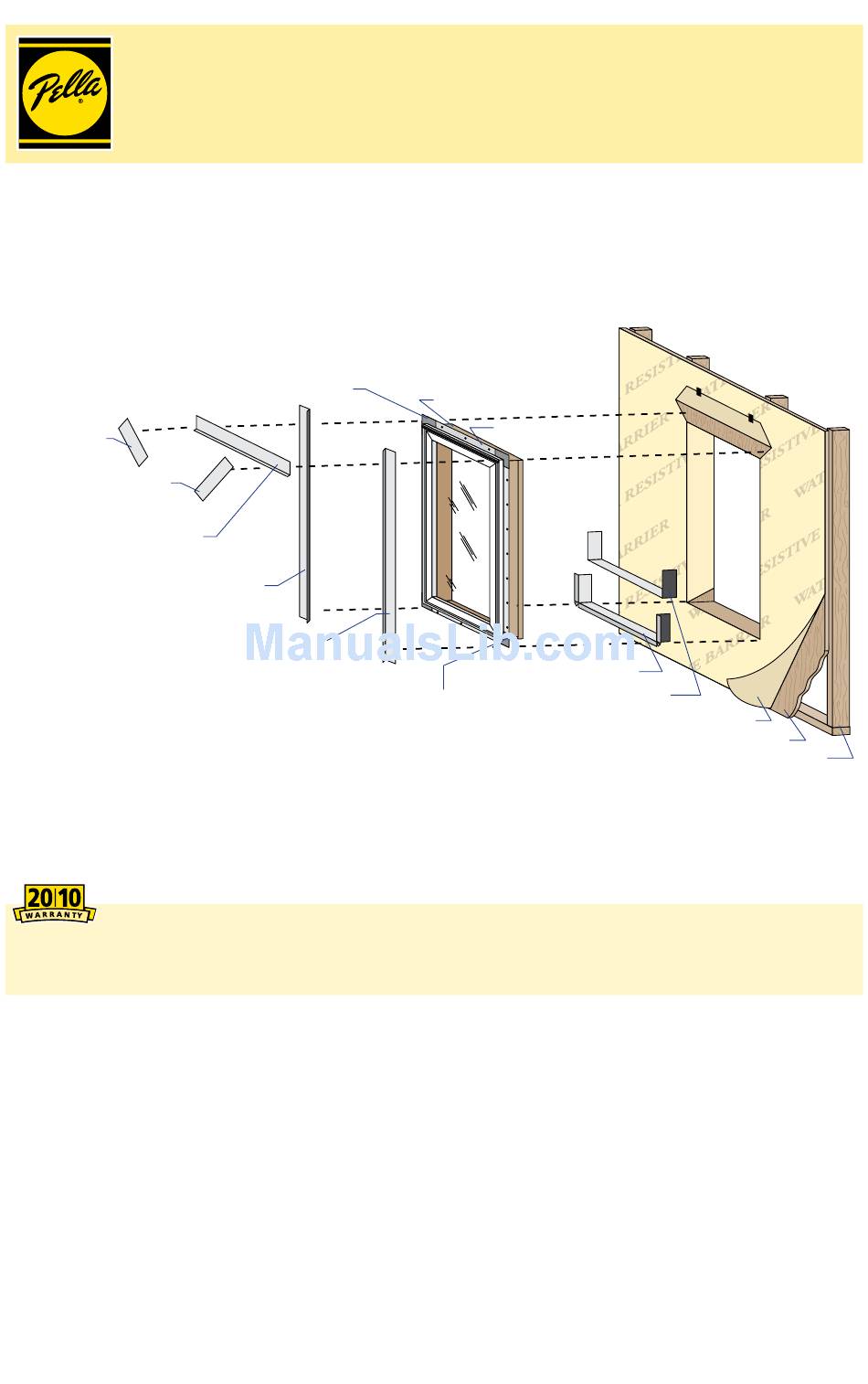

INSTALLATION INSTRUCTION - INSTRUCCIONES DE INSTALACIÓN
FOR CLAD CASEMENT & AWNING WINDOW
VENTANA DE DOS HOJAS CON REVESTIMIENTO
Corner
Flashing
Tape
Corner
Flashing
Tape
Top
Flashing
Tape
Always read the Pella
By installing this product, you are acknowledging that this Limited Warranty is part of the terms of
the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella
product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
Installation Instructions for Typical Wood Frame Construction.
These instructions were developed and tested for use with typical wood frame wall construction
in a wall system designed to manage water. These instructions are not to be used with any
other construction method. Installation instructions for use with other construction methods,
multiple units or bow and bay windows, may be obtained from Pella Corporation, a local Pella
retailer, or by visiting http://www.pella.com. Building designs, construction methods, building
materials, and site conditions unique to your project may require an installation method
different from these instructions and additional care. Determining the appropriate installation
method is the responsibility of you, your architect, or construction professional.
Fin
Corner
Side
Flashing
Tape
Side
Flashing
Tape
Window Bottom
®
Limited Warranty before purchasing or installing Pella products.
Window Top
Nailing Fin
Sill Flashing Tape #1
Sill Flashing Tape #2
Water Resistive Barrier
Part Number: 801P0101
Sheathing
Framing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 801P0101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pella 801P0101

Summary of Contents for Pella 801P0101

  • Page 1 By installing this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
  • Page 2 YOU WILL NEED TO SUPPLY: TOOLS REQUIRED: ® SmartFlash ™ foil backed butyl window and door flashing tape or equivalent ™ Window and Door Insulating Foam Sealant by the Dow Chemical Company or equivalent low pressure polyurethane window and door foam - DO NOT use high REMEMBER TO USE APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT.
  • Page 3 ROUGH OPENING PREPARATION (CONTINUED) 1 " E. Apply sill flashing tape #1 than the opening width. Apply at the bottom of the opening as shown 6 " Note: The tape is cut 12" longer than the width so that it will extend 6"...
  • Page 4 SETTING AND FASTENING THE WINDOW (CONTINUED) E. Plumb and square window Interior the bottom and top of the window between the window and the sides of the opening. Adjust the shims as required to plumb and square the window in the opening. If the frame height window sides.

  • Page 5: Interior Seal

    INTEGRATING THE WINDOW TO THE WATER RESISTIVE BARRIER (continued) B. Apply top flashing tape. Cut a piece of flashing tape long enough Note: DO NOT tape or seal the bottom nailing fin. C. Fold down top flap D. Apply flashing tape to diagonal cuts. Cut pieces of water resistive barrier.
  • Page 6 SEALING THE WINDOW TO THE EXTERIOR WALL CLADDING When applying siding, brick veneer or other exterior finish material, leave adequate space between the window frame and the material for sealant. Refer to the illustration that corresponds to your finish material. Note: The sealant details shown are standard recommendations from the sealant industry.

  • Page 7: Exterior Finish

    The determination of the suitability of all building components, including the use of Pella products, as well as the design and installation of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella.
  • Page 8 INSTALLING ROTO COVER AND CRANK Note: Finish the interior of the window and allow Pocket End the window to dry before proceeding with these instructions. (To open the window for finishing, partially insert the lock handle into the jamb, unlock the unit, temporarily attach the crank handle and turn to open.) A.
