©2008 Pella Corporation
INSTALLATION INSTRUCTION
INSTRUCCIONeS De INSTALACION
FOR BAY AND BOW WINDOW WITH SeAT BOARD
VeNTANAS De MIRADOR CON TABLA De ASIeNTO
Lea las instrucciones en español en el reverso.

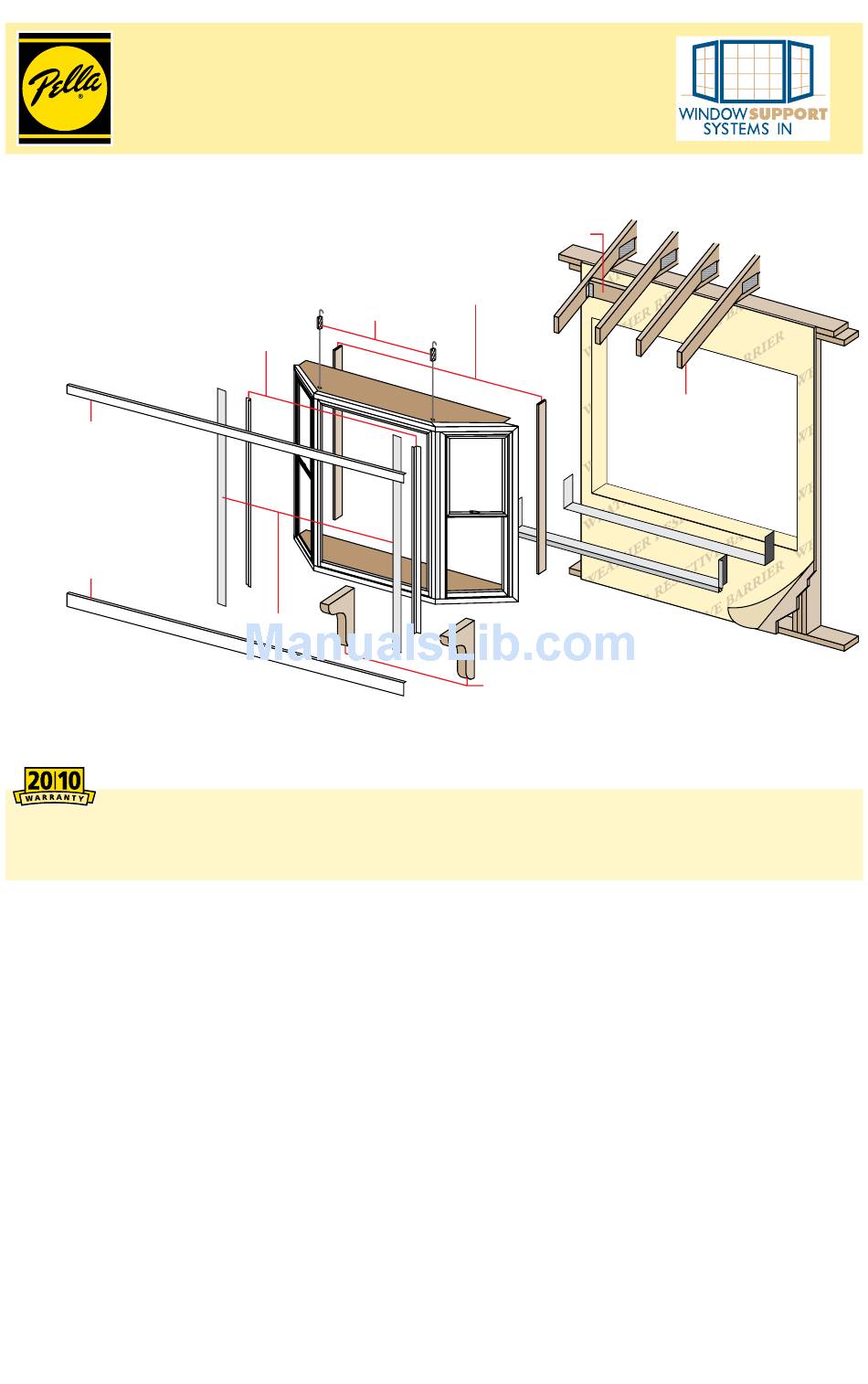

Head frame
expander
Bottom frame
expander
Always read the Pella
By installing this product, you are acknowledging that this Limited Warranty is part of the terms of
the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella
product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
Note: These instructions may be used for all Pella Bay and Bow windows that have a
head and seat board. Support cables are installed in factory assembled bay and bow
combinations.
Caution: The factory-installed support cables must be attached to members capable of
supporting 1,300 lbs. If the members are not capable of supporting 1,300 lbs., knee braces
must be used in addition to the cables. Bay and bow units are not intended to support any
roof structure. Consult an architect, engineer or construction professional if the ability of the
members to support the bay or bow is not known.
Installation Instructions for Typical Wood Frame Construction.
These instructions were developed and tested for use with typical wood frame wall construction
in a wall system designed to manage water. These instructions are not to be used with any
other construction method. Installation instructions for use with other construction methods,
multiple units or bow and bay windows, may be obtained from Pella Corporation, a local Pella
retailer, or by visiting http://www.pella.com. Building designs, construction methods, building
materials, and site conditions unique to your project may require an installation method
different from these instructions and additional care. Determining the appropriate installation
method is the responsibility of you, your architect, or construction professional.
Cable clamp
Jamb covers
Flashing tape
Limited Warranty before purchasing or installing Pella products.
®
Cross bracing
Jamb extensions
Knee braces
Part Number: 80AT0102
C.
,
Rafter tail
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pella 80AT0102
Summary of Contents for Pella 80AT0102
- Page 1 By installing this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
- Page 2 • 10d galvanized finish nails or #8 x 2 1/2" flat head corrosion- • Level resistant screws (4 to 6) • Square • Closed cell foam backer rod/sealant backer (20 to 35 ft.) • Hammer • Pella ® SmartFlash ™ foil backed butyl window and door • Stapler flashing tape or equivalent •...
- Page 3 F. Apply sill flashing tape #2. Cut a piece of flashing tape 12" longer than the opening width. Apply at the bottom, overlapping tape #1 by 1 " at least 1". DO NOT allow the tape to extend past the interior face of the framing (1F).
-
Page 4: Cable Clamp Installation
Cross bracing mount CABLe CLAMP INSTALLATION Note: Support cables are installed in factory assembled Header mount bay and bow combinations. T-nut Install Cable Clamps based on type of installation needed. Cross Bracing Installation consists of attaching 2 x 6 cross bracing between the rafter tails. Header Mount Installation consists of attaching to a solid structural member - header, sill plates or wall stud. - Page 5 CABLe CLAMP INSTALLATION (continued) C. When the bay/bow unit is being installed, thread the threaded end of the cable through the "T" nut, down the length of the bay/bow unit, and out the drilled hole in the seat board. Place a washer and two hex nuts on each cable end. Note: The interior mullion cover can easily be removed for this purpose and must be reinstalled when installation is complete.
- Page 6 INSULATING FOAM APPLICATION Caution: Ensure use of low pressure polyurethane window and door insulating foams and strictly follow the foam manufacturer’s recommendations for application. Use of high pressure foams or improper application of the foam may cause the window frame to bow and hinder operation.
- Page 7 D. Install wood blocking between the top of the window and the soffit as shown. The blocking should be flush with the exterior of the window frame. E. Notch the retainer leg of the top and bottom frame expanders. Hold the frame expander so it is centered on the center window, and mark the frame expander at the center of the wedge that is between the windows.
-
Page 8: Exterior Finish
Pella ® installation instructions; or the use of Pella products in wall systems which do not allow for proper management of moisture within the wall systems. The determination of the suitability of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella. -
Page 9: Mantenimiento
Corporation Pella aprobadas sido hayan producto modificaciones Pella. instalación instrucciones acuerdo estar deberá pared barrera sistemas Pella productos instalación arriba, mencionados estados pared. barreras sistemas instaladas puertas Pella ventanas responsabilidad asume tipo ningún garantía otorga Pella Colorado,... - Page 10 fabricante. instrucciones según techos para material Instale interiores jambas extensiones Instale (incluidas). sellador. exceso limpie trabaje Moldee, cabecero. marco sellador reborde Aplique extensor superior parte sobre abertura doble mirador adicional Ranura Ventana exterior jamba Cubierta traseros sellador Varilla Sellador contraerse. expandirse capaz flexible,...
- Page 11 intemperie. resistente barrera superponiéndola jamba, cubierta superior extremo encima (7,60 pulgadas tapajuntas cinta Aplique (15,24 ventana. marco altura largos más pulgadas sean tapajuntas cinta trozos Corte centro. extremo cada clavo Exterior pared jambas cubiertas Clave utilizando window Double-hung groove Accessory cover jamb Exterior...
- Page 12 más. libras 1300 sostener pueden superior techo/marco miembros necesarias angulares refuerzo barras saliente. unidad asiento tabla colocará artículos peso cuenta tenga peso, cálculo realice Cuando saliente. unidad peso sostener ayudar para angulares refuerzo barras instalación recomienda necesarios. pueden ajustes, futuros imposibilitará...
- Page 13 posición. abrazadera 1" colocar hasta ajuste cable, abrazadera centrales, agujeros cada tornillo Inserte cable. abrazadera esquina tornillos Ajuste cable. ASIENTO abrazadera base debajo cuelgue TABLA cable correcto largo Asegúrese cable. abrazadera redondo agujero cable Inserte cable. abrazadera CABECERO base desde cuelga cable correcto...
- Page 14 nivelada. esté cabecero tabla Asegúrese centro. (40,64 pulgadas más calzas Coloque abertura, cabecero tabla entre abertura. ajustarla para cabecero, tabla través extremo, cada (12,7 pulgadas largo tornillo inserte acabado clavo Coloque Interior nivelada. esté asiento tabla Asegúrese centro. (40,64 pulgadas más abertura calzas/espaciadores...
- Page 15 Espuma • ventana) tubo calidad sellador para Pistola • alta exteriores para poliuretano silicona Sellador • general equivalente Pella ventanas puertas para aislamiento ® para cuchillo Tijeras • para metalizado relleno butilo tapajuntas Cinta • Grapadora • pies)
- Page 16 Pella limitada garantía siempre ® ángulo Refuerzos tapajuntas Cinta inferior marco Extensor cabecero marco Extensor techo viga Extremo jamba Cubiertas cables Abrazadera jambas Extensiones cruzado Refuerzo ASIeNTO TABLA MIRADOR VeNTANAS PARA INSTALACION INSTRUCCIONeS 80AT0102 No.: Pieza Corporation Pella ©2008...
