Pella HURRICANESHIELD 80GY0102 Installation Instructions Manual

Hurricaneshield impact-resistant casement and awning windows in wood frame construction
Hide thumbs

Advertisement

Quick Links

Download this manual

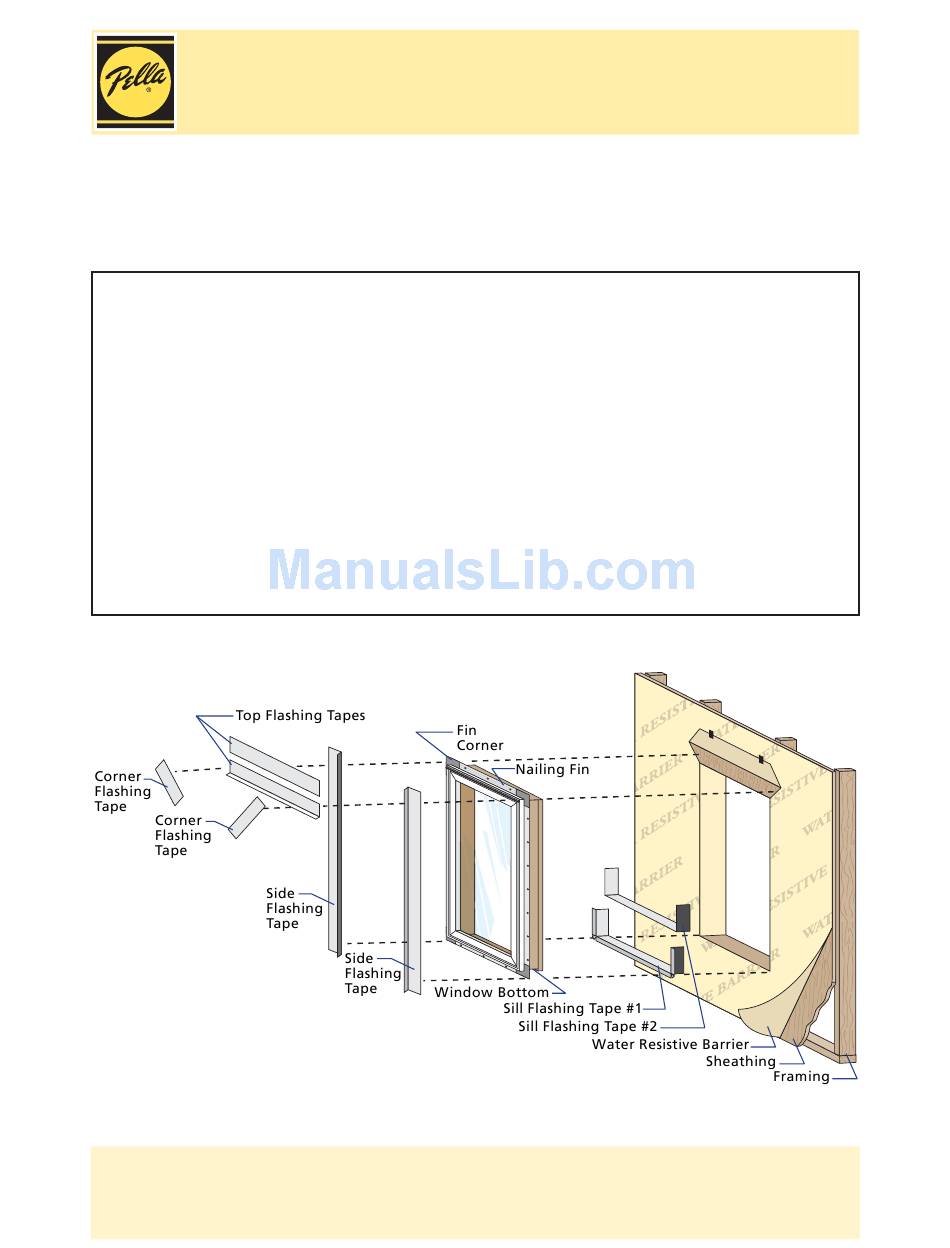

©2008 Pella Corporation
INSTALLATION INSTRUCTIONS - INSTRUCCIONES DE INSTALACION
FOR HURRICANESHIELD
CASEMENT AND AWNING WINDOWS IN WOOD FRAME CONSTRUCTION
These instructions were tested and are Dade County certified for single laminated glass and ASTM
(Hallmark) certified for laminated insulating glass.
Important Safety Information:
Pella® HurricaneShield
testing requirements of ASTM E 1886 and ASTM E 1996. Pella HurricaneShield products are
neither hurricane proof nor are they shatter proof. Severe wind and rain may produce temporary
conditions which exceed product performance standards. When these units are subjected to intense
storms or extreme conditions, which exceed the intended design pressures, air, water and flying debris
infiltration may occur. The performance of any building is dependent upon the design, installation,
and workmanship of the entire building system. Pella Corporation strongly recommends consulting
an experienced architect, contractor, or structural engineer prior to installation of Pella products.
The individual (building owner, architect, contractor, installer and/or consumer) responsible for the
project must take into account local conditions, building codes, inherent component limitations,
the effects of aging and weathering on building components, and other design issues relevant to each
project. The determination of the suitability of all building components for each project, as well
as the design and installation of flashing and sealing systems, are the responsibility of the building
owner, architect, contractor, installer and/or consumer.
®
Always read the Pella
Limited Warranty before purchasing or installing Pella products. By installing
this product, you are acknowledging that this Limited Warranty is part of the terms of the sale.
Failure to comply with all Pella installation and maintenance instructions may void your Pella
product warranty. See Limited Warranty for complete details at http://www.pella.com.
IMPACT-RESISTANT
®
®
products have been tested in accordance with the large missile impact
Part Number: 80GY0102

Advertisement

loading
Need help?

Need help?

Do you have a question about the HURRICANESHIELD 80GY0102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pella HURRICANESHIELD 80GY0102

Summary of Contents for Pella HURRICANESHIELD 80GY0102

  • Page 1 ASTM E 1886 and ASTM E 1996. Pella HurricaneShield products are neither hurricane proof nor are they shatter proof. Severe wind and rain may produce temporary conditions which exceed product performance standards.
  • Page 2 • #10 x 3-1/2" corrosion resistant wood screws (12 to 20) • Square • Closed cell foam backer rod/sealant backer (12 to 30 ft.) ® ™ • Pella SmartFlash foil backed butyl window and door • Hammer flashing tape or equivalent •...
  • Page 3 D. Fold the water resistive barrier (1D). Fold side and bottom flaps into the opening and staple to inside wall. Fold top flap up and temporarily fasten with flashing tape. E. Apply sill flashing tape #1. Cut a piece of flashing tape 12" longer than the opening width.
  • Page 4 B. Windows using Frame Screws: On the roomside of vent windows, drill 13/64" diameter clearance holes through the head, jambs and sill of the frame. Space the holes using the maximum end and on center spacings as shown on the placement diagram. Note: On vent casements, place the holes so that they do not interfere with the roto operator and the latch points on the lock side of the window.
  • Page 5 SETTING AND FASTENING THE WINDOW TWO OR MORE PEOPLE WILL BE REQUIRED FOR THE FOLLOWING STEPS. A. Insert the window from the exterior of the building. Place the bottom of the window on the spacers at the bottom of the opening, then tilt the top into position. Center the window between the sides of the opening to allow clearance for shimming, and insert one roofing nail in the first hole from the corner on each end of the top nailing fin.
  • Page 6 A. Apply side flashing tape. Cut two pieces of flashing tape 5" longer than the frame height of the window. Apply the tape 1/2" onto the frame cladding, over the fin and laps onto the water resistive barrier. The tape should extend 2"...

  • Page 7: Interior Seal

    B. Drill 1/8" x 1" deep pilot holes into the rough framing through the clearance holes in the unit frame. C. Fasten the window to the opening by driving #10 x 3-1/2" corrosion resistant wood screws into each of the pre-drilled clearance holes. Note: Screws MUST be driven straight or angled slightly toward the exterior to prevent interference with the lock mechanism.
  • Page 8 SEALING THE WINDOW TO THE EXTERIOR WALL CLADDING When applying siding, brick veneer or other exterior finish material, leave adequate space between the window frame and the material for sealant. Refer to the illustration that corresponds to your finish material. Note: The sealant details shown are standard recommendations from the sealant industry.

  • Page 9: Care And Maintenance

    The determination of the suitability of all building components, including the use of Pella products, as well as the design and installation of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella.
  • Page 10 INSTALLING ROTO COVER AND CRANK Note: Finish the interior of the window and allow the window to dry before proceeding with these instructions. (To open the window for finishing, partially insert the lock handle into the jamb, unlock the unit, temporarily attach the crank handle and turn to open.) A.
