© 2012 Pella Corporation

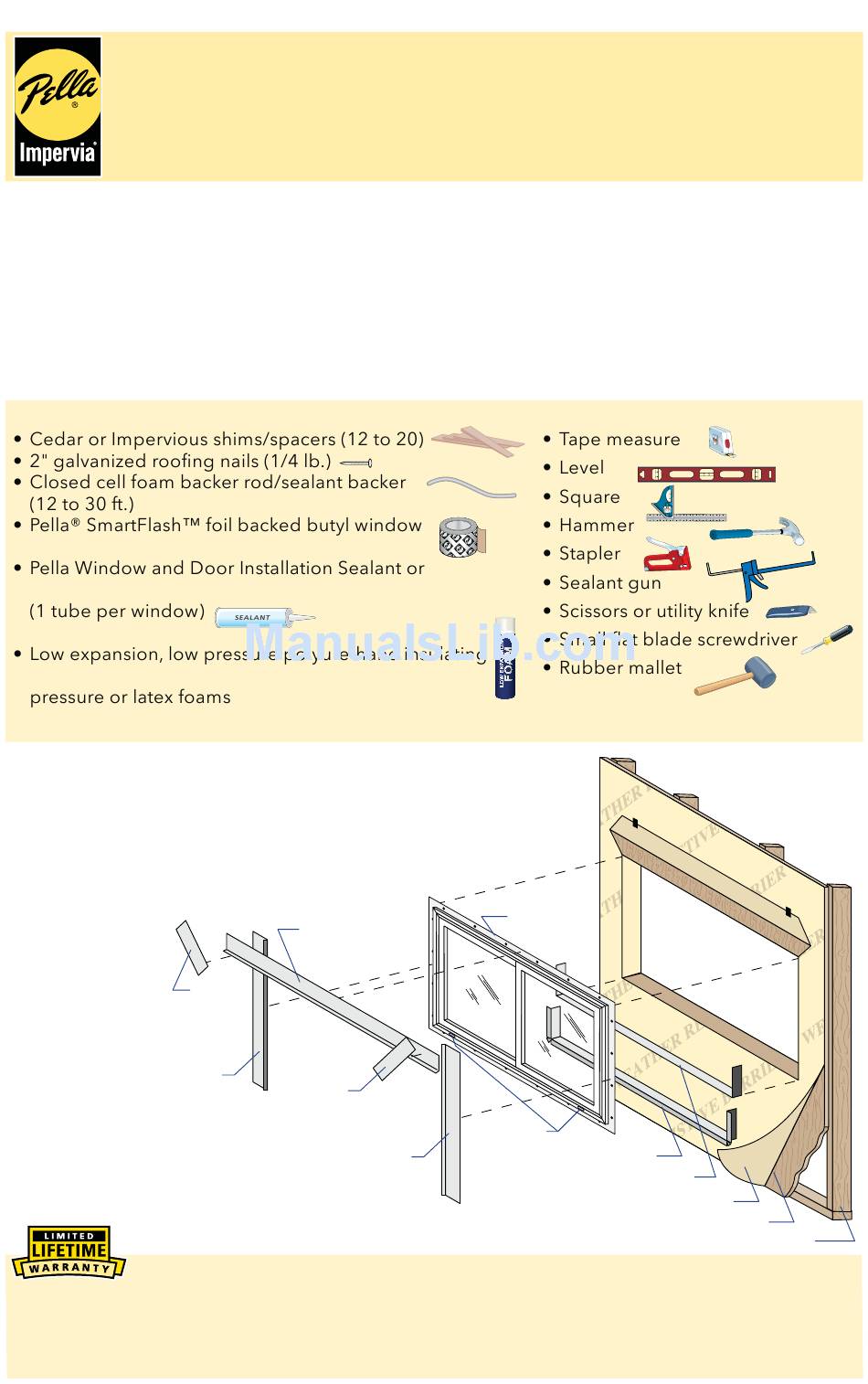

INSTALLATION INSTRUCTIONS
SLIDING, SINGLE-HUNG and FIXED WINDOW
WITH FINS
Installation Instructions for Typical Wood Frame Construction.
These instructions were developed and tested for use with typical wood frame wall
construction in a wall system designed to manage water. These instructions are not to
be used with any other construction method. Installation instructions for use with other
construction methods or multiple units may be obtained from Pella Corporation or a local
Pella retailer. Building designs, construction methods, building materials, and site conditions
unique to your project may require an installation method different from these instructions and
additional care. Determining the appropriate installation method is the responsibility of you,
your architect, or construction professional.
YOU WILL NEED TO SUPPLY:
and door flashing tape or equivalent
equivalent high quality, multi-purpose sealant
window and door foam sealant - DO NOT use high
Installation will require two or more persons for safety reasons.
REMEMBER TO USE APPROPRIATE
PERSONAL PROTECTIVE EQUIPMENT
Always read the Pella Impervia Limited Warranty before purchasing or installing
Pella Impervia products. By installing this product, you are acknowledging that this Limited
Warranty is part of the terms of the sale. Failure to comply with all Pella Impervia installation and
maintenance instructions may void your Pella Impervia product warranty. See Limited Warranty
for complete details on http://warranty.pellaimpervia.com.
Top
Flashing
Tape
Corner
Flashing
Tape
Side
Flashing
Corner
Tape
Flashing
Tape
Nailing Fin
Weep
Valves
Side
Sill Flashing Tape #1
Flashing
Tape
Part Number: 802Q0102
TOOLS REQUIRED:
Sill Flashing Tape #2
Weather Resistive Barrier
Sheathing
Framing
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pella 802Q0102
Summary of Contents for Pella 802Q0102
-
Page 1: Installation Instructions
Pella Impervia products. By installing this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella Impervia installation and maintenance instructions may void your Pella Impervia product warranty. See Limited Warranty... - Page 2 ROUGH OPENING PREPARATION A. Confirm the opening is plumb and level. In t e r io r Note: It is critical the bottom is level. B. Confirm the window will fit the opening. Measure all than the window in both width and height. On larger openings measure the width and height in several places to ensure the header or studs are not bowed.
- Page 3 SETTING AND FASTENING THE WINDOW A. Install and level shims. interior face of window. Adjust shims as necessary to ensure the sill is level. Once level, attach shims to prevent movement. Note: Improper placement of shims may result in bowing the bottom of the window.
- Page 4 INTEGRATING THE WINDOW TO THE WATER RESISTIVE BARRIER A. Apply side flashing tape. Cut two pieces of flashing B. Apply top flashing tape. Cut a piece of flashing tape long enough to go across the top of the window and top nailing fin as shown.
- Page 5 SEALING THE WINDOW TO THE EXTERIOR WALL CLADDING When applying siding, brick veneer or other exterior finish material, leave adequate space between the window frame and the material for sealant. Refer to the illustration corresponding to your finish material. Note: The sealant details shown are standard recommendations from the sealant industry. Contact your sealant supplier for recommendations and instructions for these and any other applications.
- Page 6 APPLYING INSTALLATION FINS Frame head groove frame sill groove located on the bottom window frame member. into the top of the frame jamb grooves located on the side frame members of the window. Slide the Note: The side fins must overlap the exterior of the bottom fin.
- Page 7 The determination of the suitability of all building components, including the use of Pella products, as well as the design and installation of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella.
