© 2012 Pella Corporation

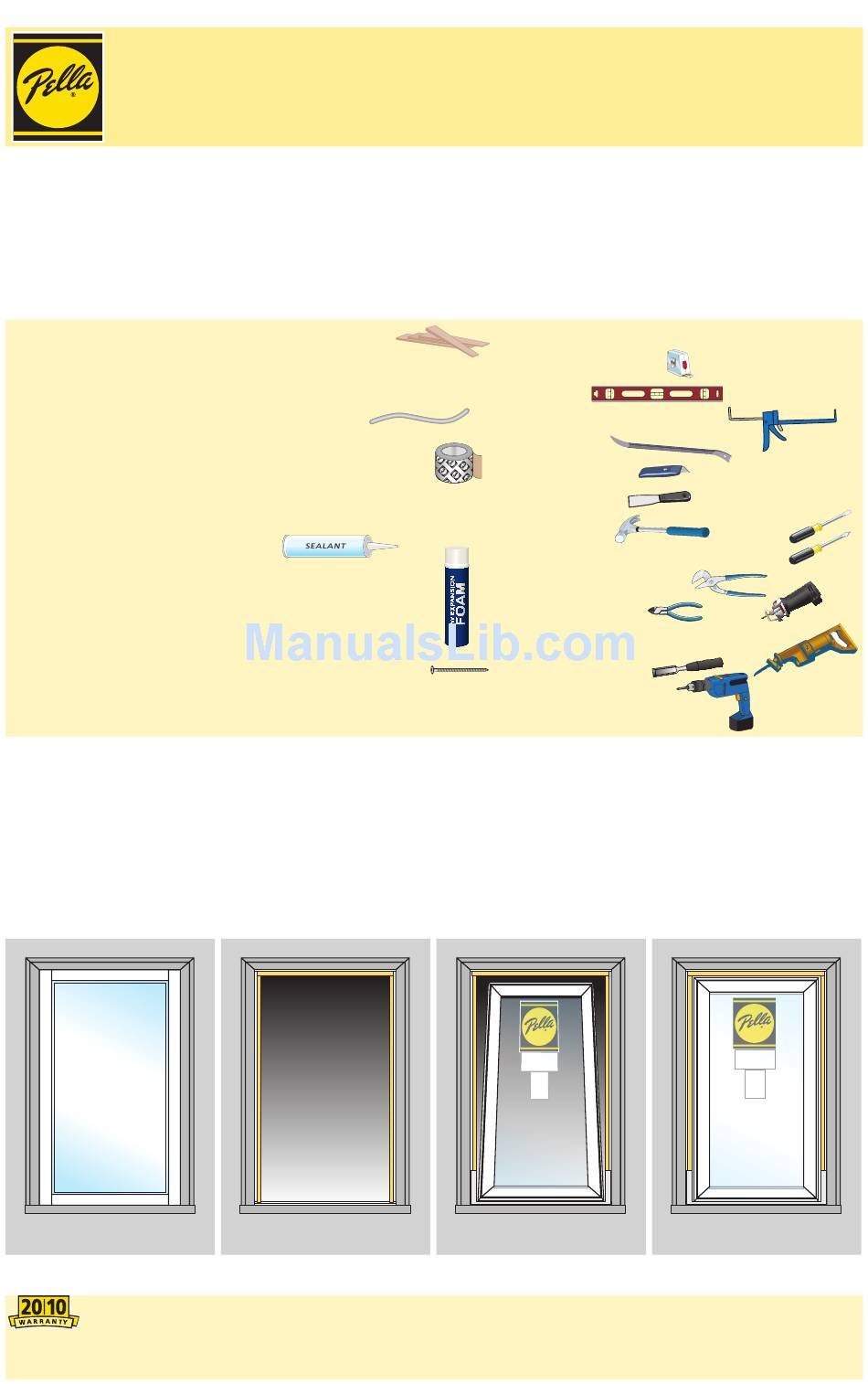

WINDOW REPLACEMENT INSTRUCTIONS FOR
CASEMENT, DOUBLE-HUNG AND CLAD FRAME WINDOWS
INTO EXISTING CASEMENT FRAME USING FRAME SCREWS
These instructions were tested and developed for replacing windows in wood-frame wall
construction systems designed to manage moisture. Installation recommendations for other types
of wall construction, wall systems or conditions, may be obtained from Pella Corporation or a
local Pella retailer. Building designs, construction methods, building materials, and site conditions
unique to your project may require an installation method different from these instructions and
additional care on your part. Determining the appropriate installation method is the responsibility
of you, your architect, or other construction professional.
YOU WILL NEED TO SUPPLY:
• Cedar or Impervious shims/spacers (12 to 20)
• Closed cell foam backer rod/sealant backer
(12 to 30 ft.)
• Pella
SmartFlash
®
and door flashing tape or equivalent
• Pella Window and Door Installation Sealant or
equivalent high quality, multi-purpose sealant
(1 tube per window)
• Low expansion, low pressure polyurethane
insulating window and door foam sealant.
DO NOT use high pressure or latex foams
• #8 x 3-1/4" Finish head screws (6 to 10 per
window)
Installation will require two or more persons for safety reasons.
REMEMBER TO USE APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT.
This method of installation involves removing the sash only of the existing window. The original
window frame will remain in place and only the existing sash, frame stops and frame hardware
must be removed.
CAUTION: Many windows in older homes are painted with lead-based paint. Removal of old
windows may disturb this paint. Proper precautions must be taken to minimize exposure to dust
and debris. Consult state or local authorities for more information.
EXTERIOR
EXISTING WINDOW
Always read the Pella
product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to
comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited
Warranty for complete details at http://warranty.pella.com.
foil backed butyl window
™
EXTERIOR
REMOVE EXISTING
SASH and STOPS
Limited Warranty before purchasing or installing Pella products. By installing this
®
TOOLS REQUIRED:
• Tape measure
• Level
• Sealant gun
• Prybar
• Utility knife
• Putty knife
• Hammer
• Screwdrivers (Flat & Phillips)
• Adjustable pliers
• Side cutters
• Roto-tool, reciprocating saw
• Wood chisel
• 1/8" drill bit
• Drill
EXTERIOR
INSERT REPLACEMENT
WINDOW
Part Number: 80WW0101
EXTERIOR
REPLACEMENT WINDOW
INSTALLED
Advertisement
Table of Contents
Related Manuals for Pella 80WW0101
Summary of Contents for Pella 80WW0101
- Page 1 SASH and STOPS INSTALLED WINDOW Always read the Pella Limited Warranty before purchasing or installing Pella products. By installing this ® product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for complete details at http://warranty.pella.com.
- Page 2 REMOVE THE EXISTING SASH Note: Remove the new window from its packaging. Inspect and measure the new window to confirm it will fit into the HEAD STOP opening prior to removing the existing window. A. Remove the existing sash. This will vary per manufacturer of the existing window. Removing the hinge and operator JAMB STOPS fasteners will generally allow the sash to be removed from...
- Page 3 WINDOW PREPARATION A. Casement: On the room side of the window drill 1/8" diameter clearance holes through the head, jambs and sill of the frame. Space the holes a maximum of 6" from each end and a maximum of 16" on EVERY center. 6" 16" 6" Note: On vent Drill 1/8" casements, place the clearance hole holes so they do not 6" 6" interfere with the roto operator and the latch points on the lock side Single EVERY EVERY...
- Page 4 SETTING AND FASTENING THE WINDOW TWO OR MORE PEOPLE ARE REQUIRED FOR THE FOLLOWING STEPS. Note: Because there are no stops in the opening to place the window against, be sure to hold the window in place when performing Steps 4A thru 4C. EXTERIOR A. Insert the replacement window in the opening by first placing the bottom of the window on top of the shims on...
- Page 5 INTERIOR SEAL CAUTION: Ensure use of low pressure polyurethane window and door insulating foams and strictly follow the foam manufacturer’s recommendations for application. Use of high pressure foams or improper application of the foam may cause the window frame to bow and hinder operation.
- Page 6 After finishing, allow venting windows and doors to dry completely before closing them. Pella Corporation is not responsible for interior paint and stain finish imperfections for any product that is not factory-applied by Pella Corporation. Use of inappropriate finishes, solvents, brickwash, or cleaning chemicals will cause adverse reactions with the window and door materials and voids the Limited Warranty. For additional information on finishing see Pella Owner’s Manual or go to www.pella.com. CARE AND MAINTENANCE Care and maintenance information is available by contacting your local Pella retailer. This information is also available at www.pella.com.
- Page 7 The determination of the suitability of all building components, including the use of Pella products, as well as the design and installation of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella.
- Page 8 LOCK LEVER REMOVAL AND INSERTION Note: You may want to remove the lock lever prior to finishing the window, or if it needs to be replaced with a lock lever in a different finish. A. Unlock and open the window. B.
