Pella 80GZ0102 Installation Instructions Manual

Advanced performance and hurricaneshield impact resistant clad frame and circle head windows in wood frame construction

Advertisement

©2008 Pella Corporation

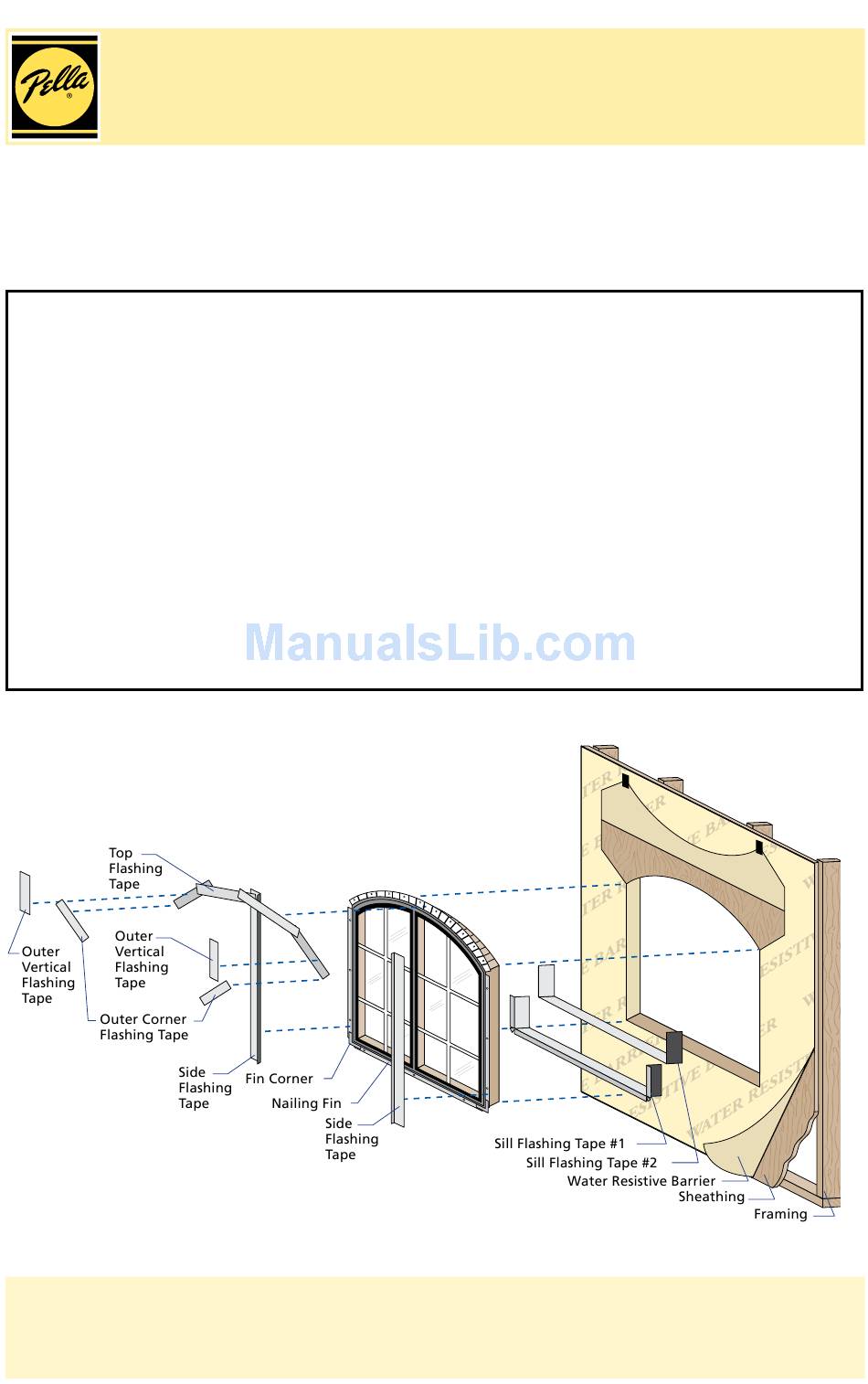

INSTALLATION INSTRUCTIONS - INSTRUCCIONES DE INSTALACION
ADVANCED PERFORMANCE AND HURRICANESHIELD® IMPACT RESISTANT
CLAD FRAME AND CIRCLE HEAD WINDOWS IN WOOD FRAME CONSTRUCTION
These instructions were tested and are Dade County certified for single laminated glass and
ASTM (Hallmark) certified for laminated insulating glass.
Important Safety Information:
®
Pella
HurricaneShield
testing requirements of ASTM E 1886 and ASTM E 1996. Pella HurricaneShield products are
neither hurricane proof nor are they shatter proof. Severe wind and rain may produce temporary
conditions which exceed product performance standards. When these units are subjected to
intense storms or extreme conditions, which exceed the intended design pressures, air, water and
flying debris infiltration may occur. The performance of any building is dependent upon the
design, installation, and workmanship of the entire building system. Pella Corporation strongly
recommends consulting an experienced architect, contractor, or structural engineer prior to
installation of Pella products.
The individual (building owner, architect, contractor, installer and/or consumer) responsible
for the project must take into account local conditions, building codes, inherent component
limitations, the effects of aging and weathering on building components, and other design issues
relevant to each project. The determination of the suitability of all building components for each
project, as well as the design and installation of flashing and sealing systems, are the responsibility
of the building owner, architect, contractor, installer and/or consumer.
Always read the Pella
this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure
to comply with Pella installation and maintenance instructions may void your Pella product warranty.
See Limited Warranty for complete details at http://warranty.pella.com.
®
products have been tested in accordance with the large missile impact
®
Limited Warranty before purchasing or installing Pella products. By installing
Part Number: 80GZ0102

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80GZ0102 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pella 80GZ0102

  • Page 1 ASTM E 1886 and ASTM E 1996. Pella HurricaneShield products are neither hurricane proof nor are they shatter proof. Severe wind and rain may produce temporary conditions which exceed product performance standards.
  • Page 2 YOU WILL NEED TO SUPPLY: TOOLS REQUIRED: sealant (1 tube per window) ™ Window and Door Insulating Foam Sealant by the Dow Chemical Company or equivalent DO NOT use high pressure or latex foams REMEMBER TO USE APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT. ROUGH OPENING PREPARATION A.
  • Page 3 E. Apply sill flashing tape #1. longer than the opening width. Apply at the bottom of the Note: The tape is cut 12" longer than the width so that it will extend 6" up each side of the opening. F. Tab the sill flashing tape and fold. exterior and press firmly to adhere it to the water resistive barrier.
  • Page 4 SETTING AND FASTENING THE WINDOW TWO OR MORE PEOPLE WILL BE REQUIRED FOR THE FOLLOWING STEPS. A. Insert the window from the exterior of the building. Place the bottom of the window on the spacers at the bottom of the opening, then tilt the top into position.
  • Page 5 INTEGRATING THE WINDOW TO THE WATER RESISTIVE BARRIER A. Units that do not have pre-applied fin corners: Cut four pieces of flashing tape tape to each end of the sill fin so that it fin. Apply one piece of flashing tape to the bottom end of each flexible vinyl fin, and lapping over the flashing tape that extends from the end of the sill fin.
  • Page 6 C1. Rectangular window: Apply top flashing tape. Cut two pieces of flashing tape long enough to go across the top of the window and cladding, covering the fin and lapping onto the water resistive barrier. Fold the overlapping tape down, and press all tape down firmly. Apply the second piece of tape just above and overlapping tape down firmly.
  • Page 7: Interior Seal

    INTERIOR SEAL Caution: Ensure use of low pressure polyurethane window and door insulating foams and strictly follow the foam manufacturer’s recommendations for application. Use of high pressure foams or improper application of the foam may cause the window frame to bow and hinder operation.
  • Page 8: Exterior Finish

    If products cannot be finished immediately, cover with clear plastic to protect from dirt, damage and Remove sanding dust. Pella products must be finished per the below instructions; failure to follow these instructions voids the Limited Warranty. on the vertical sash edges may cause the sash to stick; it is optional to paint, stain or finish the Note: To maintain proper product performance do not paint, finish or remove the weather-...
  • Page 9: Important Notice

    The determination of the suitability of all building components, including the use of Pella products, as well as the design and installation of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella.
