©2008 Pella Corporation
INSTALLATION INSTRUCTIONS - INSTRUCCIONES DE INSTALACION
FOR HURRICANESHIELD
DOUBLE-HUNG, SINGLE-HUNG AND SIMULATED-HUNG
Instrucciones en español en el reverso.

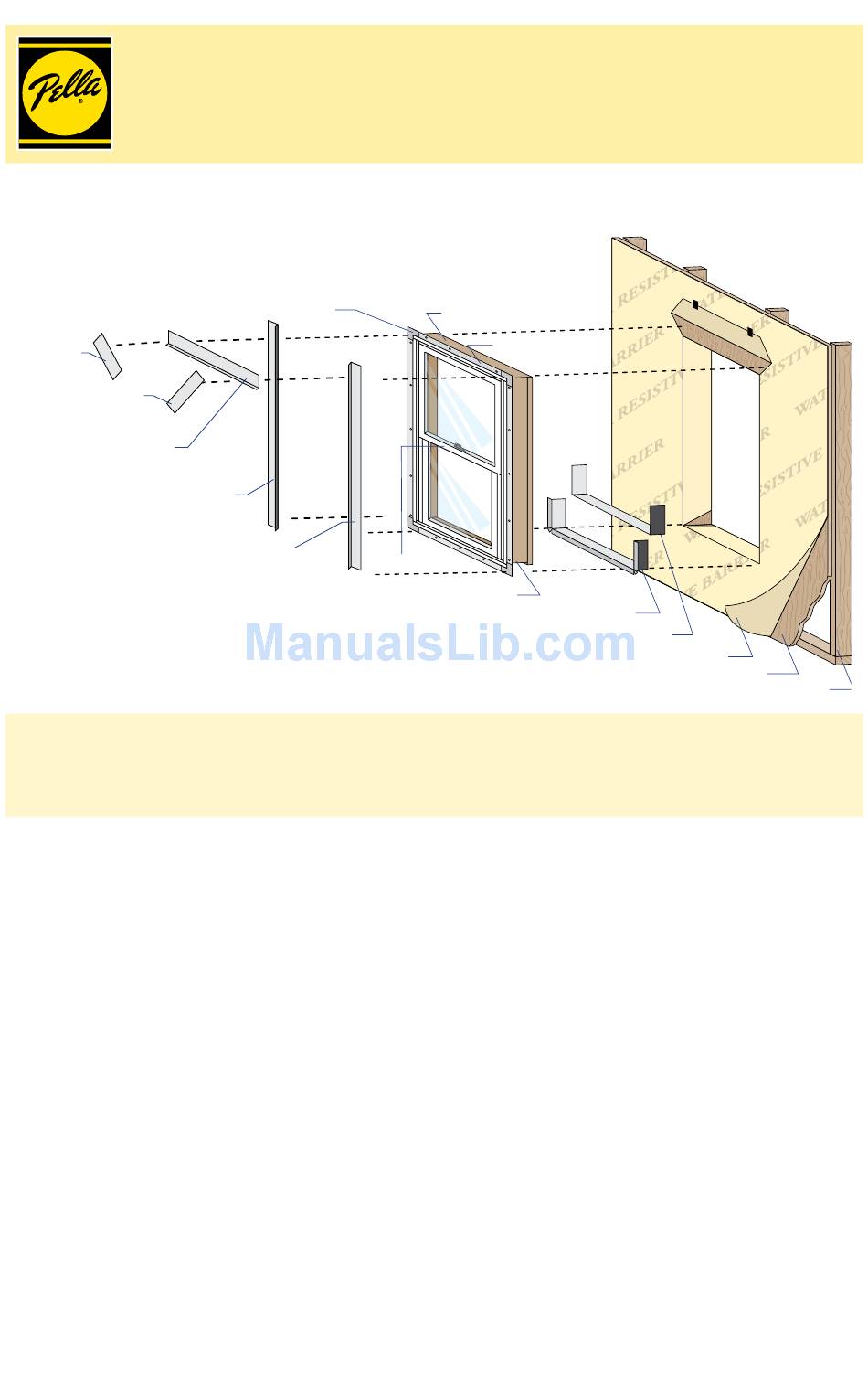

Corner
Flashing
Tape
Corner
Flashing
Tape
Top
Flashing
Tape
Always read the Pella
this product, you are acknowledging that this Limited Warranty is part of the terms of the sale.
Failure to comply with all Pella installation and maintenance instructions may void your Pella
product warranty. See Limited Warranty for complete details at http://www.pella.com.
Important Safety Information:
Pella
®
HurricaneShield
requirements of ASTM E 1886 and ASTM E 1996. Pella HurricaneShield Products are neither
hurricane proof nor are they shatter proof. Severe wind and rain may produce temporary conditions
which exceed product performance standards. When these units are subjected to intense storms or
extreme conditions, which exceed the intended design pressures, air, water and flying debris infiltration
may occur.
The performance of any building is dependent upon the design, installation, and workmanship of the
entire building system. Pella Corporation strongly recommends consulting an experienced architect,
contractor, or structural engineer prior to installation of Pella products.
The individual (building owner, architect, contractor, installer and/or consumer) responsible for the
project must take into account local conditions, building codes, inherent component limitations,
the effects of aging and weathering on building components, and other design issues relevant to each
project.
The determination of the suitability of all building components for each project, as well as the design
and installation of flashing and sealing systems, are the responsibility of the building owner, architect,
contractor, installer and/or consumer.
Fin
Corner
Side
Flashing
Tape
Side
Flashing
Tape
™
Limited Warranty before purchasing or installing Pella products. By installing
®
Products have been tested in accordance with the large missile impact testing
IMPACT-RESISTANT
®
Window Top
Nailing Fin
Checkrail
Window Bottom
Sill Flashing Tape #1
Sill Flashing Tape #2
Part Number: 80ED0101
Water Resistive Barrier
Sheathing
Framing
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pella HURRICANESHIELD 80ED0101
Summary of Contents for Pella HURRICANESHIELD 80ED0101
- Page 1 Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty. See Limited Warranty for complete details at http://www.pella.com.
- Page 2 YOU WILL NEED TO SUPPLY: TOOLS REQUIRED: equivalent screws for concrete applications ® SmartFlash ™ foil backed butyl window and door flashing tape or equivalent sealant (1 tube per window) ™ Window and Door Insulating Foam Sealant by the Dow Chemical Company or equivalent low pressure polyurethane window and door foam - DO NOT use high pressure or latex foams INSTALLATION CLIP OPTION:...
- Page 3 Apply sill flashing tape #2. Cut a piece of flashing tape 12" longer 1 " at least 1". DO NOT allow the tape to extend past the interior face of Note: The flashing tape may not fully cover the framing members. H.
- Page 4 B. Plumb and square window. INTERIOR Frame screw method: Place shims 1" from the bottom and top of the window between the window and the sides of the opening. Adjust the shims as required to plumb and square the window in the opening. Place shims at the midpoint of the window sides.
- Page 5 FRAME SCREW METHOD A. Mark the location of the top of the lower sash on the rough opening. Interior Note: Marking this location is needed for the correct placement of the frame screws. Top of lower sash B. Simulated-hung only: Remove the simulated-hung Finger slides are located on the...
- Page 6 I. From the room side of the window, clearance holes through the head, jambs and sill of the frame. HEAD Space the holes as shown. Drill 13/64” diameter clearance hole. Drill 13/64” diameter clearance hole. SILL Drill 1/8” x 1”diameter pilot hole thru frame and into rough opening.
- Page 7 C. Fold down top flap of water resistive barrier (6C). E X T E R I O D. Apply flashing tape to diagonal cuts. Cut pieces of flashing tape at least 1" longer than the diagonal cuts in the water resistive barrier. Apply the tape covering the entire diagonal cut in the water resistive barrier at both upper corners of the window.
- Page 8 The determination of the suitability of all building components, including the use of Pella products, as well as the design and installation of flashing and sealing systems are the responsibility of the Buyer or User, the architect, contractor, installer, or other construction professional and are not the responsibility of Pella.
