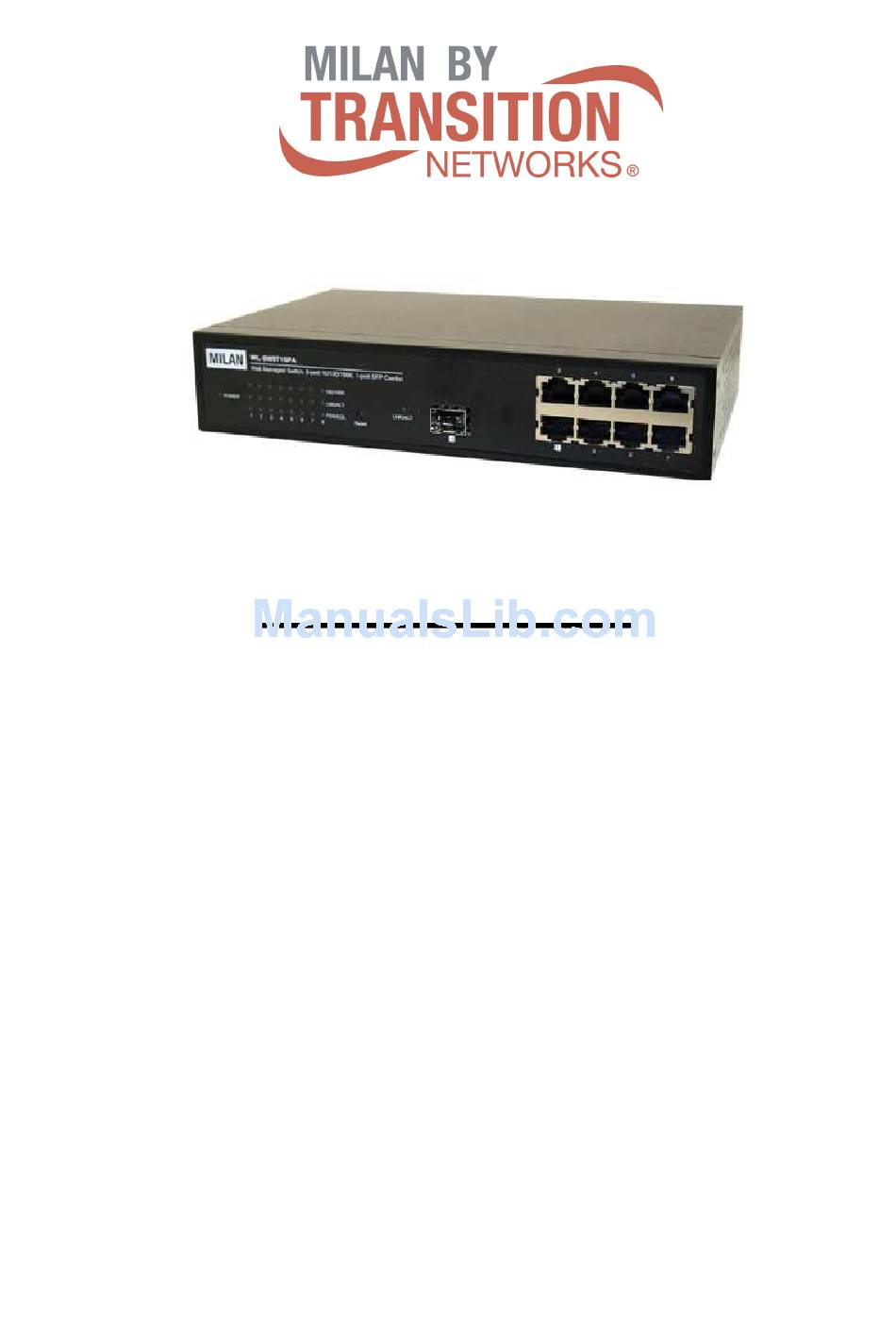

Page 1: User Guide
MIL-SW8T1GPA 8 Port 10/100/1000BASE-T with 1 Combo 1000BASE-X SFP Port Web Managed Switch User Guide Rev.A0 19-May-10... - Page 2 In no event shall Transition Networks be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Table Of Contents
Content INTRODUCTION ................3 Features........................3 Software Feature......................4 Package Contents....................5 HARDWARE DESCRIPTION ............7 Physical dimension ....................7 Front Panel ......................7 Rear Panel .......................8 LED Indicators......................9 Desktop Installation....................10 Attaching Rubber Pads ...................10 Power On .......................10 NETWORK APPLICATION ............12 Small Workgroup....................12 Segment Bridge .....................13 WEB-BASED MANAGEMENT............ - Page 4 Spanning Tree ....................... 25 RSTP System Configuration................25 RSTP Port Configuration ................27 Spanning Tree Status .................... 27 802.1X Configuration ..................... 28 Parameters Configuration................29 QoS Setting ......................30 System Restart ...................... 33 Factory Default ...................... 33 Firmware Upload ....................33 Configuration File Transfer ..................
-
Page 5: Introduction
Introduction The 8 10/100/1000T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch that can be used to build high-performance switched workgroup networks. The switch is targeted at workgroup or department. The 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch features a Store-and-Forward Switching scheme that offers low latency for high-speed networking and allows the switch to auto-learn and store source address in a 8K-entry MAC address table. -
Page 6: Software Feature
VLAN Port Based VLAN IEEE 802.1Q VLANs. Up to 256 groups Support DHCP client Support Class of Service Support Spanning Tree 9K Jumbo Frame support Software Feature Management Web Management Firmware update Web UI firmware update One default button for system default Default IP: 192.168.1.77 System default Subnet Mask: 255.255.255.0... -
Page 7: Package Contents
Port based Quality of Service Tag based IPv4 Type of Service Class of Service Per port support 4 priority queues IEEE802.1w rapid spanning tree and compatible Spanning Tree with IEEE 802.1d Package Contents Unpack the contents of the 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo Web-Smart Switch and verify them against the checklist below: 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo Web Managed Switch... - Page 8 item is missing or damaged, please contact the local dealer for exchanging.
-
Page 9: Hardware Description
Hardware Description This section mainly describes the hardware of the 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web-Smart Switch and gives a physical and functional overview on certain switch. Physical dimension The 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch’s physical dimension is 217 x 140 x 43 mm (L x W x H). -
Page 10: Rear Panel
Switch RJ-45 Ports (Auto MDI/MDIX): 7x 10/100/1000 N-way auto-sensing for 10Base-T, 100Base-TX or 1000Base-T connections. In general, MDI means connecting to another Hub or Switch while MDIX means connecting to a workstation or PC. Therefore, Auto MDI/MDIX would allow connecting to another Switch or workstation without changing non-crossover or crossover cabling. -
Page 11: Led Indicators
LED Indicators The LED Indicators display real-time information of systematic operation status. The following table provides descriptions of LED status and their meaning. LED Panel of 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch Status Color Description Green Power On Power... -
Page 12: Desktop Installation
Collision of Packets occurs in the Blinks Orange port Half-duplex mode or no device attached The port is successfully connecting Green with the device The port is receiving or transmitting LNK /ACT Blinks Green (MINI GBIC) data No data transmitted or no device connected The Description of LED Indicators Desktop Installation... - Page 13 other side of power adaptor connects to the power outlet. The external power supply in the switch works with the AC power from 100 to 240V. Please check with the power indicator on the front panel to see if power is properly supplied.
-
Page 14: Network Application
Network Application This section provides user a few samples of network topology in which the switch is used. In general, the 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch is designed as a segment switch. That is, with its address table (8k MAC address) and high performance, it is ideal for interconnecting networking segments. -
Page 15: Segment Bridge
Segment Bridge For enterprise networks where large data broadcasts are constantly processed, this switch is an ideal solution for department users to connect to the corporate backbone. Use two 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch with PCs, print server, and local server attached, are both connecting to the core switch. -
Page 17: Web-Based Management
Web-Based Management This section introduces the function configuration of the 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch. About Web-based Management On the CPU board of the switch there is an embedded HTML web site residing in flash memory, which offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. -
Page 18: System Configuration
Launch the Internet Explorer Key in “http://” + “IP Address” of the 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch, and then press “Enter” Login screen will appear right after Key in the password(The default password is “root”) And then, click Apply , and then configuration is ready to be set up Main Interface... - Page 19 time the client/switch boots and the lease is 50% or more passed, the client/switch will attempt to renew the lease. At 87.5% of the lease completion, the client/switch will attempt to contact any DHCP server for a new lease System Configuration interface DHCP Enable: To enable DHCP Client Function Fallback IP Address: Assigning the switch IP address(The default IP is 192.168.1.77)
-
Page 20: Port Configuration
remote management that include telnet, SNMP, and Web browse the switch only when the port of VLAN group ID is equal to the Management VLAN ID Name: the name of the switch Password: Web GUI login password. The default password is root Inactivity Timeout: The web connection timeout time And then, click Apply... -
Page 21: Statistics Overview
Port Configuration interface Statistics Overview The following information provides the current port statistic information Press Clear button to clean all counts And then, click Refresh to get the new setting information as below: Statistics Overview interface... -
Page 22: Statistics Detail
Statistics Detail The following information provides statistic detail information of statistic on each port, and simply selecting the port to viewing the statistic information. Press Clear button to clean all counts And then, click Refresh to get the new setting information as below: Statistics Detail interface VLAN Setting A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain,... -
Page 23: Vlan Port Setting
And then, click Apply to bring up the configuration interface as below: VLAN Setting interface VLAN Port Setting Click VLAN Port Setting to bring up the configuration interface for adjusting the VID Setting PVID: Enter the Port VLAN ID Awareness: Enable the awareness that ports will strip the VLAN tag from received frames and insert the tag in transmitted frames (PVID). -
Page 24: Port Trunk
in transmitted frames Frame Type: To set the outgoing frames Tagged: Outgoing frames with VLAN-Tagged All: All type of frames After that, click Apply to apply the configuration Or, click Refresh to reset the configuration before applying VLAN Port Setting interface Port Trunk Port trunk allows multiple links to be bundled together and act as a single physical link for increased throughput. -
Page 25: Lacp Setting
Grouping the members of Trunk. Normal means the port is not trunk port And then, click Apply to apply the configuration Or, click Refresh to reset the configuration before applying Port Trunk interface LACP Setting The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation... -
Page 26: Lacp Status
Or, click Refresh to reset the configuration before applying LACP Setting interface LACP Status When the LACP aggregator had been setup, the LACP status information will display as below:... -
Page 27: Spanning Tree
LACP Status interface Spanning Tree The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol. - Page 28 lowest value has the highest priority and is selected as the root. If the value has being changed, user has to reboot the switch. The value must be multiple of 4096 according to the protocol standard rule. Hello Time (1-10): The scale of 1~10 sec will be set as a period of time that how often the switch broadcasts hello messages to other switches Max Age (6-40): The number of seconds (from 6~ 40) which determines the amount of time that protocol information received on a port is stored by the...
-
Page 29: Rstp Port Configuration
RSTP Port Configuration Protocol Enable: To enable or disable the port protocol Edge: The port directly connected to end stations cannot create bridging loop in the network. To configure the port as an edge port, mark the port Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port. -
Page 30: 802.1X Configuration
RSTP Status interface 802.1X Configuration 802.1x is an IEEE authentication specification that allows a client to connect to a wireless access point or wired switch but prevents the client from gaining access to the Internet until it provides credentials, like a user name and password that are verified by a separate server. -
Page 31: Parameters Configuration
Or, click Refresh to reset the configuration before applying 802.1X Configuration interface Parameters Configuration Reauthentication Enable: To enable the re-authentication mode Reauthentication period (1~3600 seconds): Set the period of time after which clients connected must be re-authenticated EPA Timeout (1~255 seconds): Set the period of time the switch waits for a supplicant response to an EAP request And then, click Apply... -
Page 32: Qos Setting
QoS Setting Configuring QoS mode of the port and per port priority, TOS and COS priority setting. Mode: Select the QoS mode – port, DSCP, or vlantag Port Priority: Select the priority level – low, normal, medium, or high And then, click Apply to apply the configuration Or, click... - Page 33 QoS Configuration interface Click DSCP Mapping to enter TOS priority configuration interface DSCP [0- 63]: The system provides 0~63 TOS priority level. When the IP packet is received, the system will check the TOS level value in the IP packet that has received. For example: user set the TOS level 25 is high. The port 1 is following the TOS priority policy.
- Page 34 QoS DSCP Mapping interface Click VLAN tag Mapping to enter VLAN tag priority configuration interface. Select the VLAN tag priority level: High, Medium, Normal and Low. And then, click Apply to apply the configuration Or, press Refresh to reset the configuration before applying QoS VLAN Tag Priority Mapping interface...
-
Page 35: System Restart
System Restart Reboot the switch in software reset. All the configurations will be reminded Click Yes to restart the system System Restart interface Factory Default Reset switch to default configuration Click Yes to reset the all configuration to the default value Factory Default interface Firmware Upload The system provides the Web GUI firmware update function which would allow the... -
Page 36: Configuration File Transfer
And then, press Upload to update the firmware Firmware Upload interface Configuration File Transfer The system provides the Web GUI configuration upload function which would allow the user to backup the switch configuration. Browse Click to locate the path for Uploading And then, press Upload to update the configuration file And then, press Download to download the configuration file... -
Page 37: Troubleshooting
Troubleshooting This section is intended to help user solve the most common problems on the 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch with. Incorrect connections The switch port can auto detect straight or crossover cable when link switch with other Ethernet device. -
Page 38: Improper Network Topologies
100 Ω Category 5 cable for 100Mbps connections. Also be sure that the length of any twisted-pair connection does not exceed 100 meters (328 feet). Gigabit port should use Cat-5 or cat-5e cable for 1000Mbps connections. The length does not exceed 100 meters. -
Page 39: Technical Specification
Technical Specification This section provides the specifications of 8 10/100/1000Base-T with 1 1000Base-X SFP/RJ45 Combo port Web Managed Switch with. IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow Control and Back-pressure Standard IEEE 802.1w Rapid Spanning Tree IEEE 802.3ad Port trunk with LACP... - Page 40 Per unit: Power 10BASE-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100BASE-TX: 2-pair UTP/STP CAT. 5 cable Network Cable EIA/TIA-568 100-ohm (100m) Gigabit Copper: 4 pair UTP/STP CAT. 5 cable EIA/TIA 568 100-ohm (100M) Gigabit copper: 8 x RJ-45 with Auto-MDIX Connector SFP port: 1 x SFP slot (3.3v) Back-plane...
- Page 41 Operating Humidity 10% to 90% (Non-condensing) FCC Class A Safety 10900 Red Circle Drive Minnetonka, MN 55344 Tel.: +1.952.941.7600 techsupport@transition.com...
