User's Guide
SISTF10xx-140-LR(T)
SISTF10xx-160-LR(T)
SISTF10xx-170-LR(T)
Stand-Alone Ethernet Switch
• 10Base-T / 100Base-TX to 100Base-FX
• Extended Temperature
• Hazardous Environment
Transition Networks industrial Ethernet switch
connects 10Base-T / 100Base-TX twisted-pair
copper cable to 100Base-FX fiber-optic cable. It is
designed for harsh industrial environments and is
also available in models that operate in either

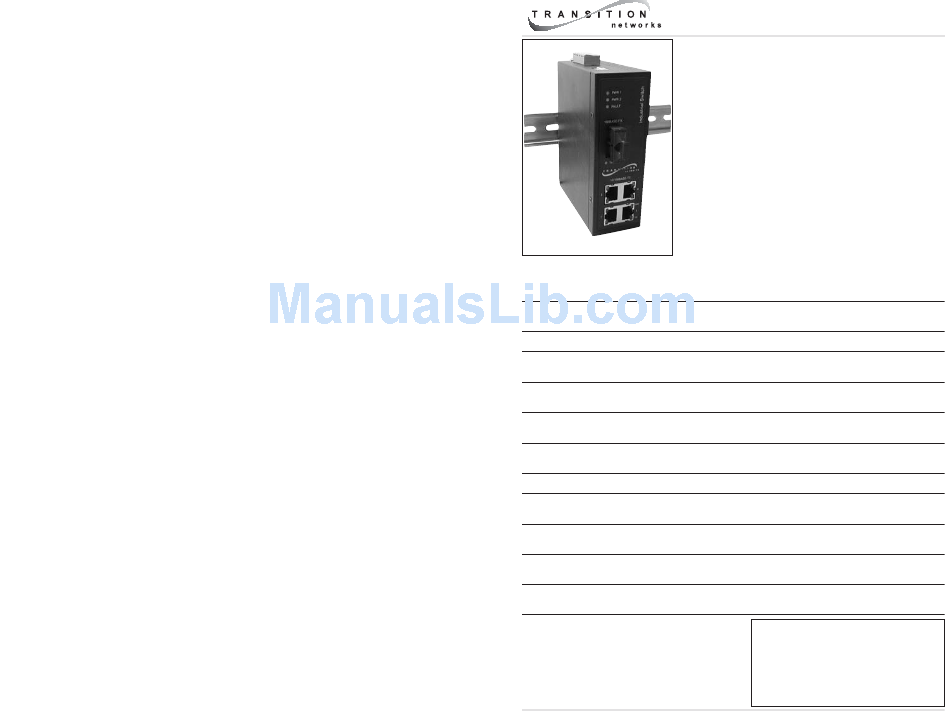

SISTF10xx-140-LR(T)
standard or extended temperature ranges.
The SISTF10xx-140-LR(T) model includes four (4) copper RJ-45 ports and one (1)
duplex fiber-optic port.
Part Number
Ports 1 - 4: Copper
10Base-T/100Base-TX
Standard Temperature Models: 0°C to 60°C (32°F to 140°F):
SISTF1011-140-LR
RJ-45
100 m (328 ft)*
SISTF1012-140-LR
RJ-45
100 m (328 ft)*
SISTF1013-140-LR
RJ-45
100 m (328 ft)*
SISTF1014-140-LR
RJ-45
100 m (328 ft)*
Extended Temperature Models: -40°C to 75°C (-40°F to 167°F):
SISTF1011-140-LRT
RJ-45
100 m (328 ft)*
SISTF1012-140-LRT
RJ-45
100 m (328 ft)*
SISTF1013-140-LRT
RJ-45
100 m (328 ft)*
SISTF1014-140-LRT
RJ-45
100 m (328 ft)*
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network
installation.
Port 5: Duplex Fiber-Optic
100Base-FX Duplex
ST, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
15 km (9.3 miles)*
ST, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
15 km (9.3 miles)*
Installation . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . .12
Technical Specifications . . . . . . .15
Troubleshooting . . . . . . . . . . . . .17
Compliance Information . . . . . . .20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SISTF10XX-140-LR(T) and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks SISTF10XX-140-LR(T)

  • Page 1 Stand-Alone Ethernet Switch • 10Base-T / 100Base-TX to 100Base-FX • Extended Temperature • Hazardous Environment Transition Networks industrial Ethernet switch connects 10Base-T / 100Base-TX twisted-pair copper cable to 100Base-FX fiber-optic cable. It is designed for harsh industrial environments and is...
  • Page 2 SISTF10xx-140-LR(T) / -160-LR(T) / -170-LR(T) SISTF10xx-160-LR(T) The SISTF10xx-160-LR(T) model includes six (6) copper RJ-45 ports and two (2) duplex fiber-optic ports. Part Number Ports 1 - 6: Copper Ports 7 & 8: Duplex Fiber-Optic 10Base-T/100Base-TX 100Base-FX Duplex Standard Temperature Models: 0°C to 60°C (32°F to 140°F): SISTF1011-160-LR RJ-45 ST, 1300 nm multimode...
  • Page 3: Installation

    SISTF10xx-140-LR(T) / -160-LR(T) / -170-LR(T) Installation DIN-Rail Mount The Ethernet switch includes an aluminum DIN-Rail mounting plate attached to the device’s back panel. To mount the device onto a DIN-Rail: Insert the top of the DIN-Rail into the upper slot of the mounting plate. The stiff metal spring should be positioned behind the DIN-Rail.
  • Page 4 SISTF10xx-140-LR(T) / -160-LR(T) / -170-LR(T) Installation -- Continued Set the Port Alarm Switches The port alarm feature is used to determine faults at the copper or fiber ports. The dip switches are located on the top panel of the device. Use a small flat blade screwdriver or a similar device to set the switches.
  • Page 5: Operation

    SISTF10xx-140-LR(T) / -160-LR(T) / -170-LR(T) Installation -- Continued Power the Ethernet switch This device is suitable for use in Class I, Division 2, Groups A, B, C and D or non-hazardous locations only. WARNING: EXPLOSION HAZARD - Do not disconnect equipment unless power has been removed or the area is known to be non- hazardous.
  • Page 6 SISTF10xx-140-LR(T) / -160-LR(T) / -170-LR(T) Operation -- Continued Status LEDs Use the status LEDs to monitor the Ethernet switch operation in the network. Power and Fault LEDs The three LEDs near the top indicate the power and fault status: PWR1 (amber) on = Primary power is connected to device.
  • Page 7: Cable Specifications

    SISTF10xx-140-LR(T) / -160-LR(T) / -170-LR(T) Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm Standard Models SISTF1011-140-LR SISTF1011-160-LR...
  • Page 8: Technical Specifications

    Twisted Pair #1 Twisted Pair #1 Twisted Pair #2 Twisted Pair #2 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 Technical Specifications For use with Transition Networks Model Ethernet switch or equivalent Standards: Data Rate: Processing Type: Dimensions: Weight: Input Voltage:...
  • Page 9: Technical Specification

    SISTF10xx-140-LR(T) / -160-LR(T) / -170-LR(T) Technical Specification -- Continued This device has been evaluated as EEx nC IIC T4 equipment under DEMKO Certificate No. 03 ATEX 0324537U. Each module is suitable for use in Zone 2 Explosive Atmospheres. The device must be installed in a minimum IP 54 enclosure as defined in IEC 60529 and EN 60529.
  • Page 10 1-800-260-1312 International: 00-1-952-941-7600 Transition Now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-Based Seminars Transition Networks provides seminars via live web-based training. Log onto www.transition.com and click the Learning Center link.
  • Page 11: Compliance Information

    All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
