Summary of Contents for Transition Networks S8TB
-

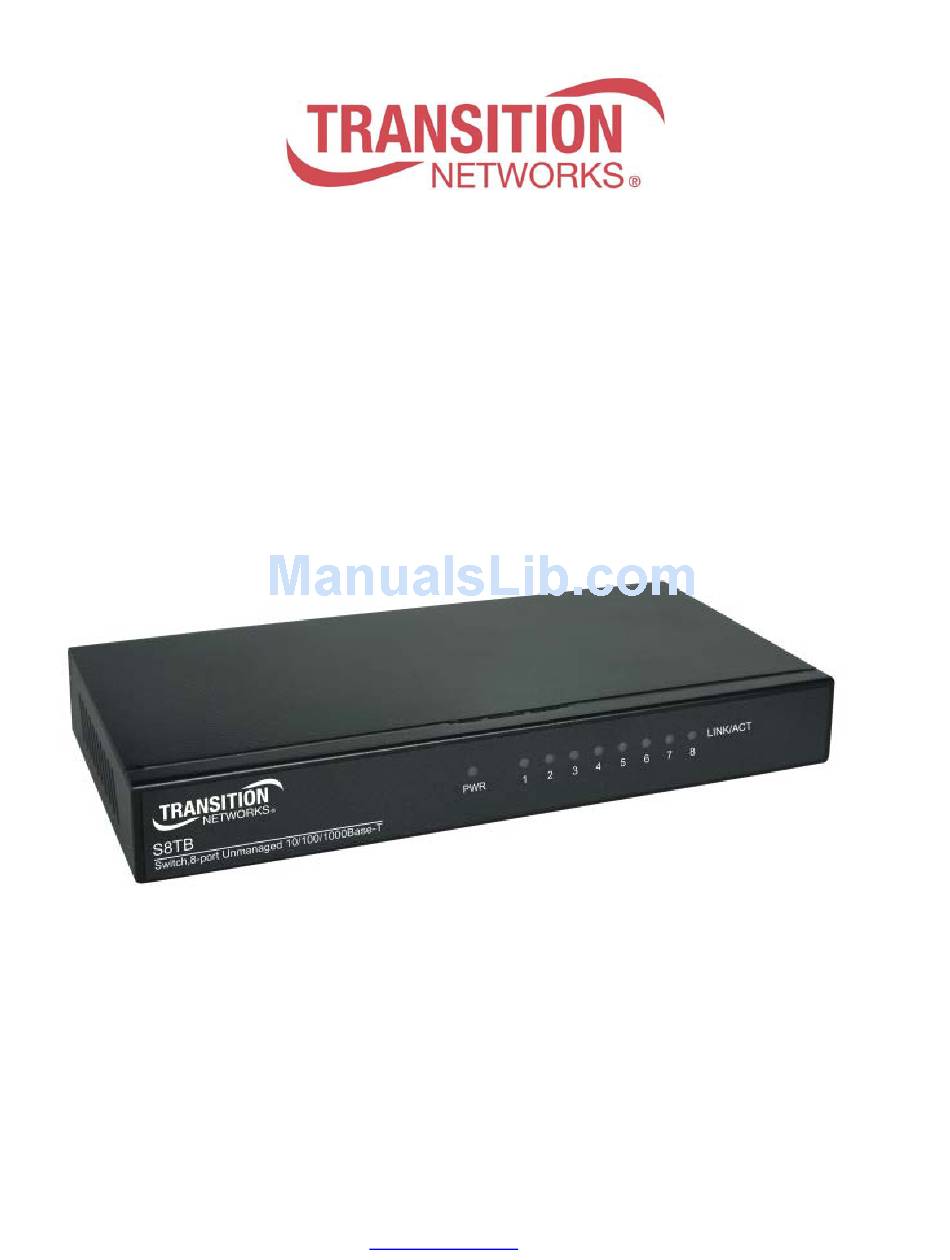

Page 1: User Guide

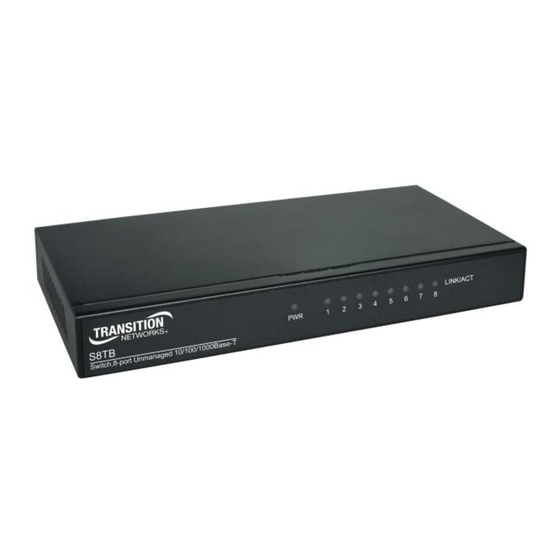

Transition Networks S8TB User Guide S8TB 8-Port 10/100/1000BASE-T Compact Switch User Guide 33672 Rev. A 33672 Rev. A www.transition.com Page 1 of 9... -
Page 2: Regulatory Approvals
(2006/95/EC) issued by the Commission of the European Community Compliance with these directives imply conformity to the following European Norms: EN55022 (CISPR 22) - Radio Frequency Interference EN60950 (IEC950) - Product Safety S8TB - 8-Port 10/100/1000BASE-T Compact Switch User Guide, PN 33672 Rev. A Record of Revisions Rev. Date... -
Page 3: Table Of Contents
Transition Networks S8TB User Guide Contents Regulatory Approvals ..............................2 Record of Revisions ..............................2 1. Introduction ................................4 Features ..................................4 Package Contents ..............................4 Ethernet Switching Technology ..........................5 2. Hardware Description ............................6 Physical Dimensions ...............................6 LED Indicators .................................6 LED Indicator Descriptions ..........................6 Power On ................................6 3. -
Page 4: Introduction
One Wall Mount Kit (two brackets) Compare the contents of your S8TB package with the standard checklist above. If any item is missing or damaged, please contact your local dealer for service. Save the packaging materials for possible future use. -
Page 5: Ethernet Switching Technology
Transition Networks S8TB User Guide Ethernet Switching Technology Ethernet Switching Technology dramatically boosted the total bandwidth of a network, eliminated congestion problems inherent in Carrier Sense Multiple Access with Collision Detection (CSMA/CD) protocol, and greatly reduced unnecessary transmissions. With this revolutionized networking, the system is capable of: First, allows two-way, simultaneous transmissions over the same port (Full-duplex) to essentially double the bandwidth. -
Page 6: Hardware Description
Transition Networks S8TB User Guide 2. Hardware Description This section mainly describes the hardware of the 8-port 10/100/1000Base-T Switch, and gives a physical and functional overview of the Switch. Physical Dimensions The physical dimension of the 8-port 10/100/1000Base-T Switch is 165mm x 32.5mm x 100 mm (W x H x D). -
Page 7: Troubleshooting
Transition Networks S8TB User Guide 3. Troubleshooting This section is intended to help you solve the most common problems on the S8TB switch. Incorrect Connections • Faulty or loose cables Look for loose or obviously faulty connections. If they appear to be OK, make sure the connections are snug. -
Page 8: Technical Specifications
Transition Networks S8TB User Guide 4. Technical Specifications This section provides the specifications of the S8TB switch, and the following table lists these specifications. IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet Standards IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3x Duplex Flow Control IEEE802.3az EEE... - Page 9 Minnetonka, MN 55344 United States of America Telephone: +1.800.526.9267 Fax: +1.952.941.2322 http://www.transition.com info@ Transition.com © Copyright 2015 Transition Networks. All rights reserved. S8TB - 8-Port 10/100/1000BASE-T Compact Switch User Guide, PN 33672 Rev. A 33672 Rev. A www.transition.com Page 9 of 9...
