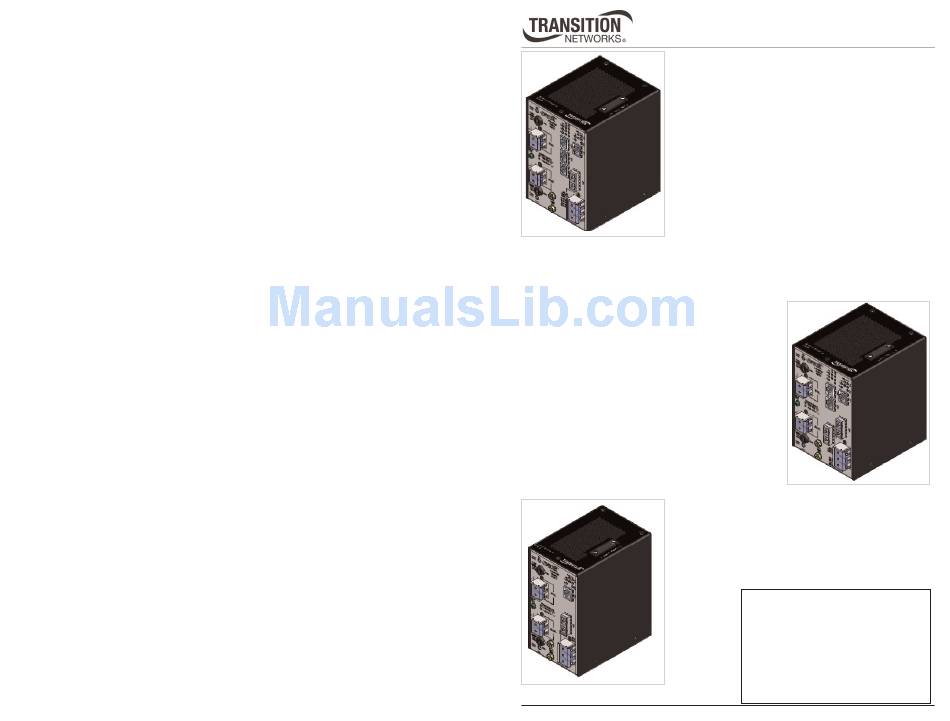

User's Guide
SIBTF10xx-1xx-MR & SIBTF10xx-1xx-MS
Substation-Rated Industrial Ethernet Switch
•
•
The SIBTF10xx-1xx-Mx Ethernet industrial switches
allow connecting 10Base-T Ethernet/100Base-TX fast
Ethernet twisted-pair copper network devices to
network devices on a 100Base-FX fast Ethernet fiber
network.
140-MR
The SIBTF10xx-140-MR has four RJ-45 copper ports
and one fiber port. The SIBTF10xx-140-MR model includes redundant power-supply
terminal blocks that can handle 48-170VDC or 90-125VAC, 50/60Hz input power. The
SIBTF10xx-140-MS model, not shown, has a single power-supply terminal block (TB).
The SIBTF10xx-130-MR has three RJ-45 copper ports
and two fiber ports. The SIBTF10xx-130-MR model
includes redundant power-supply terminal blocks that
can handle 48-170VDC or 90-125VAC, 50/60Hz
input power. The SIBTF10xx-130-MS model, not
shown, has a single power-supply terminal block (TB).
The SIBTF10xx-110-MR has one RJ-45 copper port
and one fiber port. The SIBTF10xx-110-MR model
includes redundant power-supply terminal blocks that
can handle 48-170VDC or 90-125VAC, 50/60Hz
input power. The SIBTF10xx-110-MS model, not
shown, has a single power-supply terminal block (TB).
110-MR
10/100Base-TX to 100Base-FX
Single or Redundant Wide Input Power
Supply
Available Models . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . .15
Cable Specifications . . . . . . . . . .20
Technical Specifications . . . . . . .22
Troubleshooting . . . . . . . . . . . . .24
Contact Us . . . . . . . . . . . . . . . . .26
Compliance Information . . . . . . .27
130-MR
Advertisement
Table of Contents
Related Manuals for Transition Networks SIBTF10XX-1XX-MR
Summary of Contents for Transition Networks SIBTF10XX-1XX-MR
-
Page 1: Table Of Contents
User’s Guide SIBTF10xx-1xx-MR & SIBTF10xx-1xx-MS Substation-Rated Industrial Ethernet Switch • 10/100Base-TX to 100Base-FX • Single or Redundant Wide Input Power Supply The SIBTF10xx-1xx-Mx Ethernet industrial switches allow connecting 10Base-T Ethernet/100Base-TX fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX fast Ethernet fiber network. -
Page 2: Available Models
SIBTF10xx-1xx-Mx Available Models Available SIBTF10xx-140-MR and MS models* Part Number (4) Copper - 10Base-T/ (1) Duplex Fiber-Optic - 100Base-FX port 100Base-TX ports SIBTF1011-140-Mx RJ-45 ST, 1300 nm multimode, duplex 100 m (328 ft) 2 km (1.2 miles) SIBTF1013-140-Mx RJ-45 SC, 1300 nm multimode, duplex 100 m (328 ft) 2 km (1.2 miles) RJ-45... -
Page 3: Installation
SIBTF10xx-1xx-Mx Installation Features • The SIBTF10xx-140-MR industrial switch includes four (4) RJ-45, twisted-pair copper ports and one (1) 100 Mb fiber optic port. • The Auto-Negotiation feature on port “1” can be turned OFF and forced to a selected speed (100 Mb/s or 10 Mb/s) also duplex mode (full or half). •... -
Page 4: Setting Configuration Switches
SIBTF10xx-1xx-Mx Installation -- continued Features -- continued • The SIBTF10xx-110-MS industrial switch includes one (1) RJ-45, twisted-pair copper port and one (1) 100 Mb fiber optic port. • The Auto-Negotiation feature on port “1” can be turned OFF and forced to a selected speed (100 Mb/s or 10 Mb/s) and duplex mode (full or half). -
Page 5: Dip Switch Settings
SIBTF10xx-1xx-Mx Installation -- continued DIP switch settings 1. Port 1 copper Auto-Negotiation: UP (Enabled) - Advertises switch speed and mode capabilities to the network: • 100Mb/s full-duplex • 100Mb/s half-duplex, • 10Mb/s full-duplex • 10Mb/s half-duplex. DOWN (Disabled) - Does not advertise switch speed and mode capabilities to the network. - Page 6 SIBTF10xx-1xx-Mx Installation -- continued WARNING: Make sure that the external power source is turned OFF before attempting to connect power leads to the industrial switch. Failure to observe this warning could result in an electrical shock. WARNING: The SIBTF10xx-1xx-Mx is a class I device. It has a provision for protective earth grounding.
- Page 7 SIBTF10xx-1xx-Mx Installation -- continued Internal relay connections The internal relay can activate an external fault indicator. The fault indicator connects to the relay contacts on the front panel. An example would be a fault circuit connected to a warning light located in a control room. The light can be connected in a normally open (NO) or normally closed (NC) configuration with respect to circuit common (C) to turn the light ON/OFF when a fault occurs.
-
Page 8: Operation
SIBTF10xx-1xx-Mx Installation -- continued Installing fiber cable To install a fiber cable, view Figure 10, and then do the following: 1. Locate or build 100Base-FX fiber cable with male, two-stranded TX to RX connectors installed at both ends. 2. Connect the fiber cables to the industrial switch as follows: •... -
Page 9: Product Features
512 BT, the path is good. For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition Networks website at: www.transition.com. techsupport@transition.com -- Click the “Transition Now” link for a live Web chat. -
Page 10: Replacing The Fuse
SIBTF10xx-1xx-Mx Operation -- continued Product features -- continued Auto-Negotiation The Auto-Negotiation feature allows the SIBTF10xx-1xx industrial switch to configure itself to achieve the best possible mode of operation over a link automatically. The industrial switch broadcasts its speed (10 Mb/s or 100 Mb/s) and duplex capabilities (full or half) to the other devices and negotiates the best mode of operation. -
Page 11: Copper Cable
SIBTF10xx-1xx-Mx Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Copper Cable (Minimum requirement for 10 Mb/s operation) Category 3: Gauge 24 to 22 AWG Attenuation 11.5 dB/100m @ 5-10 MHz Maximum Cable Distance 100 meters Category 5: (Minimum requirement for 100 Mb/s operation) Gauge 24 to 22 AWG... -
Page 12: Technical Specifications
SIBTF10xx-1xx-Mx Technical Specifications For use with Transition Networks Model SIBTF10xx-1xx-Mx or equivalent. Standards: IEEE 802.3™ 2000, IEEE 802.3x™ Data Rate: 10 Mb/s, 100 Mb/s (copper), 100 Mb/s (fiber) Dimensions: Models 130- & 140-Mx (W x H x D) 4.125" x 6" x 5" (104.77 x 152.4 x 127 mm) -
Page 13: Troubleshooting
SIBTF10xx-1xx-Mx Technical Specification -- continued EMC Type Tests -- Continued Standard Description Compliance Level IEEE1613, Power Substation Testing -- Continued IEEE1613, Clause 7.3.2 Class 2 transverse mode Class 1 common mode Class 2 transverse mode Class 1 common mode Class 1 common mode Class 1 common mode Class 1 common mode IEEE1613, Clause 8... -
Page 14: Contact Us
öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten verstösst gegen die In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can... - Page 15 All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or means (graphic, electronic, mechanical) without written permission from Transition Networks.
