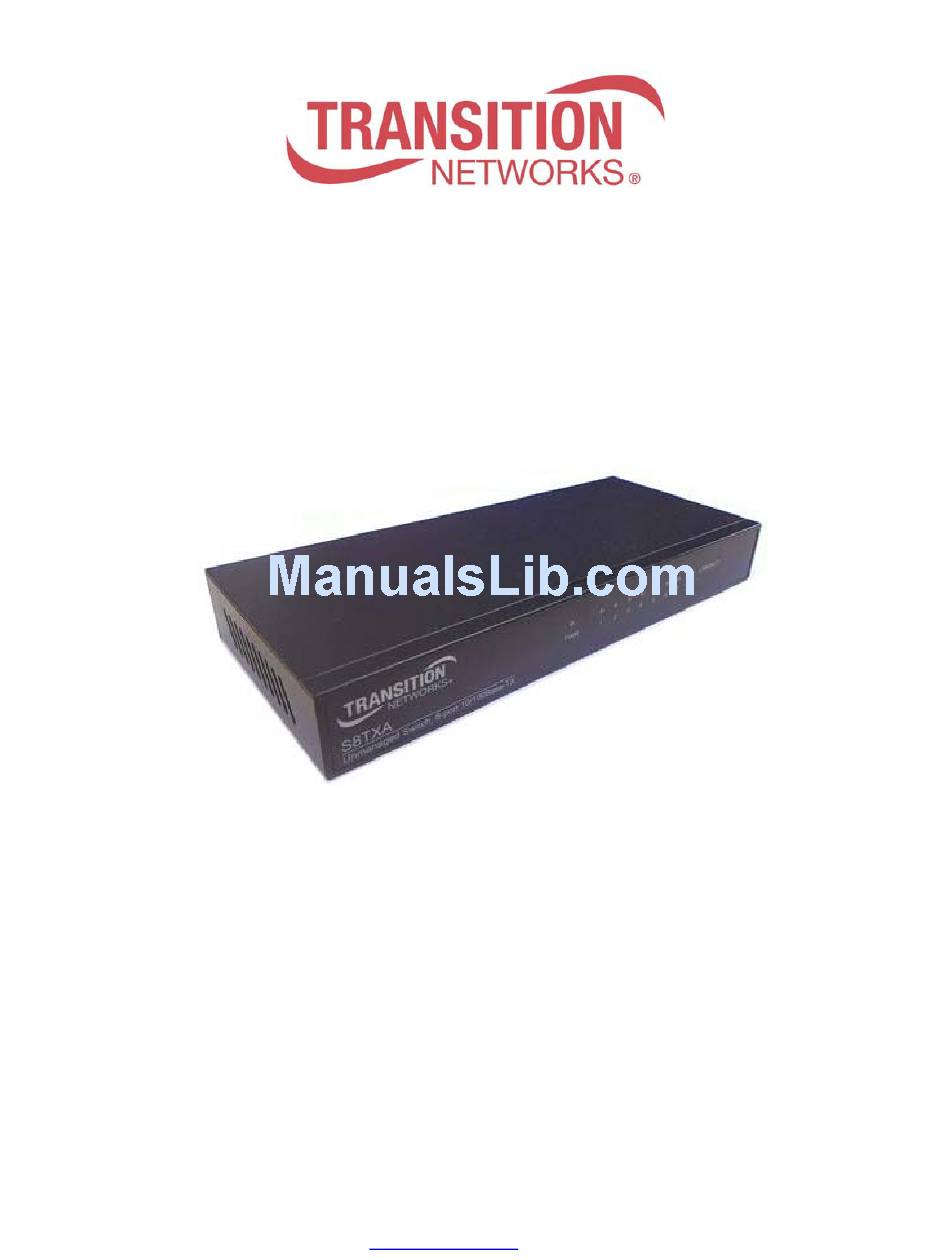

Page 1: User Guide
Transition Networks S8TXA User Guide S8TXA 8-Port 10/100BASE-TX Compact Switch User Guide 33673 Rev. A 33673 Rev. A www.transition.com Page 1 of 9... -
Page 2: Regulatory Approvals
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. S8TXA - 8-Port 10/100BASE-TX Compact Switch User Guide, 33673 Rev. A Record of Revisions Rev. -
Page 3: Table Of Contents
Transition Networks S8TXA User Guide Contents Regulatory Approvals ..............................2 Record of Revisions ..............................2 1. Introduction ................................4 Features ..................................4 Package Contents ..............................4 2. Hardware Description ............................5 Front Panel ................................5 Rear Panel ................................5 LED Indicators .................................6 LED Indicator Descriptions ..........................6 3. Quick Installation ..............................7 Power On ................................7... -
Page 4: Introduction
□ One Wall-Mount Kit Compare the contents of your S8TXA package with the checklist above. If any item is missing or damaged, contact your local dealer for service. Please save the package materials for possible future use. 33673 Rev. A www.transition.com... -
Page 5: Hardware Description
The S8TXA physical dimensions are193mm x 84mm x 26 mm (L x W x H). Front Panel The front panel of the S8TXA front panel includes LED-indicators (Link/Activity) for each Fast Ethernet port and power LED-indicator for unit, as shown below. -
Page 6: Led Indicators
Transition Networks S8TXA User Guide LED Indicators The LED Indicators give a real-time indication of system operating statuses. There is one LED indicator (LNK/ACT) for each Fast Ethernet port and one Power LED for the device, as shown below. S8TXA LED Indicators LED Indicator Descriptions The following table provides descriptions of LEDs status and their meaning. -
Page 7: Quick Installation
Transition Networks S8TXA User Guide 3. Quick Installation • The 8-Port Switch should be placed in a well-ventilated room with proper temperature and humidity. • Do not place the unit near water. • The maximum distance between the ports to the standard network interface is 100 meters. -
Page 8: Technical Specifications
Transition Networks S8TXA User Guide 4. Technical Specifications The following table provides the Switch technical specifications. IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Flow Control and Back-pressure Protocol CSMA/CD Technology Store and Forward switching architecture... - Page 9 Minnetonka, MN 55344 United States of America Telephone: +1.800.526.9267 Fax: +1.952.941.2322 http://www.transition.com info@ Transition.com © Copyright 2015 Transition Networks. All rights reserved. S8TXA - 8-Port 10/100BASE-TX Compact Switch User Guide, 33673 Rev. A 33673 Rev. A www.transition.com Page 9 of 9...
