Valcom IP Solutions VIP-810 User Manual page 3

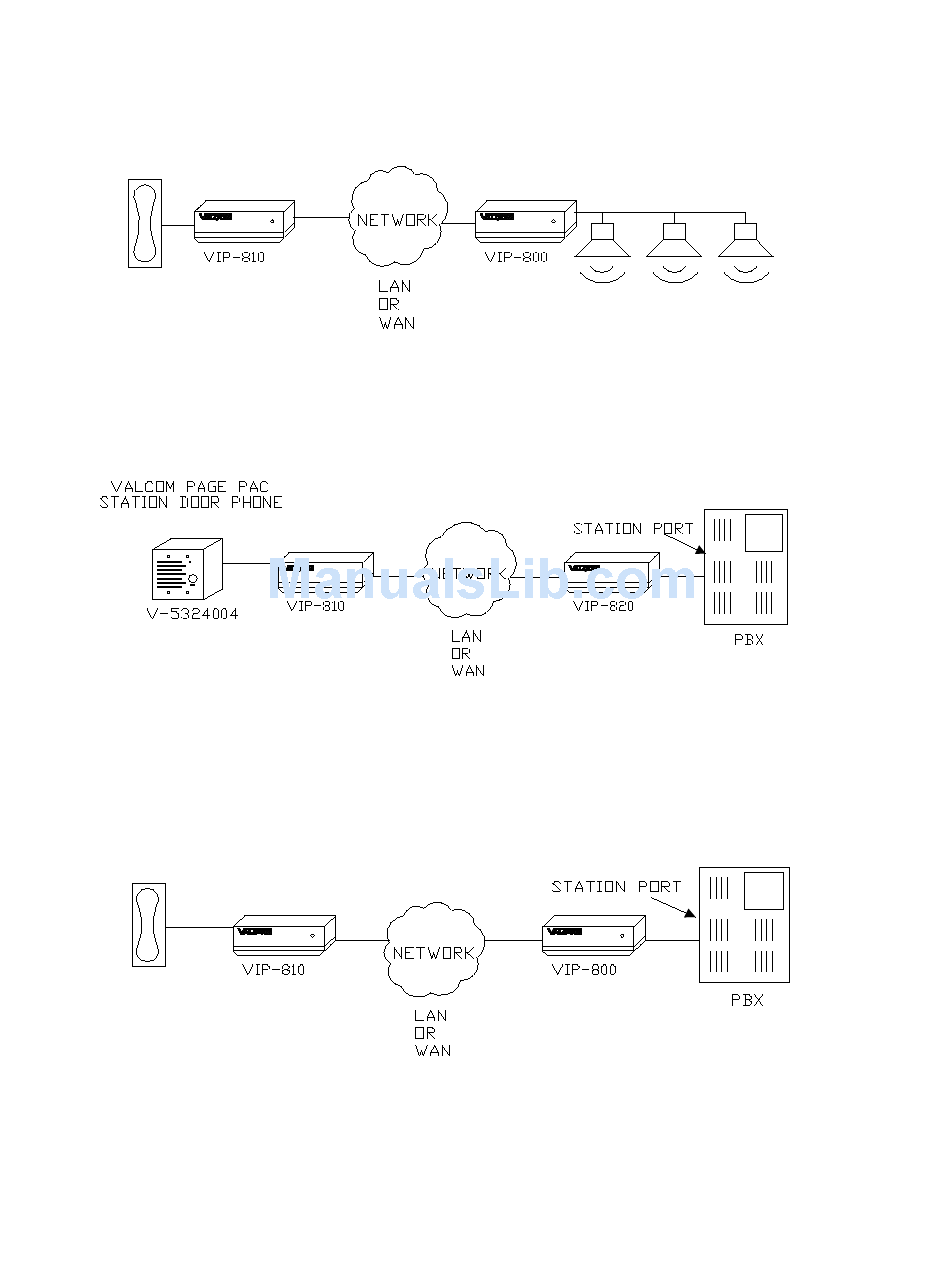

In this example, the VIP-810 and VIP-800 are connected to the data network as a stand alone paging system. This
could be installed where network access is available, but telephone access is not.
In this example, the VIP-810 and VIP-820 are connected to the data network to extend the station port to a remote
Door Phone . This could be installed where network access is available, but not telephone wiring. When initiating a
call from the VIP-820 an open loop, disconnect signal is required from the PBX Station Port.
In this example, the VIP-810 and VIP-820 are connected to the data network to extend the station port to a telephone
at a remote location. This could be installed where network access is available, but telephone wiring is not. When
initiating a call from the VIP-820 an open loop, disconnect signal is required from the PBX Station Port.
