Network Connection

The VIP-812 has one RJ-45 network connector
on the front panel.
Use a standard Ethernet patch cable to connect
the VIP-812 to an Ethernet switch. If the Ethernet
switch is 802.3af compliant, the VIP-812 will draw
power from it.

Signal Connections

On the back panel, the VIP-812 has 2 RJ-11
jacks for telephone connection and 2 terminal
blocks for relay connections.
Telephone Connections: Connect standard
analog telephones to the VIP-812 via the back
panel RJ-11 jacks labeled Phone 1 and Phone 2.
Tip and Ring appear on pins 3 and 4 of these
jacks.
Relay Connections: Access to the 4 form C
relays is provided via two six pin screw terminal
blocks. The relays are labeled K1, K2, K3 and
K4. Each relay is brought out on three terminals.
The common contact (COM) is the middle
terminal with the normally closed (N.C.) contact
on the right and the normally open (N.O.) contact
on the left. Relay contacts are rated for 1A @
24VDC.
K1 K2 +24V DC
PHONE PHONE
1 2

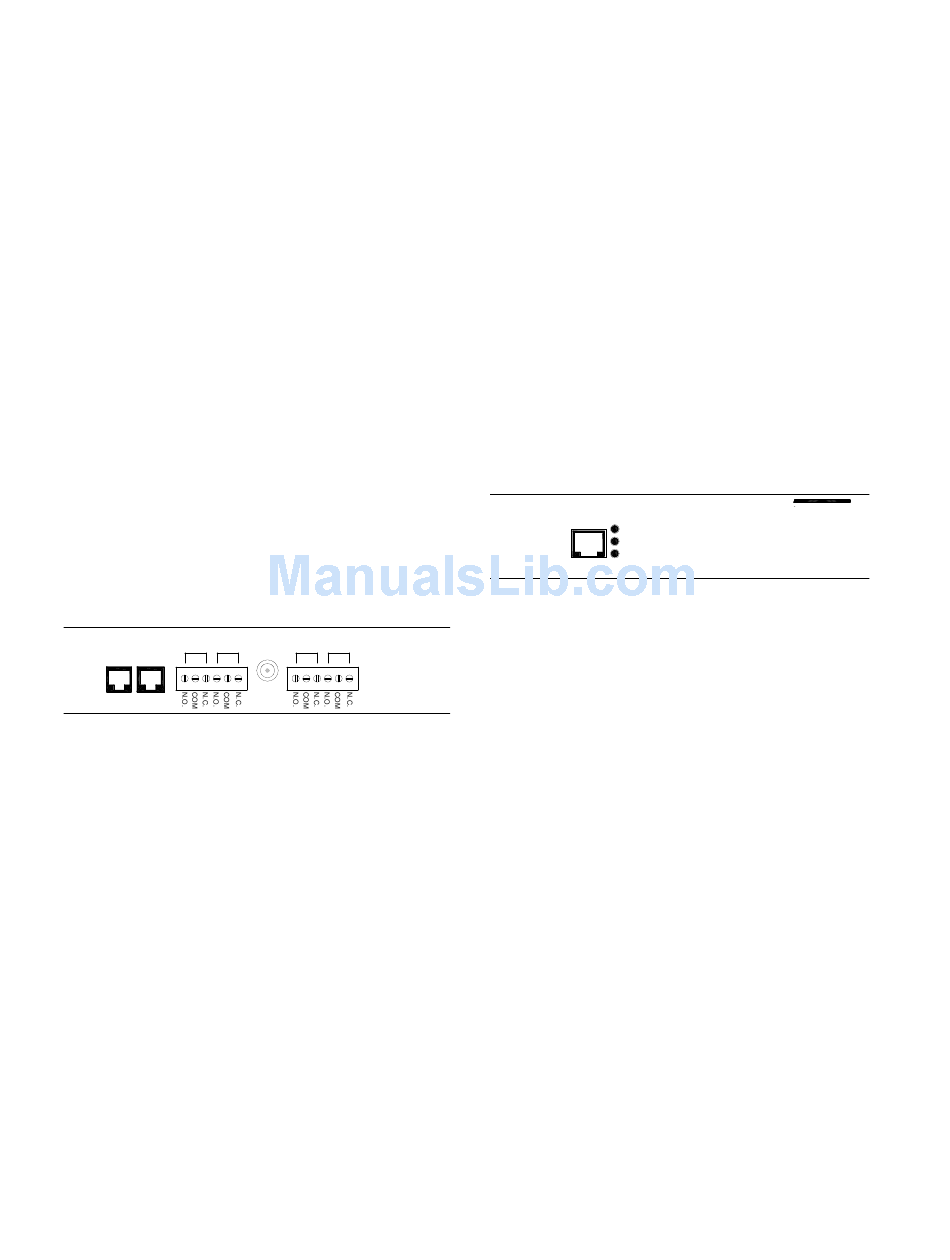

Rear View
K3 K4
3
Setup
Information specific to your application will need
to be programmed into the VIP-812 using a
computer. The PC used for programming should
be connected to the same subnet as the VIP-812.
Setup will be done using the IP Solutions Setup
Tool. Download the latest version of the free IP
Solutions Setup Tool from Valcom web site at
www.valcom.com/vipsetuptool.

Status Indicator Lights

The VIP-812 has 3 status indication lights on the
front panel:
STATUS: Flashes to indicate power.
LINK: Indicates 100 Mbit Ethernet connection
when illuminated. No activity indicates 10 Mbit
connection.
ACT: Indicator flashes to indicate network
activity.
STATUS
LINK
ACT
Front View
V
ALCOM
VIP-812
947996
