There are two versions of the VIP-LLE.
Refer to the diagram below that corresponds to the version being installed.
Note: The screw terminals are removable.
Gently lift away from the circuit board to
remove. Make the necessary wire connections,
then replace the screw terminals over the pins
Paging Horn
on circuit board.
Front View
Status
Link
Act
802.3af Compliant PoE Network Port
W/BL
W/O
W/GN
W/BR
Rear View with Screw Terminal Connector
900' MAX DISTANCE
CAT 3/5/6

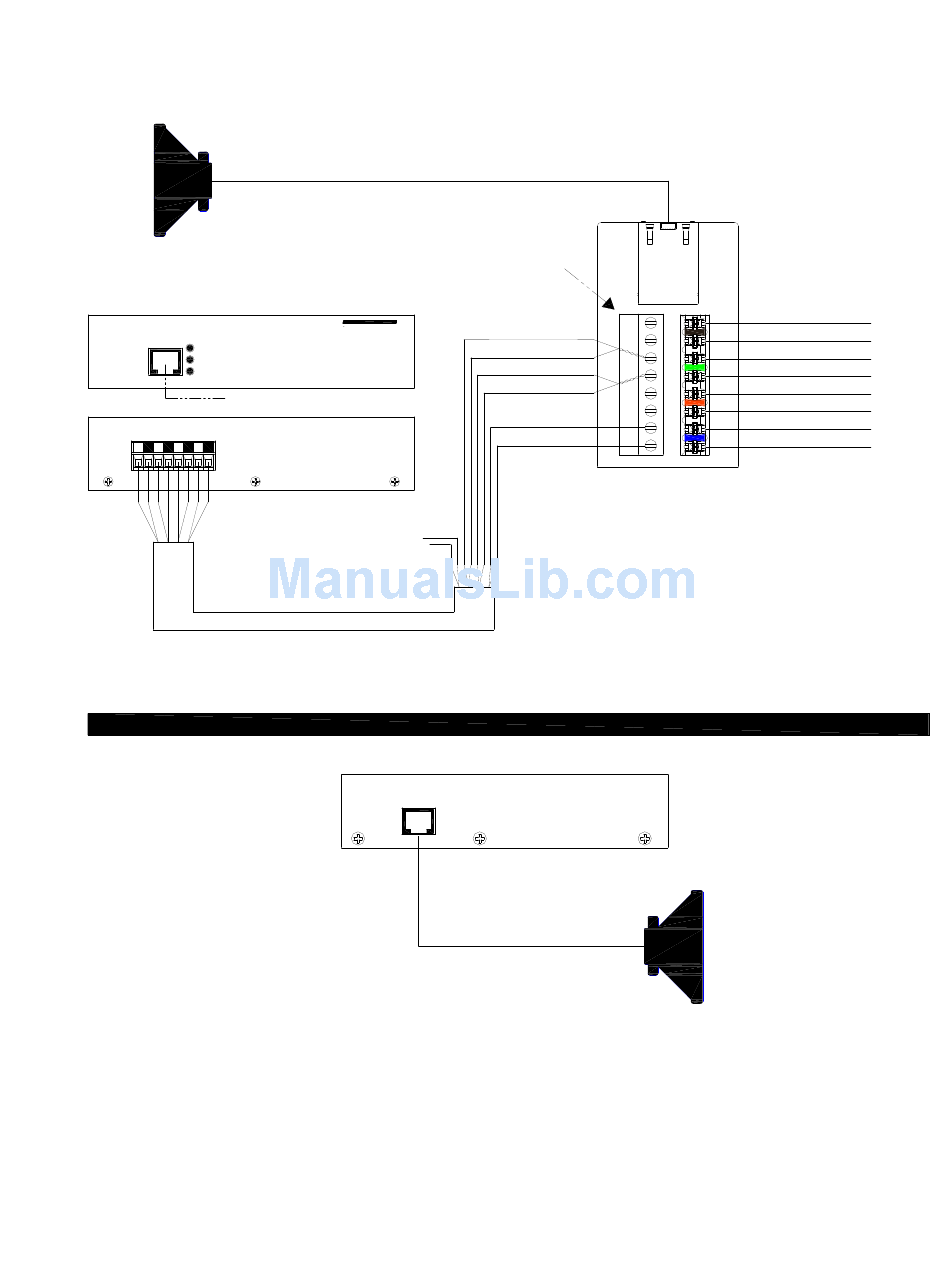

Figure 1. (VIP-LLE versions with 8-pin screw terminal output connector.)
Figure 2. (VIP-LLE versions with RJ-45 output connector.)
If using the VM-186 or other patch panel to extend the connection between the VIP-LLE (with RJ-45 connector)
and the Paging Horn, use standard T568B wiring connections.
V
ALCOM
VIP-LLE
WHITE/BROWN
WHITE/GREEN
WHITE/ORANGE
NOT USED
AUDIO OUTPUT
Rear View with RJ-45 Connector
4
RJ45
BROWN
BROWN
GREEN
BLUE
WHITE/BLUE
BLUE
VM-186
Note: The Brown and White/brown pair should
be twisted together and inserted into the
connector noted on the drawing and the Green
and White/Green pair should also be twisted
together and inserted into the connector that is
noted on the drawing.
IP Paging Horn
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
