Inlet & Exhaust Valve Kit
The use of the following race kit inlet & exhaust valves will require changes to the fuelling
settings. To alter fuelling settings a third party programmable control unit will be
required.

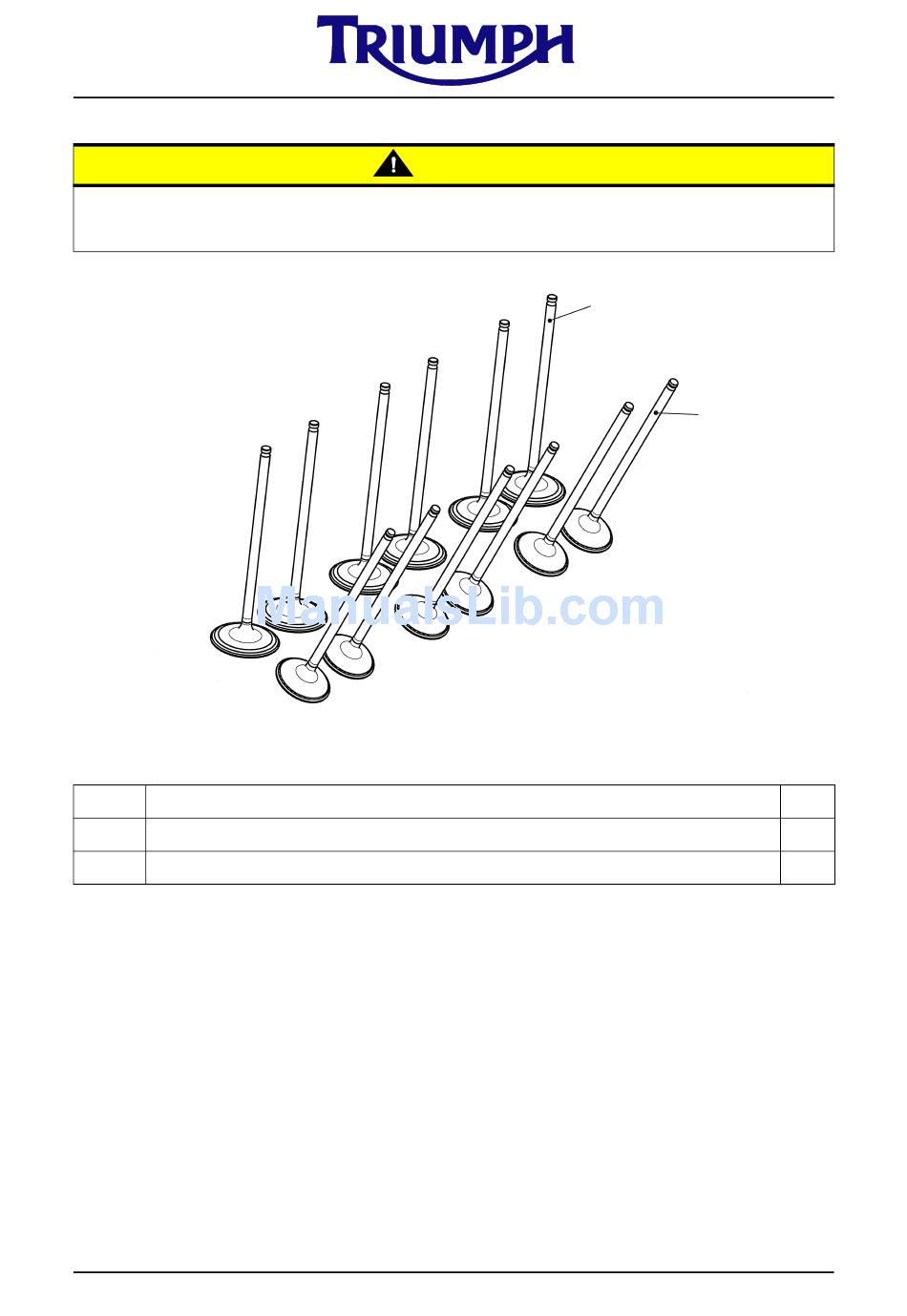

Parts supplied - A9618061
Item Description
1 Inlet valve, 29.65 dia
2 Exhaust valve, 24.85 dia
• The valves supplied in the race kit are used to increase compression ratio, by
having a flat face on the combustion chamber side. They are made from the
same material and have the same mass as the standard valves.
1. Remove the existing inlet and exhaust
valves following the procedure detailed
in section 3 of the Daytona 675 service
manual.
2. The valve seat widths on the race kit
valves are narrower than the standard
valves, therefore the bottom angle
o
(120 ) of the cylinder head valve seats
must be modified to ensure the seat on
the head matches the seat on the valve.
© Triumph Designs Ltd 2008.
Caution
3. Check the head seat and valve seat are
matched
engineers blue to the cylinder head seat
o
(90 ) and then assembling a valve.
4. When the correct match of head seat
and valve seat have been confirmed
assemble the race inlet and exhaust
valves, following the procedure detailed
in section 3 of the Daytona 675 service
manual.
Page 14 of 33
1
2
correctly by applying
Qty
6
6
