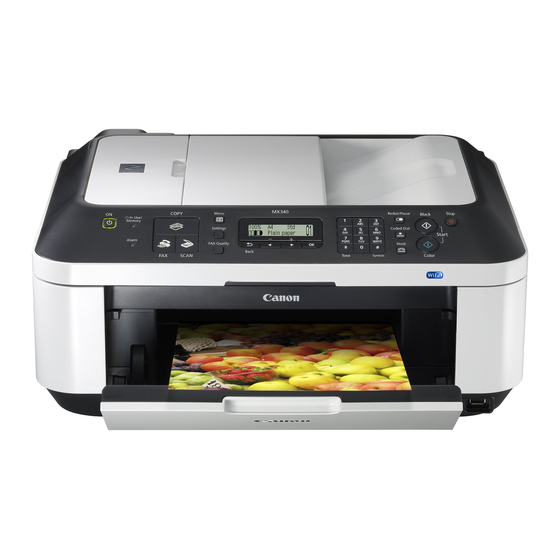

Canon PIXMA MX340 Network Installation Manual

Installing your multifunction to your network for the first time windows os
Hide thumbs

Advertisement

Next >>
<< Previous
Installing Your Multifunction
to Your Network for the First Time
PIXMA MX340
Windows OS
1

Advertisement

loading

  Related Manuals for Canon PIXMA MX340

  Summary of Contents for Canon PIXMA MX340

  • Page 1 Next >> << Previous Installing Your Multifunction to Your Network for the First Time PIXMA MX340 Windows OS...
  • Page 2 << Previous Next >> Installing Your Multifunction to Your Network for the First Time PIXMA MX340 Windows OS Preparing to Connect My Multifunction to My Network Network Requirements Notes on Wireless Connection Installing the Drivers & Software...
  • Page 3: Network Requirements

    Preparing to Connect My Multifunction << Previous Next >> To My Network Network Requirements Before connecting the machine to the network, make sure that configuration of the computer and access point or router is complete, and that the computer is connected to the network. Wireless Connection Before connecting the machine to the network, the computer needs to be connected to the network.
  • Page 4 Preparing to Connect My Multifunction << Previous Next >> To My Network An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Notes on Network Connection • The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment.
  • Page 5: Software Installation

    Setup CD-ROM during restarting. The installation resumes once your computer has restarted. • If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access.
  • Page 6: Installing The Drivers & Software

    Installing the Drivers & Software << Previous Next >> Installing the Drivers & Software If you connect the machine via wireless LAN setup cable before installing the software: For Windows Vista/Windows XP For Windows 7 1. Remove the wireless LAN setup cable connected to This dialog box may appear.
  • Page 7 Installing the Drivers & Software << Previous Next >> Step Two Step One Turn on the computer, then insert the Setup CD- Click Run Msetup4.exe on the AutoPlay screen, then click Yes or Continue on the User Account Control dialog box. ROM into the CD-ROM drive.
  • Page 8 Installing the Drivers & Software << Previous Next >> Step Three Step Four Click Easy Install Click Install The drivers, application software, and on-screen manuals are installed. Note: If you want to select particular items to install, click Custom Install.
  • Page 9 Installing the Drivers & Software << Previous Next >> Step Five Step Six Select Use the printer on network, then click Next. Easy-WebPrint EX is Web print software that is installed on the computer when installing the supplied software. Internet Explorer 7 or later is required to use this software.
  • Page 10 Installing the Drivers & Software << Previous Next >> Step Seven Step Eight When the Printer Detection screen appears, click Next. Make sure the machine is turned on, then click OK. IMPORTANT If the Printer Connection screen appears instead of the screen above, the connection method is not correctly selected in 5.
  • Page 11 Installing the Drivers & Software << Previous Next >> Step Nine Step Ten When the Set Up New Printer screen appears, click Next. When the Connect Cable screen appears, connect the machine to the computer with the wireless LAN setup cable Note: If the Detected Printers List screen appears, click Set Up New Printer.
  • Page 12 Installing the Drivers & Software << Previous Next >> Step Eleven If the Detected Access Points List screen appears, select If the Confirm Connection Access Point screen appears, make sure the target access point name/network name (SSID), that the target access point is displayed,then click Yes. enter the network key and click Connect...
  • Page 13 Installing the Drivers & Software << Previous Next >> Step Twelve Step Thirteen When the Disconnect Cable screen appears, remove the Click Complete on the Setup Completion screen. wireless LAN setup cable, then click Next. Wireless setup is now complete...
  • Page 14 Installing the Drivers & Software << Previous Next >> Step Fourteen Step Fifteen Click Next on the Print Head Alignment Recommended screen. Click Next on the Setup Complete screen. At this point, setup is complete.
  • Page 15 Installing the Drivers & Software << Previous Next >> If the Extended Survey Program screen appears: If you can agree to Step Sixteen Extended Survey Program, click Agree. If you click Do not agree, the Extended Survey Program will not be installed. (This has no If the User Registration screen appears, read the information effect on the machine's functionality.).
  • Page 16 Installing the Drivers & Software << Previous Step Seventeen Click Exit.
