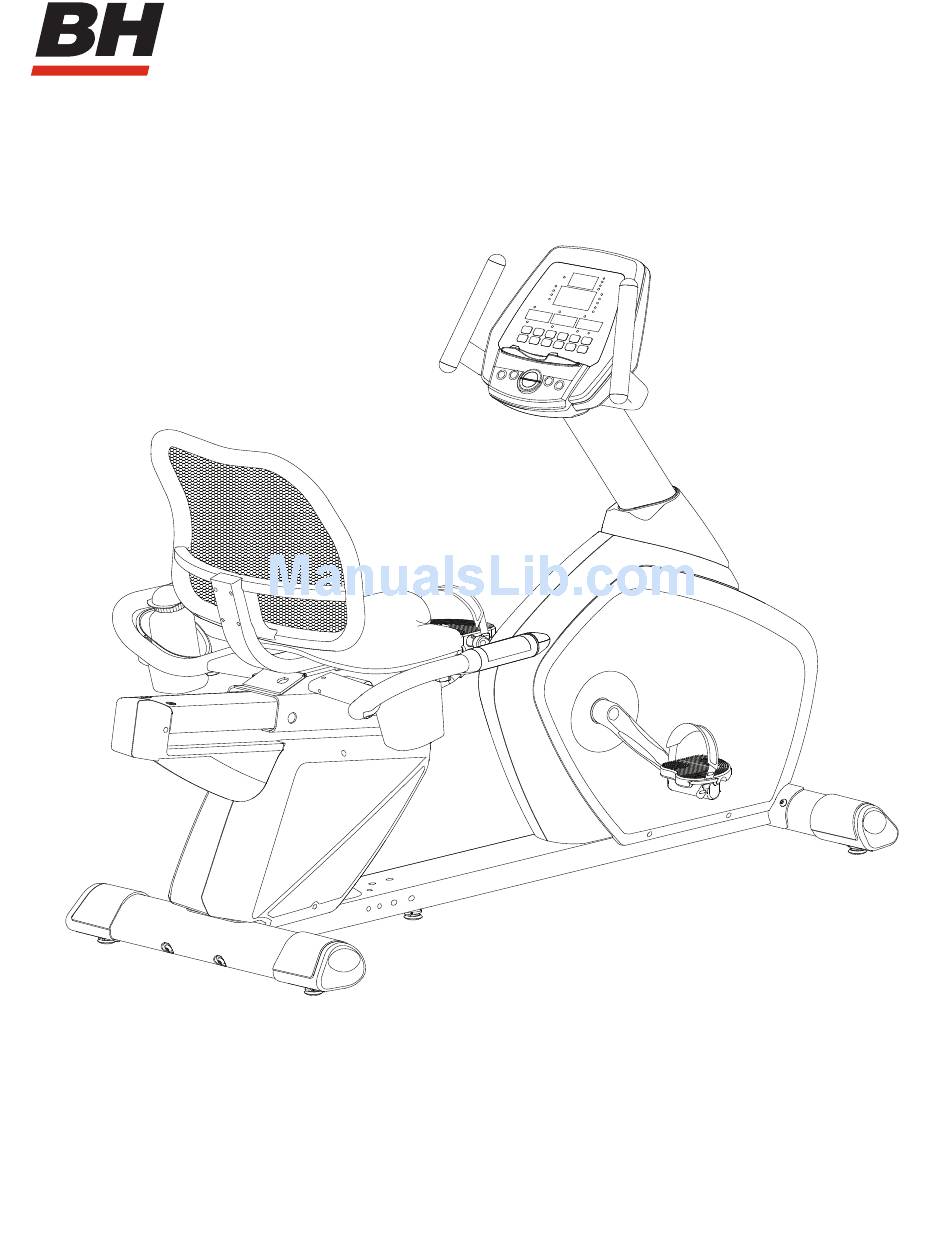

- Page 1 BH FITNESS RS5 RECUMBENT CYCLE OWNER’S MANUAL BH FITNESS 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330 Fax: 949-206-0013 Email: fitness@bhnorthamerica.com Web:...
-
Page 2: Before You Begin
Please read this manual carefully before using the RS5. This will allow you to get a full understanding of all the features the BH Fitness Recumbent Cycle provides. If you have questions or concerns, please contact BH FITNESS or any authorized BH FITNESS distributors in your area. -
Page 3: Table Of Contents
4. EXPLODED VIEW ..................18 5. COMPUTER CONSOLE................20 6. HEART RATE CALCULATION..............25 7. MAINTENANCE ..................26 8. WARRANTY ....................27 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013... -
Page 4: Important Safety Instructions
12. Connect this unit to a properly grounded 110-120V, 15 or 20 Amp dedicated outlet only. 13. Call your service center or BH Fitness with your concerns before taking your unit in for repair. 14. Do not place sharp objects near the unit. Never drop or insert any object into any opening. - Page 5 Please save these Instructions ELECTRICAL POWER CONNECTOR Your RS5 Recumbent Cycle has a two prong external electrical power connector for use on a nominal 110-120 volt circuit. Use only the electrical power connector provided with your RS5 Recumbent Cycle. If you misplace the electrical connector, please contact BH Fitness for an original replacement.
- Page 6 Foothill Ranch, CA 92610 Phone: (949) 206-0330 Fax: (949) 206-0013 Email: fitness@bhnorthamerica.com Web: www.bhnorthamerica.com Mon - Fri 8am - 5pm PST BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
-
Page 7: Pre & Assembly Instructions
RS5 RECUMBENT CYCLE SECTION 2 - PRE- ASSEMBLY INSTRUCTIONS Slider Lock/Release Handle BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013... - Page 8 Saddle M1 Accessory Tube (S4)Strap(R) tray(LEFT) M2 Accessory tray(RIGHT) M8X15 M8X16X1.2T M8X105 1/4"x40L M8X35 M8X20 M6X10 M4X15 M6X8 8X4.5 M8X16X1.2T(BLACK) BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
-
Page 9: Assembly Instructions
(C1) under the stabilizers by tightening (turning clockwise) or loosening (turning counterclockwise) until stability is achieved BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013... - Page 10 Slide main support tube cover down until it covers the joint completely ATTENTION: TAKE CARE NOT TO PINCH THE THE CABLES DURING THE ASSEMBLY PROCESS. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 11 N10 to fix it in place J2-1 Step3. Secure the seat cushion(G) onto base slider(P1) from underneath with 4 bolt(N1),washer(N3) BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 12 Step2: Gently tuck all excess wires into the console cavity. Slide console onto the console bracket and secure using two screws(D1) Remove screws(D1)before sliding onto console bracket BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 13 Pull the adjustment handle back up to lock the slider in place. PULL UP (LOCK) PULL DOWN (RELEASE) BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 14 Push or pull to move the machine to a new location. Mobility Wheels BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 15 Plug the adaptor(S) in to the outlet and plug the DC end (round plug) to the jack on the machine Be sure not to damage the cord and the plugs to avoid electrical shocks BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.
-
Page 16: Parts List
SPRING 10.2* .2*11*55L A8-7 A17-2 ENDCAP BELT6PJ46” BELT PULLY CCLIPC17 A10-3 NUTM6 A10-4 AXLEFOR BACKREST TUBE 16*79L MAGNET A10-5 SCREWM8*52 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013... - Page 17 ” ” ADJUSTED END M8* 29*42.5 ACCESSORY TRAY(LEFT) ENDCAP ACCESSORY TRAY(RIGHT) MAIN SUPPORTING TUBE SCREW FRONT SMALL HANDLE BAR SCREWM8*105 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 18 U SHAPE PLASTIC ADAPTOR SCREW M6*8 ENDCAP WASHER M8*16*1.2T ENDCAP WASHER 8*4.5 ENDCAP BACK PAD SUPPORT TUBE STRAP(R) SADDLE TUBE STRAP(L) BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 19 RS5 RECUMBENT CYCLE BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com www.bhnorthamerica.com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 20 RS5 RECUMBENT CYCLE BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com www.bhnorthamerica.com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 21 Count up – no preset target, calories will count up from 0 to maximum 9990. Count down–with preset target, calories will count down from preset to 0. Countdown–withpresettarget,calorieswillcountdownfrompresetto0. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 22 At this level, if user’s heart rate continues to exceed target for more than 30 seconds, the program will stop and start sounding audible beeps to warn user. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 23 You may press START button to start training again. Other preset data will keep counting down from previous data. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 24 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
- Page 25 2. Error message: When the monitor displays this information, the control board connection failed. This message will disappear after the failure is corrected. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
-
Page 26: Maintenance
It is strongly recommended that you purchase such a cleaning compound. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013... - Page 27 Remember to consult your family physician or health care professional to develop a well-planned exercise program to fit your health needs. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
-
Page 28: Warranty
For more detailed warranty information or to register your product warranty easily online, visit our website at: www.BHFitnessUSA.com FOR WARRANTY REPAIRS, PLEASE DO NOT TAKE YOUR MACHINE BACK TO THE RETAIL STORE. CONTACT BH FITNESS FIRST. BH North America Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949.206.0330;...
