Beyerdynamic STEGOS Features And Specifications

STEGOS
Digital Wireless Boundary Microphone Set

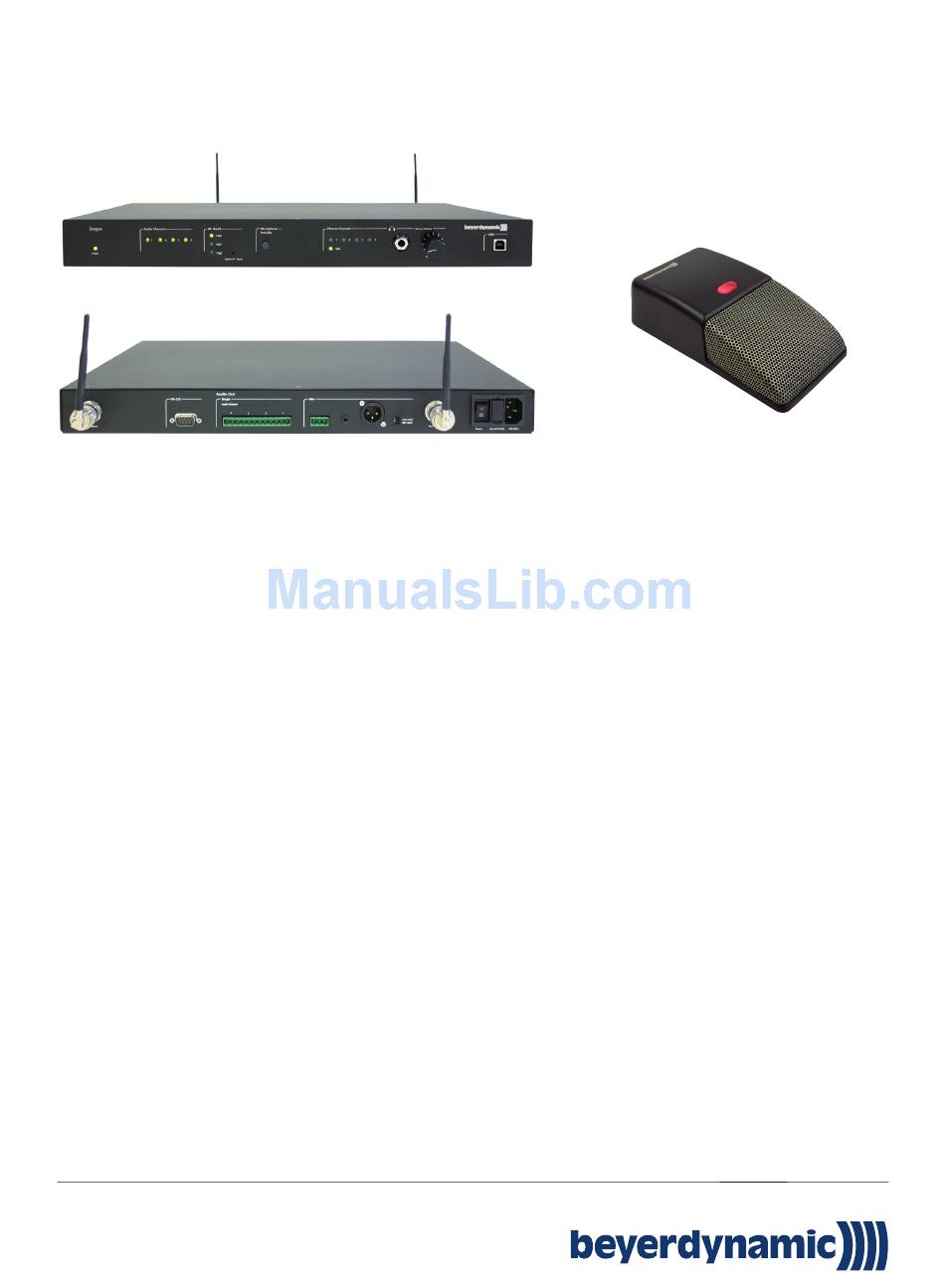

Stegos receiver (RS) - front view
Stegos receiver (RS) - rear view
F
EATURES
• For use with standard video conference systems
• Wireless transmission in the approved frequency range of 2.4 GHz
• Immune against radiation of mobile communication devices due
to the patented Scudio™ technology
• High noise immunity and safe against unauthorised
listening due to Spread-Spectrum and 128-bit encryption key
• eco-friendly due to:
– Rechargeable NiMH batteries, automatic switch-off
– Low energy consuming receiver
– Eco friendly production in Germany
– Eco friendly disposal, especially of the rechargeable battery cells
– Compliant with RoHS and WEEE
Receiver
• Power on / Status LEDs for a maximum of four microphone channels
• Flush switch for RF band switching with LED
• Standby button to turn off the microphones
• Headphone connector with volume control to listen to individual
microphone channels or the mix signal
• USB connector and RS 232 interface for external
operation/monitoring via PC
• Open protocol for the connection of standard media control
systems (e.g. AMX ® , Crestron
• Connection to video conference system via 3-pin Phoenix
terminal strip, mini jack (3.5 mm) or 3-pin XLR
• Selector switch for line/microphone level
• Phoenix terminal strip to pickup individual microphone signals
e.g. for the use of external DSP devices
• Two antenna connections for antenna diversity
(one Rx and one Tx/Rx antenna)
Microphone
• Semi-cardioid polar pattern
• Illuminated multifunction button
• Manual or Push-To-Mute operating mode
• Power on LED / Charging LED
• Operating time of max. 14 hours
• DC connector for power supply operation and charging
1 of 4
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 199
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Stegos (06.10)
® )

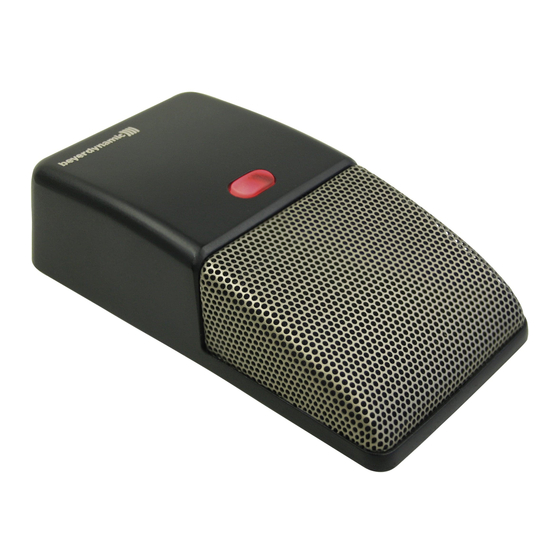

Stegos boundary microphone (TB)
A
PPLICATIONS
The wireless Stegos system consists of receiver and boundary
microphone and has been specially developed for the use with video
conference systems. In neighbouring rooms a maximum of three
Stegos systems can simultaneously be operated independing from
each other.
The receiver provides three different connections for video
conference systems: 3-pin Phoenix terminal strip, mini jack (3.5 mm)
and 3-pin XLR. The individual microphone signals can be picked up
via a multipin Phoenix terminal strip. An RS 232 interface and USB
connector are provided for the data exchange with media control
systems or PC. The channels LEDs indicate which channel is
occupied (red) and which channel is available (green).
With a PC connected to the receiver the volume of the individual
microphones and the operating modes On/Off or Push-To-Mute can
be selected with the supplied, user-friendly Stegos software.
For internal agreements the function "Global Mute" allows muting
all microphones simultaneously by pressing the button of just one
microphone. The battery status of the microphones is also
displayed. The individual channel settings are stored when the
receiver is turned off.
A maximum of four boundary microphones can be operated with
one receiver. The boundary microphone provides a semi-cardioid
polar pattern with a high gain before feedback. The microphone is
powered via integrated rechargeable NiMH batteries. The operating
time is not less than 14 hours. The microphone can be recharged
or permanently operated via a power supply unit connected to the
DC connector. The maximum charging time is 2 hours. An LED
on the rear of the microphone indicates the battery and charging
status.
A
CCESSORIES
• Angled rod antennae (2 supplied with each receiver)
• Remote antennae (optional)
• Antenna cables and accessories (optional)
• AC adapter and charger (supplied with the microphone)
