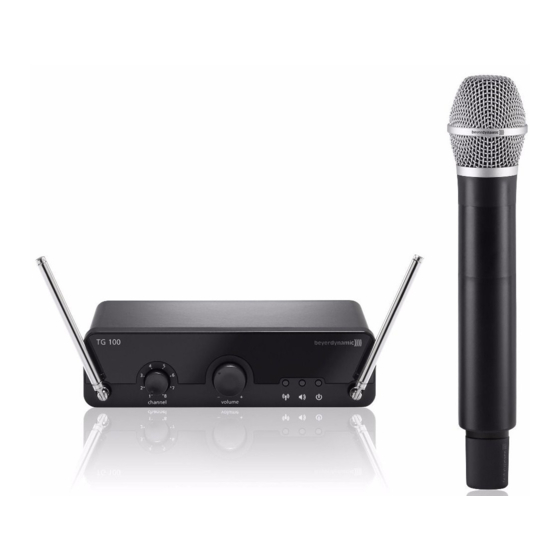

- Page 1 TG 100 Beltpack Set DRAHTLOSSYSTEM MIT TASCHENSENDER WIRELESS SYSTEM WITH BELTPACK TRANSMITTER SISTEMA WIRELESS CON TRASMETTITORE TASCABILE Bedienungsanleitung Operating Instructions Istruzioni per l’uso...
-
Page 2: Table Of Contents
TG 100 – Contents 1. Safety Instructions ........Page TG 100B Beltpack Transmitter. -
Page 3: Safety Instructions
Exemption from liability • beyerdynamic GmbH & Co. KG will not be liable if any damage, injury or accident occurs due to negligent, incorrect or inappropriate operation of the prodcuts. Location •... -
Page 4: Tg 100B Beltpack Transmitter
• If you connect defective or unsuitable accessories, the equipment could be damaged. Only use power adapters available from or recommended by beyerdynamic. • In order to disconnect the receiver from AC power, disconnect the power plug from the power socket. -
Page 5: Nimh Rechargeable Batteries, Alkaline Batteries
TG 100 – Safety NiMH Rechargeable Batteries, Alkaline Batteries • The handheld and beltpack transmitters of the TG 100 system can only be powered with AA (LR6) Mignon alkaline batteries or equivalent NiMH rechargeable batteries. • The normal commercial alkaline batteries can have a length tolerance of 2 - 3 mm. When changing the battery always ensure good contact. -
Page 6: Tg 100R Diversity Receiver
TG 100 – Receiver TG 100R Diversity Receiver Controls and Indicators Front view Telescopic antennae A and B for diversity operation, permanently attached. Channel selector switch. In total there are 8 channels (0 - 7) available. Volume control for audio output. LEDs. - Page 7 Position “Speech”: for improved intelligibility of speech, e.g. speeches, announcements Recess in the housing as strain relief for cable of the power supply. 12 V DC connection for the power supply. Important: Do not use any other power supply, only the one supplied or recommended by beyerdynamic.
-
Page 8: How To Operate The Receiver
Do not use any other power supply, only the one supplied or recommended by beyerdynamic. • To disconnect the receiver from the mains, pull the power supply out of the mains socket. -
Page 9: Tg 100B Beltpack Transmitter
TG 100 – Beltpack Transmitter TG 100B Beltpack Transmitter Controls and Indicators 4-pin mini XLR connector (male) to connect microphones or instruments AF peak LED On-off button Power on LED Antenna, permanently attached Cover of battery compartment Gain switch Hi / 0 dB / Low Battery compartment Channel selector switch Belt clip... -
Page 10: How To Operate The Beltpack Transmitter
TG 100 – Beltpack Transmitter How to Operate the Beltpack Transmitter How to insert or change the batteries • Take hold of the cover of the battery compartment on top at the inlets at the right and left hand side. •... -
Page 11: Tips For An Interference-Free Operation
TG 100 – Beltpack Transmitter Tips for an Interference-free Operation Battery / rechargeable battery • Check the transmitter battery and replace or recharge it if necessary. Use fresh alkaline batteries only or recharge the rechargeable batteries. • Switch off the transmitter before changing the batteries. •... -
Page 12: Trouble Shooting
TG 100 – Trouble Shooting Trouble Shooting TG 100R diversity receiver Problem Possible cause Solution No function • Power supply is interrupted. • Connect the power supply Power supply unit is not unit to the mains and/or to connected to the mains the receiver. -
Page 13: Versions
Versions TG 100 Beltpack Set consisting of: diversity receiver and beltpack transmitter, band 1, 174 - 184 MHz ..... . . Order # 706.329 same as above, but band 2, 194 - 204 MHz. -
Page 14: Technical Specifications
TG 100 – Technical Specifications TG H74c Neckworn microphone, condenser, cardioid, 4-pin mini XLR connector, black..... . Order # 707.090 TG H74c tan same as above, but beige . -
Page 15: Service
In most countries around the world, wireless systems must be approved for use by the authorities and it may be necessary to obtain a licence to use it legally. Your local beyerdynamic dealer will be able to give you details on wireless system regulations for your area. - Page 16 TG 100 – FCC Regulation NOTICE: Changes or modifications made to this equipment not expressly approved by beyerdynamic GmbH & Co. KG may void the FCC authorization to operate this equipment. NOTICE: This Class B digital apparatus complies with Canadian ICES-003.
- Page 17 Model Number/s: TG 100R, Receiver TG 100H, Handheld Transmitter TG 100B, Beltpack Transmitter I, the undersigned, as an employee of beyerdynamic, hereby declare that the equipment specified conforms to the above Directive and Standards. Manufacturer’s Signature Full Name: Ulrich Roth...
- Page 18 Theresienstr. 8 | 74072 Heilbronn – Germany Tel. +49 (0) 7131 617 - 0 | Fax +49 (0) 7131 617 - 204 info@beyerdynamic.de | www.beyerdynamic.com Weitere Vertriebspartner weltweit finden Sie unter www.beyerdynamic.com For further distributors worldwide, please go to www.beyerdynamic.com...
