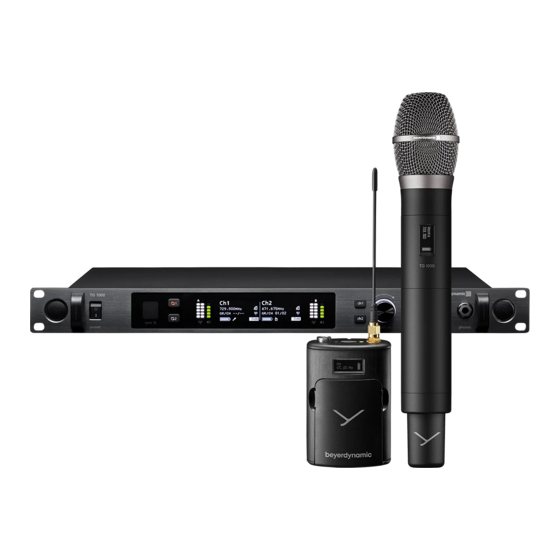

TG 1000 DIGITALES DRAHTLOSSYSTEM DIGITAL WIRELESS SYSTEM SYSTÈME NUMÉRIQUE SANS FIL Quick Start Guide...
Page 2
Entsorgung Dieses Produkt darf am Ende seiner Lebensdauer nicht über den normalen Haushaltsab- fall entsorgt werden, sondern muss an einem Sammelpunkt für das Recycling von elektrischen und elektronischen Geräten abgegeben werden. Das Symbol auf dem Produkt, der Gebrauchsanweisung oder der Verpackung weist darauf hin. Disposal This symbol on the product, in the instructions or on the packaging means that your electrical and electronic equipment should be disposed at the end of its life separately from your...
Quick Start Guide TG 1000 – Diversityempfänger Einführung Sie haben sich für das digitale Drahtlossystem TG 1000 von beyerdynamic entschieden. Wir danken für Ihr Vertrauen. Nehmen Sie sich bitte einige Minuten Zeit und lesen Sie diese Information vor Inbetriebnahme aufmerksam durch.
Page 5
Quick Start Guide TG 1000 – Diversityempfänger Empfänger positionieren • Stellen Sie den Empfänger in dem Raum auf, in dem die Übertragung stattfindet. • Stellen Sie den Empfänger so nahe wie möglich am Sender auf. Für einen optimalen Empfang ist eine Sichtverbindung zwischen Sender und Empfänger anzustreben.
Quick Start Guide TG 1000 – Handsender Digitaler UHF-Handsender TG 1000 Unterseite Gewinde zum Befestigen eines Mikrofon- Antenne kopfs oder Adapters für Mikrofonköpfe Infrarotschnittstelle für Synchronisation anderer Hersteller mit 1,25"/28-Gewinde Batteriefach OLED Display Ein-/Austaste Batteriefachabdeckung Ladekontakte Batterien einlegen • Schrauben Sie die Batteriefachabdeckung entgegen dem Uhrzeigersinn ab.
Quick Start Guide TG 1000 – Taschensender Digitaler UHF-Taschensender TG 1000 Oberseite Unterseite 4-pol. Mini-XLR-Einbaustecker (male) zum Ladekontakte Anschluss vom Mikrofonen oder OLED Display Instrumenten Empfindlichkeitsschalter 0 dB / -12 dB LED zur Anzeige von Übersteuerungen Batteriefachabdeckung Ein-/Austaste Batteriefach LED für Betriebsanzeige Infrarotschnittstelle für Synchronisation...
Überwachen Ihrer TG 1000 Empfänger müssen Sie daher keine Software installieren. Sie benötigen lediglich eine Netzwerkanbindung und ein netzwerkfähiges Gerät (Client) mit Webbrowser. Daher können Sie Ihr TG 1000 System wahlweise mit einem PC, Mac oder auch mit einem Tablet- PC oder Smartphone steuern.
You will find an extensive description of the different functions for using the TG 1000 system and the “Chameleon” software, which only requires an internet browser, in the “TG 1000 - Digital Wireless System”...
Page 11
Quick Start Guide TG 1000 – Diversity Receiver Where to Place the Receiver • Place the receiver in the same room where the transmission takes place. • Place the receiver as close as possible to the transmitter. For optimal reception a free line of sight is advisable between transmitter and receiver.
Quick Start Guide TG 1000 – Handheld Transmitter Digital TG 1000 UHF Handheld Transmitter Bottom view Thread to attach a microphone head or Antenna adapter for the microphone heasds of other Infrared interface for synchronisation manufacturers with a 1.25"/28 thread...
Quick Start Guide TG 1000 – Beltpack Transmitter Digital TG 1000 UHF Beltpack Transmitter Oberseite Unterseite 4-pin mini XLR connector (male) to Charging contacts connect microphones or OLED display instruments Gain switch 0 dB / -12 dB AF peak LED...
Quick Start Guide TG 1000 – Software Chameleon Software Each TG 1000 receiver is provided with an integrated web server with an own web page. In order to configure and monitor your TG 1000 receivers you need not install any software. You only need a network connection and an network-compatible device (client) with web browser.
Vous trouverez une description complète des différentes fonctions concernant la manipulation du système TG 1000 ainsi que du programme « Chameleon », qui ne nécessite qu’un browser, dans le guide de l’utilisateur « TG 1000 - système de transmission numérique » sur Internet à l’adresse suivante : www.beyerdynamic.com/tg1000...
Page 17
Quick Start Guide TG 1000 – Récepteur diversifié Positionner le récepteur • Installez le récepteur dans la pièce dans laquelle la transmission a lieu. • Rapprochez le récepteur le plus possible de l’émetteur. Pour une réception optimale, une visibilité du trajet émetteur - récepteur est vivement conseillée.
Quick Start Guide TG 1000 – Émetteur à main Émetteur à main UHF numérique TG 1000 Vue de dessous Filetage pour fixation d’une tête de Antenne microphone ou adaptateur pour têtes de Port infrarouge pour synchronisation microphone avec un filetage de 1,25"/28 Compartiment pour piles d’autres fabricateurs.
Quick Start Guide TG 1000 – Émetteur de poche Émetteur de poche UHF numérique TG 1000 Vue de dessus Vue de dessous Prise mini-XLR à 4 pôles (mâle) pour Contacts de charge brancher microphones ou Écran d’affichage OLED instruments Cache du compartiment pour piles LED permettant d’indiquer une sur-modulation...
Quick Start Guide TG 1000 – Software Chameleon Software Chaque récepteur TG 1000 possède un server Web avec une homepage lui étant propre. Il ne vous faut donc pas installer de programme pour configurer et contrôler votre TG 1000. Il ne vous faut qu’une connexion réseau et un appareil réseau (Client) avec browser.
