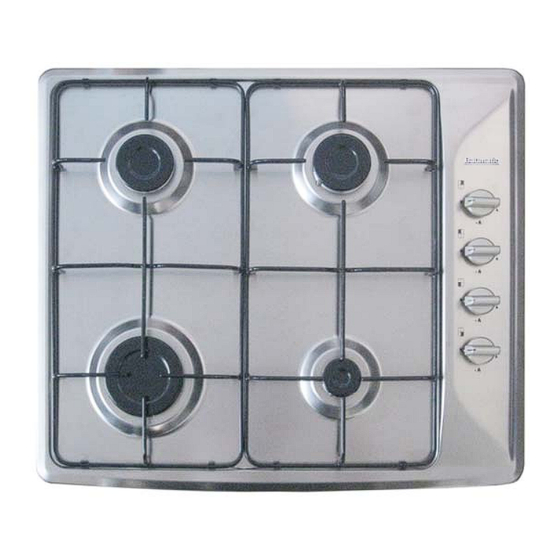

- Page 1 BHG602SS 4 burner gas hob. BHG602TCSS 4 burner gas hob with thermocouples.
- Page 2 User Manual for your Baumatic BHG602SS 4 burner gas hob. BHG602TCSS 4 burner gas hob with thermocouples. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 7 Specifications Product & Aperture dimensions Product specifications Standard accessories Electrical details Gas details Gas hob surface layout Using the gas hob Before first use Turning the hob on Turning the hob on (BHG602TCSS) Energy saving tips 11 –... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive.
-
Page 8: Specifications
Specifications Product dimensions: Aperture dimensions: Height: 510 mm Height: 480 mm Width: 595 mm Width: 560 mm Depth: 35 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.65 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Side control operation o Enamelled pan stands o Underknob auto ignition... -
Page 9: Gas Details
Gas details Connection: Rp ½ (ISO R7), the gasket is not required Type: Natural Gas (20mbar), Alternative LPG G30(28-30/37 mbar) to order. Gas hob surface layout 1 x 1.65 kW Semi-rapid burner 1 x 1.65 kW 1 x 3.00 kW Semi-rapid rapid burner... -
Page 10: Using The Gas Hob
Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). Turning the hob on The following symbols will appear on the control panel, next to each control knob: Black circle: gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation... -
Page 11: Turning The Hob On (Bhg602Tcss)
Turning the hob on (BHG602TCSS) o This particular appliance is fitted with a thermocouple safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. o To light a burner, press in and turn the appropriate control knob anti-clockwise to the large flame symbol. -
Page 12: Cleaning
IMPORTANT: Always place pans centrally over the hob burners and position them so that the handles cannot get accidentally caught or knocked off. You should also make sure that the handle is not over one of the other hob burner flames. Cleaning Cleaning operations must only be carried out when the hob is cool. -
Page 13: Installation
IEE Wiring Regulations o Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 14: Positioning
Positioning The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 15: Unpacking The Appliance
1 x Baumatic hob 2 x Pan supports 4 x Burner assemblies 1 x Installation and instruction manual 1 x Baumatic guarantee card 4 x Fixing screws 4 x Clamps 1 x Sealing strip 4 x LPG jets 1 x Self-adhesive label for amending the Gas Category on the appliance’s rating plate (required if the LPG conversion kit is used). - Page 16 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 17: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Technical Department. o The cooker must be installed by a qualified person, in... -
Page 18: Ventilation Requirements
Ventilation requirements o The room containing the cooker should have an air supply in accordance with the current edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will require an air vent of 50cm²... -
Page 19: Gas Safety (Installation And Use) Regulations
Gas Safety (Installation and Use) Regulations IMPORTANT: The appliance MUST be connected to the gas supply by use of a 15 mm x ½” female coupler, seal, copper pipe and an isolation tap fitted in an easily accessible position. o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations. -
Page 20: Gas Adjustment (Conversion To Lpg)
Gas adjustment (Conversion to LPG) All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove the pan-stands, burners and flame spreaders (A). -
Page 21: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum... -
Page 22: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a CORGI registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 23: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch. -
Page 24: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the... -
Page 25: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Amperova 495 Baumatic Buildings, 46215, Librec 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 800 185 263 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900 Slovak Republic Sales Fax Baumatic Slovakia, s.r.o.
