Baumatic B10 Instruction Manual

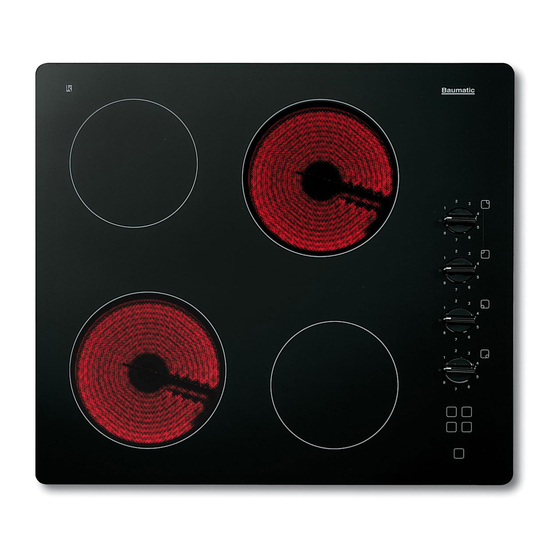

60 cm side control 4 radiant zone ceramic hob
Hide thumbs
Also See for B10:
- Brochure (330 pages) ,
- User and installation instructions manual (12 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Baumatic B10
Summary of Contents for Baumatic B10
- Page 1 60 cm Side control 4 radiant zone ceramic hob User Manual for your Baumatic...
- Page 2 User Manual for your Baumatic 60 cm Side control 4 radiant zone ceramic hob. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 8 Specifications Product and aperture dimensions Product specifications Standard accessories Electrical details Ceramic hob surface layout Using the ceramic hob Before first use Control knobs Turning on a zone and setting a power level Residual heat indicator Hob guidelines 11 –... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the...
- Page 7 Please see the specific section of this booklet that refers to stallation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
o Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications Product dimensions: Aperture dimensions: Height: 510 mm Height: 490 mm... -
Page 9: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 30 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 5.80 kW Mains Supply Lead: 3 core x 6 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 10: Using The Ceramic Hob
Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. -
Page 11: Residual Heat Indicator
o When you have finished cooking, make sure that you turn the control knob anti-clockwise, to the 0 position and turn off the appliance using the ON/OFF button. Residual heat indicator o To the left of the control knobs, there are four residual heat indicators. -
Page 12: Cleaning And Maintenance
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the oven is cool. -
Page 13: After Each Use
After each use o Wipe the appliance over with a damp cloth and a little washing up liquid. o Dry the appliance by rubbing the surface with a clean cloth. Cleaning table Type of deposit Remove Remove What should I immediately? when the use to remove... -
Page 14: Using A Specialist Ceramic Hob Cleaner
Using a specialist ceramic hob cleaner It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance. Installation The installation must be carried out by a suitably qualified person, in accordance with the current... -
Page 15: Positioning
When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 4 Fixing brackets 1 Ceramic hob scraper 4 Fixing screws 1 Instruction manual 4 Spring clips 1 Baumatic guarantee card 1 Sealing strip... -
Page 16: Installing The Appliance
Installing the appliance o Cut a hole in the worktop that corresponds with the drawings shown above. o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat. - Page 17 o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced. Clip Fixing bracket Screw o You should insert a clip (A) into the holes which are located in each corner of the hob.
-
Page 18: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 19: Replacing The Mains Supply Cable
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the... -
Page 20: My Appliance Isn't Working Correctly
* IMPORTANT: If the cooking zone does appear to be hotter than 50°C and the residual heat indicator has not come on, you should call the Baumatic Service Department. o A humming sound is heard when a cooking zone is selected. - Page 21 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 22: Contact Details
Czech Republic Baumatic CR spol s.r.o. United Kingdom Průmyslová zóna Sever 696 Baumatic Ltd., 460 11 Liberec 11 Baumatic Buildings, Czech Republic 6 Bennet Road, Reading, Berkshire +420 483 577 200 RG2 0QX United Kingdom www.baumatic.cz Sales Telephone Slovakia (0118) 933 6900 Baumatic Slovakia, s.r.o.
