Baumatic B72BL Instruction Manual
60 cm 4 burner glass gas hob/70 cm 5 burner glass gas hob
Hide thumbs
Also See for B72BL:
- Brochure (330 pages) ,
- Instruction manual (40 pages) ,
- User and installation instructions manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for Baumatic B72BL
Summary of Contents for Baumatic B72BL

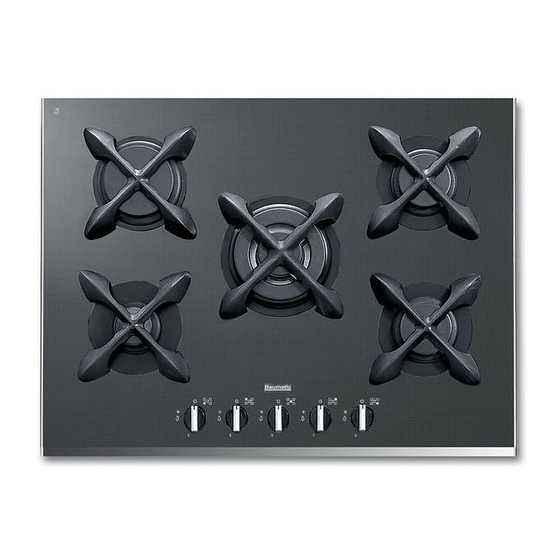

- Page 1 B72BL 60 cm 4 burner glass gas hob B77BL 70 cm 5 burner glass gas hob B78BL 70 cm 5 burner gas glass hob with thermocouples.
- Page 2 User Manual for your Baumatic B72BL 60 cm 4 burner gas glass hob B77BL 5 burner gas glass hob B78BL 5 burner gas glass hob with thermocouples NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.
-
Page 3: Table Of Contents
Minimum flow adjustment for hob gas taps Gas tap maintenance Electrical connection Replacing the mains supply cable My appliance isn’t working correctly Contact details 5 – 7 (B72BL) (B72BL) (B72BL) (B77BL & B78BL) (B77BL & B78BL) (B77BL & B78BL) (B72BL) (B77BL &... -
Page 4: Environmental Note
Environmental note The packaging materials that friendly and can be recycled. Please discard all packaging material with due regard for the environment. Baumatic uses are environmentally... -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be k from the appliance, as they may fuse to the surface. - Page 6 Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowe to touch the appliance at a surfaces will become hot. If it is necessary for younger family members to be in the...
- Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive.
-
Page 8: Specifications
Specifications B72BL Product dimensions: Height: 510 mm Width: 580 mm Depth: 50 mm Product specifications: o 1 x 3.50 kW triple-crown (wok) burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation... -
Page 9: Product & Aperture Dimensions
Product dimensions: Height: 510 mm Width: 680 mm Depth: 50 mm Product specifications: o 1 x 3.50 kW triple crown (wok) burner o 1 x 3.00 kW rapid-burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o RANA design cast iron pan stands o Underknob auto-ignition... -
Page 10: Electrical Details
The rating plate of your hob is located on the underneath of the appliance. Therefore it is a good idea to record this information before you install your appliance. Model Number ………………………………. Serial Number ………………………………. Date of Purchase ………………………………. Gas hob surface layout B72BL... -
Page 11: Using The Gas Hob
Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). Turning the hob on The following symbols will appear on the control panel, next to each control knob: Black circle: gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation... -
Page 12: Turning The Hob On (B78Bl)
To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. o If you keep the control knob depressed, the automatic ignition for the burner will operate. o Once the burner is lit, turn the control knob to your required setting between the maximum and minimum setting symbols. -
Page 13: Energy Saving Tips
o The diametre of the bottom of the pan should correspond to that of the burner. o The burner flame must never extend beyond the diametre of the pan. o Use flat bottomed pans only o When possible, keep a lid on the pan whilst cooking. o Cook vegetables with as little water as possible, to reduce cooking times. -
Page 14: After Each Use
Although it is easier to clean some deposits whilst the hob surface is still warm. Make sure that the hob surface, pan supports and hob burners have all cooled sufficien before you attempt to touch them. After each use o Remove the pan supports and wipe the appliance over with a damp cloth that has been put in warm soapy water o Dry the appliance by rubbing the surface with a soft, clean cloth. -
Page 15: Installation
IEE Wiring Regulations o Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 16: Positioning
The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 17: Unpacking The Appliance
Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 x Baumatic hob 4 x Pan stands (B72BL) 5 x Pan stands 1 x Installation and instruction manual 1 x Baumatic guarantee card... - Page 18 shown on page 17. o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 19: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Technical Department. o The cooker must be installed by a qualified person, in... -
Page 20: Ventilation Requirements
o The room containing the hob should have an air supply in accordance with the current edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will require an air vent of 50cm²... -
Page 21: Gas Safety (Installation And Use) Regulations
IMPORTANT: The appliance MUST be connected to the gas supply by use of a ½ BSP Elbow, seal, copper pipe and an isolation tap fitted in an easily accessible position. o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations. -
Page 22: Gas Adjustment (Conversion To Lpg)
All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Reassemble all the burners carefully; in particular you should make sure that the flame spreader is correctly placed on the burner. -
Page 23: Minimum Flow Adjustment For Hob Gas Taps
All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Unscrew the adjusting screw, in order to increase the gas flow or tighten the adjusting screw to decrease the gas flow. -
Page 24: Gas Tap Maintenance
These maintenance operations MUST ONLY be carried out by a CORGI registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 25: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch. -
Page 26: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the... - Page 27 (0118) 933 6933 E-mail: sales@baumatic.co.uk technical@baumatic.co.uk Website: www.baumatic.co.uk Republic of Ireland 01- 6266 798 Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec Czech Republic +420 800 185 263 www.baumatic.cz Slovak Republic Baumatic Slovakia, s.r.o. Skultetyho 1 831 04 Bratislava 3...
