Summary of Contents for Baumatic B17.5SS

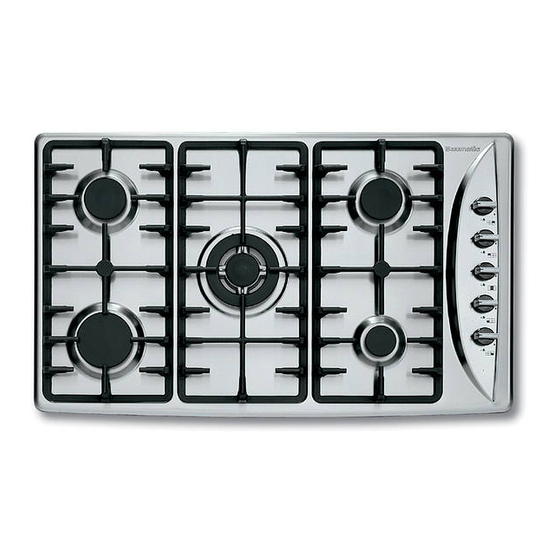

- Page 1 B17.5SS 90 cm 5 burner gas B17.6SS 90 cm 6 burner gas...
- Page 2 User Manual for your Baumatic B17.5SS 5 burner gas hob B17.6SS 6 burner gas hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 7 Specifications Product & aperture dimensions Product specifications Standard accessories Optional extra Electrical details Gas details Gas hob surface layout 9 - 10 Using the gas hob Before first use Turning the hob on Automatic electric ignition Energy saving tips Cleaning... -
Page 4: Environmental Note
Environmental note The packaging materials that Baumatic uses are environmentally friendly and can be recycled. Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowe to touch the appliance at a ny time. During and after use, all surfaces will become hot. If it is necessary for younger family members to be in the...
- Page 7 If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of N 721 MUST be followed. o Baumatic Ltd. DO NOT recommend that this appliance is installed on any type of marine vessel. Declaration of conformity This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive.
-
Page 8: Specifications
Specifications Product dimensions: Height: 510 mm Width: 860 mm Depth: 40 mm Aperture dimensions: Height: 480 mm Width: 830 mm Product specifications: o 1 x 3.30 kW wok burner (B17.5SS) o 1 x 3.00 kW rapid burner (B17.5SS) o 2 x 1.75 kW semi-rapid burners (B17.5SS) o 1 x 1.00 kW auxiliary burner o 2 x 3.00 kW rapid burners... -
Page 9: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 3 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 0.008 to 0.02 kW (depending on model) Mains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked) Gas details Connection: Rp ½... -
Page 10: Using The Gas Hob
B17.6SS Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). Turning the hob on The following symbols will appear on the control panel, next to each control knob: Black circle: gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation... -
Page 11: Automatic Electric Ignition
Automatic electric ignition To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. o If you keep the control knob depressed, the automatic ignition for the burner will operate. -
Page 12: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 13: Installation
IEE Wiring Regulations o Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 14: Positioning
Positioning The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 15: Unpacking The Appliance
1 x Baumatic hob 3 x Pan supports 6 x Burner assemblies 1 x Installation and instruction manual 1 x Baumatic guarantee card 4 x Fixing screws 4 x Clamps 1 x Sealing strip 6 x LPG jets 1 x Self-adhesive label for amending the Gas Category on the appliance’s rating plate (required if the LPG conversion kit is used). - Page 16 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 17: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Technical Department. o The cooker must be installed by a qualified person, in... -
Page 18: Ventilation Requirements
Ventilation requirements o The room containing the hob should have an air supply in accordance with the current edition of BS 5440: Part 2: o The room must have opening windows or equivalent; some rooms may also require a permanent vent. o If the room has a volume between 5 and 10m³, it will require an air vent of 50cm²... -
Page 19: Gas Safety (Installation And Use) Regulations
Gas Safety (Installation and Use) Regulations IMPORTANT: The appliance MUST be connected to the gas supply by use of a ½ BSP Elbow, seal, copper pipe and an isolation tap fitted in an easily accessible position. o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations. -
Page 20: Gas Adjustment (Conversion To Lpg)
Gas adjustment (Conversion to LPG) All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove the pan-stands, burners and flame spreaders (A). -
Page 21: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. All work must be carried out by a CORGI registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum... -
Page 22: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a CORGI registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 23: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch. -
Page 24: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the... -
Page 25: Contact Details
Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec United Kingdom Czech Republic Baumatic Ltd., Baumatic Buildings, +420 800 185 263 6 Bennet Road, Reading, Berkshire www.baumatic.cz RG2 0QX United Kingdom Slovak Republic Baumatic Slovakia, s.r.o. Sales Telephone Skultetyho 1...
