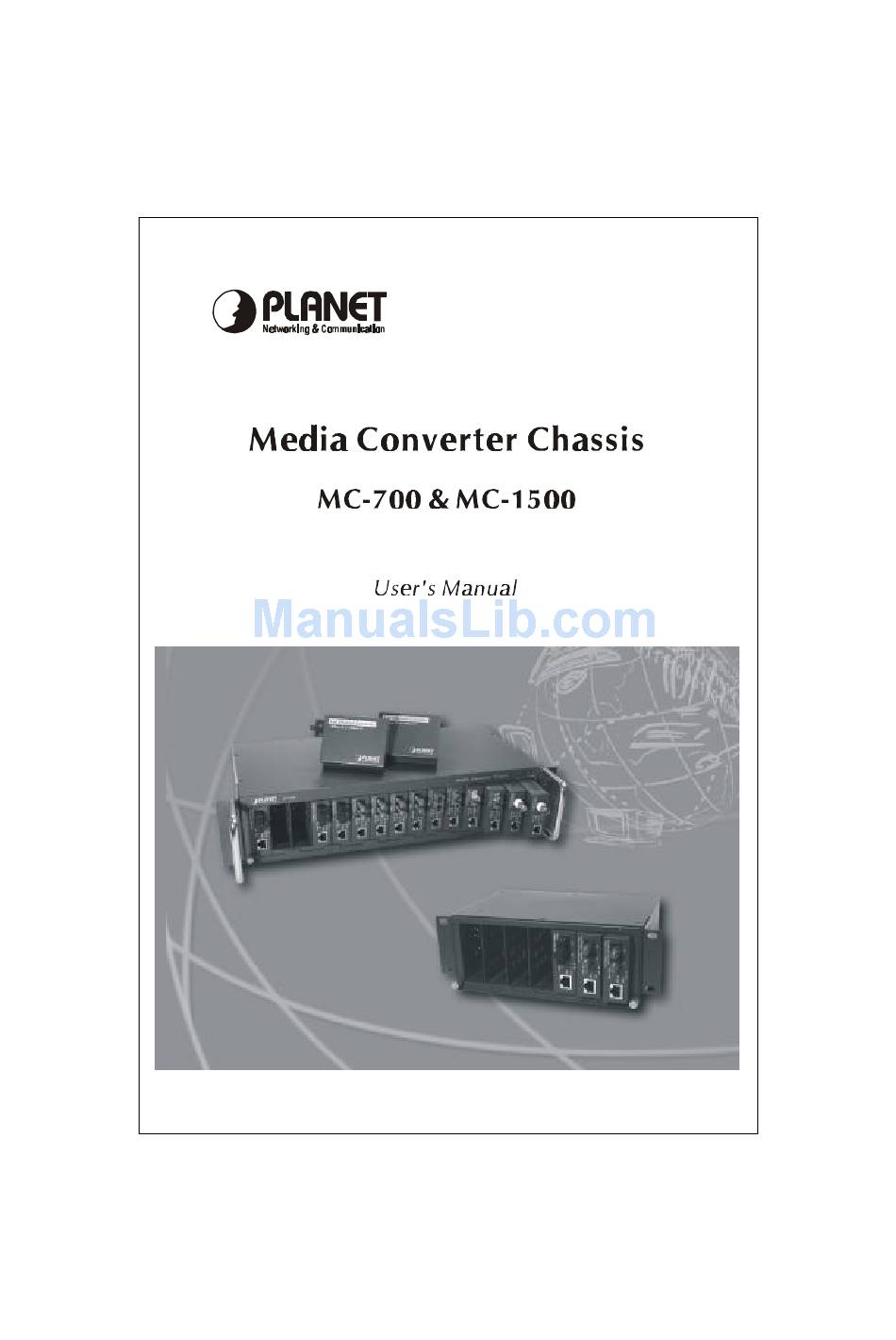

Planet MC-1500 User Manual

Planet MC-1500 User Manual

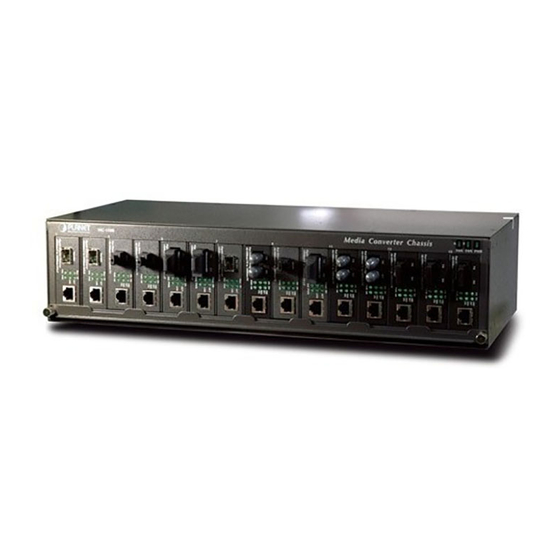

10/19-inch media converter chassis
Hide thumbs Also See for MC-1500:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet MC-1500

  • Page 2: Fcc Warning

    Copyright PLANET Technology Corp. 2002. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Overview The 10/19-inch Media Converter Chassis, MC-700 & MC-1500 is designed to accommodate 7/15 units of various type media converter at a central location for multiple segments cross connection. Independent power supply in each bay of the MC-700/MC-1500, you can freely install the converters without interrupting the rest of networks.
  • Page 4 LED remains off while power is on. Please consult your local dealer to replace the FAN. The rear panel of the MC-1500 is with two fans, one ON/OFF Switch and a power inlet that accept 100~240V AC, 50/60Hz power input.
  • Page 5 LED indications: Printing LED Status Description The chassis is powered The chassis is not powered or power failure if the AC outlet is with 100~240V AC voltage. Please consult your local dealer if power failure. The fan is functional ok The fan is not powered or it is malfunction.
  • Page 6 Installation 4.1 Installing Media Converter Chassis to 10/19-inch Wiring Closet Rack » Install four screws through mounting ears into each side » Locate Converter Chassis at 10/19-inch mounting rails and screw up the front brackets Set Main power switch at "OFF" position before connecting the power »...
  • Page 7 For more about converter, refer to the user guide of the converter. Fig. 5 Installing Media Converter Chassis in 19-inch Wiring Closet Rails MC-1500 Converter Chassis Specifications Dimension 438 mm x 103 mm x 200 mm (WxHxD) Converter slots...
  • Page 8 Fig. 6 Installing Media Converter Chassis in 10-inch Wiring Closet Rails MC-700 Converter Chassis Specifications Dimension 217 mm x 88.5 mm x 140 mm (WxHxD) Converter slots 7 slots Power Input 100~240V AC, 50/60Hz Power Dissipation 22 watt maximum Power Output per slot +5V DC DC Plug per slot 2.5 mm DC receptacle LED indication...
