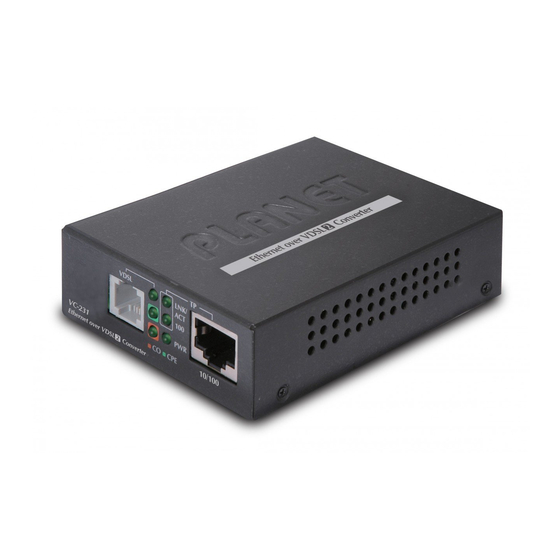

Ethernet over VDSL2 Converter
VC-231 / VC-234
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vc-231 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet vc-231

Summary of Contents for Planet vc-231

  • Page 1 Ethernet over VDSL2 Converter VC-231 / VC-234 User’s Manual...
  • Page 2 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

  • Page 3: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision Ethernet over VDSL2 Converter User’s Manual For Models: VC-231 / VC-234 Rev 1.1 (January, 2010) Part No.: 2350-AC0140-001...

  • Page 5: Table Of Contents

    3. Installing and Using VDSL Converter ....... 20 3.1 Install the Ethernet Over VDSL2 Converter ....20 3.1.1 VC-231 / VC-234 LAN to LAN Connection ... 21 3.1.2 VC-231 / VC-234 Connect to Multi-Port Master ... 22 3.2 Connecting VC-231 / VC-234 ........23 3.2.1 Connecting Standalone PC ........

  • Page 6: Introduction

    VDSL port can be RJ-11 connectors. The VC-231 / VC-234 can be set to CO mode or CPE mode via a DIP switch, when the VC-231 / VC-234-CO is used to connect to the other VC-231 / VC-234-CPE as a standalone pair, up to 100/100Mbps symmetric...
  • Page 7 Slave device (CPE) must connect to Master device (CO) through the telephone wire. Slave cannot connect to Slave and Master cannot connect to Master. To define the VC-231 / VC-234 to CO or Note CPE, please refer to section 2.2.1 for more detail.
  • Page 8 Ethernet over VDSL2 and Telephone Network Telephone wire VDSL2 Up to 1.4km Main office/PBX, Splitter Splitter Telco CO, wire closet VC-231/CO VC-231/CPE LAN1 LAN2 Ethernet over VDSL2 and Telephone Network Telephone wire VDSL2 Up to 1.4km Main office/PBX, Telco CO,...
  • Page 9 VDSL2 Telco CO, wire closet VDSL2 Ethernet over VDSL2 and Telephone Network Splitter VDSL2 VDSL2 Switch Telephone wire (Multi-port CO) Main office/PBX, VC-231/CPE Telco CO, LAN1 wire closet Splitter VDSL2 UP to 1.4km Internet VC-231/CPE Router LAN2 Ethernet over VDSL2 and Telephone Network...

  • Page 10: Key Features

    1.3 Key Features The Ethernet over VDSL2 Converter provides the following key features: Cost-effective VDSL2 CO/CPE bridge solution One box design, CO/CPE selectable via DIP Switch Defines profile 17a band plan for the long distance transmis- sion of upstream and downstream signals Defines profile 30a band plan for the short distance transmis- sion of upstream and downstream signals Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x...

  • Page 11: Specifications

    1.4 Specifications Product VC-231 VC-234 Hardware Specification 1 RJ-45, Auto-negotiation 4 RJ-45, Auto-negotiation 10/100Base-TX and Auto-MDI/MDI-X and Auto-MDI/MDI-X Ports VDSL 1 RJ-11, female Phone Jack Additional Splitter for 1 RJ-11, Built-in splitters PHONE POTS connection for POTS connection 4 position DIP switch •...
  • Page 12 30a profile 300m -> 100/100Mbps 300m -> 100/100Mbps 400m -> 90/90Mbps 400m -> 90/90Mbps 600m -> 61/40Mbps 600m -> 69/55Mbps 800m -> 54/8Mbps 800m -> 48/9Mbps Power Requirement 5V DC, 2A Dimension (W x D x H) 97 x 70 x 26 mm 155 x 86 x 26 mm Weight 199g...

  • Page 13: Hardware Description

    The VC-234 provides 2 RJ-11 ports for voice connection (like telephone) and for network line connection. The VC-231 provide 1 RJ-45 port and VC-234 provide 4 RJ-45 ports for two different running speed –10Mbps, 100Mbps, in the same converter / bridge and automatically distinguish the speed of incoming connection.

  • Page 14: Led Indicators For Vc-231

    VC-234 Front Panel Figure 2-2: VC-234 front panel 2.1.1 LED Indicators for VC-231 The rich diagnostic LEDs on the front panel can provide the operating status of individual port and whole system. n System Color Function Lights to indicate that the VDSL Converter has power.

  • Page 15: Led Indicators For Vc-234

    n 10/100Base-TX Port Color Function Indicate that the port is link up. Indicate that the VDSL Converter is LNK/ Green Blink actively sending or receiving data over that port. Indicate that the port is link down. Indicate that the port is operating at 100Mbps.
  • Page 16 n VDSL Color Function Indicate that the VDSL link is established. Fast Indicate that the VDSL link is at training VDSL Green Blink status (about 10 seconds). Slow Indicate that the VDSL link is at idle Blink status. Indicate the VDSL Bridge is running at Green CO mode.

  • Page 17: The Rear Panel

    The rear panel of the Ethernet over VDSL2 Converter is shown as below. n VC-231 Rear Panel 1 2 3 4 Figure 2-3: VC-231 rear panel n VC-234 Rear Panel 1 2 3 4 Figure 2-4: VC-234 rear panel 2.2.1 Mode DIP Switch The Ethernet over VDSL2 Converter provides 4 selective transmission modes.
  • Page 18 n DIP-1: Mode (CO/CPE) CO (Central Office) – the Master device mode, usually the CO device will be located at the data center of ISP or enterprise to link to the backbone. CPE (Customer Premises Equipment) – the Slave device mode, usually the CPE device will be located at branch office, home or remote side as the long reach data receiver.

  • Page 19: Dc Power Jack

    Converter, before making any transmission mode adjustment. 2.2.2 DC Power Jack VC-231 / VC-234 require 5V DC 2A power input. It will conform to the bundled AC adapter. Should you have the issue to make the power connection, please contact your local sales representative.

  • Page 20: Installing And Using Vdsl Converter

    Slave device) and allows data and voice work on the same telephone lines. VC-231 provides one RJ-11 connector for VDSL port and the port can build VDSL2 connection easily. For voice device connection, the additional splitter from VC-231 package is an idea choice.

  • Page 21: Vc-231 / Vc-234 Lan To Lan Connection

    3.1.1 VC-231 / VC-234 LAN to LAN Connection Two sets of the Ethernet over VDSL2 Converters / Bridge could be used to link two local Area networks that are located in different place. Through the normal telephone line, it could...

  • Page 22: Vc-231 / Vc-234 Connect To Multi-Port Master

    Switch) need to be placed in the wiring center (MDF room) and connect to the telephone line system, on the other hand, need to install a Slave (VC-231 / VC-234 CPE) Converters / Bridge on the individual client side and connect to the Multi-port Master through the telephone lines.

  • Page 23: Connecting Vc-231 / Vc-234

    Refer to the following procedures to setup the VC-231 to a standalone PC. 1. Set the VC-231 to be CO mode or CPE mode from the DIP switch at the rear panel. 2. Power on the VC-231 by connecting its power source.

  • Page 24: Connecting Multiple Pcs To An Ethernet Lan

    Refer to the following procedures to setup the VC-231 / VC-234 to an Ethernet LAN. 1. Set the VC-231 / VC-234 to be CO mode or CPE mode from the DIP switch at the rear panel. 2. Power on the VC-231 / VC-234 by connecting its power source.
  • Page 25 RJ-11 Line Cord Phone RJ-11 Line Cord RJ-11 Phone Jack VC-231 RJ-45 Cat.5 Twisted Pair Cable Switch IP Cam Wireless Laptop IP TV 100Base-TX UTP Telephone wire RJ-11 Phone Wire RJ-11 Phone Wire RJ-11 Phone Jack Phone VC-234 1 2 3 4...

  • Page 26: Chassis Installation And Rack Mounting (Vc-231)

    Converter Chassis with standard rack, follow the instructions described below. Step 1: Place your VC-231 on a hard flat surface, with the front panel positioned towards your front side. Step 2: Carefully slide in the module until it is fully and firmly fitted into the slot of the converter chassis.

  • Page 27: Power Information

    4. Power Information The power jack of VC-231 / VC-234 is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Planet’s Media Chassis. Should you have the issue to make the power connection, please contact your local sales representative.

  • Page 28: Troubleshooting

    VC-234 is not more than 1.4km. Please also try to adjust the DIP switch or VC-231 / VC-234 to other SNR mode. 2. Please note you must use one VC-231 / VC-234 with CO mode and the other VC-231 / VC-234 with CPE mode, connect to each other to make it work.

  • Page 29: Faq

    1.4 kilometer is the best for VC-231 / VC-234. Q4: What is the best date rate for VC-231 / VC-234? A4: We provide the data rate of the VC-231 / VC-234 is up to 100Mbps/100Mbps (downstream / upstream) in 200 meters.
  • Page 30 Ratio, often written SNR, is a measure of signal strength relative to background noise. The ratio is usually measured in decibels (dB). In digital communications, the SNR will probably cause a reduction in data speed because of frequent errors that require the source (transmitting) computer or terminal to resend some packets of data.
  • Page 31 This page is intentionally left blank...
  • Page 32 This page is intentionally left blank...

This manual is also suitable for:

Vc-234 vdsl2
