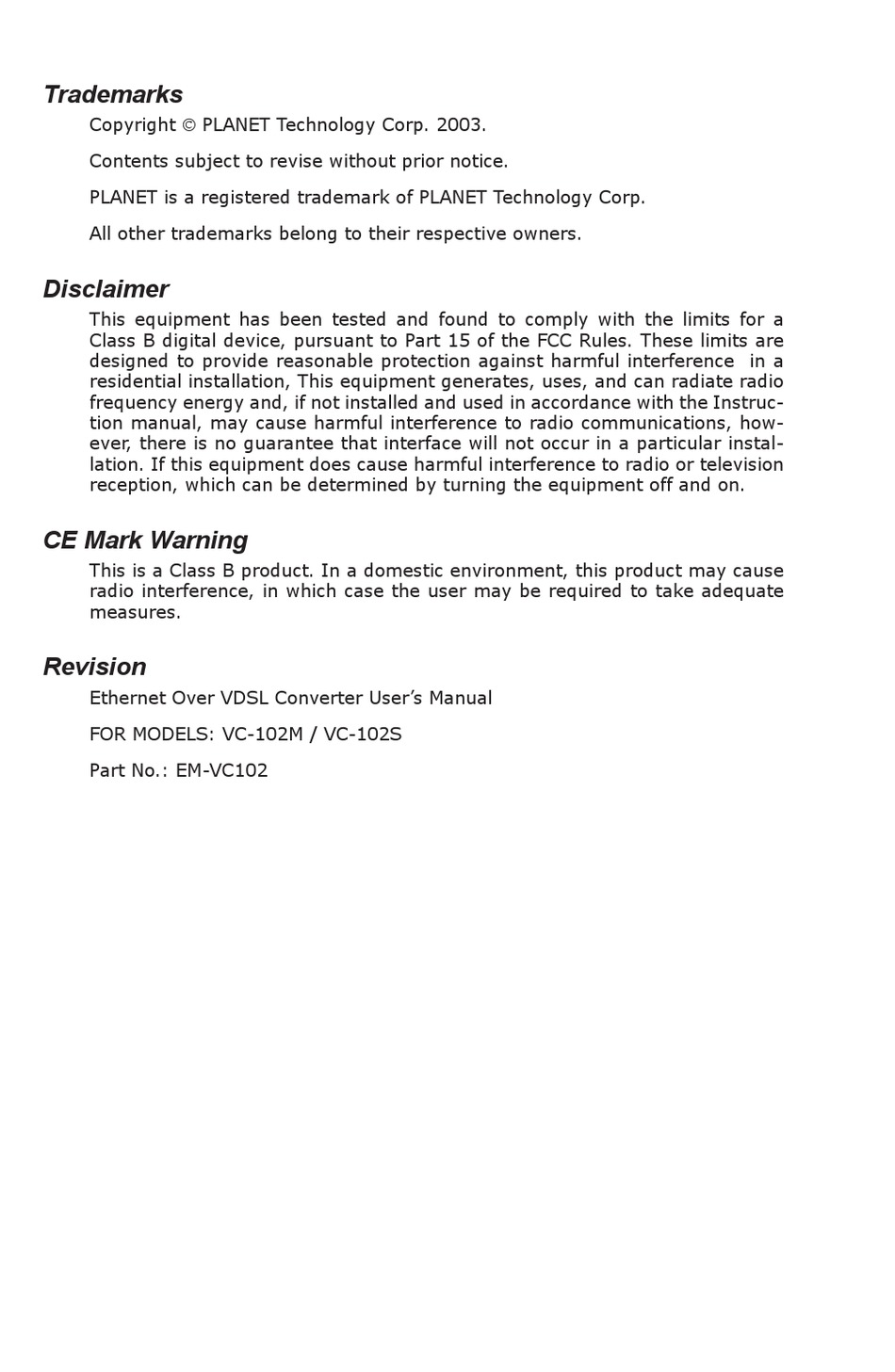

Trademarks
Copyright PLANET Technology Corp. 2003.
Contents subject to revise without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Disclaimer
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation, This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the Instruc-
tion manual, may cause harmful interference to radio communications, how-
ever, there is no guarantee that interface will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
Revision
Ethernet Over VDSL Converter User's Manual

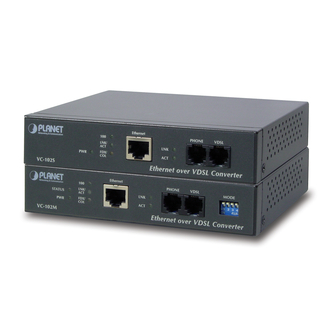

FOR MODELS: VC-102M / VC-102S
Part No.: EM-VC102
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Planet VC-102M
Summary of Contents for Planet VC-102M
- Page 1 Trademarks Copyright PLANET Technology Corp. 2003. Contents subject to revise without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 2: Table Of Contents
1.2 Introduction to Ethernet over VDSL Converter 1.3 Key Features 1.4 Specifications Chapter 2 Hardware Description 2.1 Front Panel and Real Panel 2.2 The Rear Panel Chapter 3 Installing and Using VDSL Converter 3.1 Install the Ethernet Over VDSL Converter 3.2 Connecting VC-102M/S Chapter 4 Troubleshooting... -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Checklist Check the contents of your package for following parts: • Ethernet over VDSL Converter • Power Adapter • Telephone line • User’s Manual If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the original packing material, and use them against to repack the product in case there is a need to return it to us for repair. - Page 4 n 10BASE-T, Category 3, 4 or 5 UTP n 100BASE-TX, Category 5 UTP n Ethernet over VDSL, Twisted-pair telephone wires The two drawings listed below are typical application for the Ethernet over VDSL converter.
-
Page 5: Key Features
The converter provides the following key features: • Cisco LRE switch / CPE compatible • Complies with IEEE802.3, IEEE802.3u and IEEE802.3x standards • 5 selectable transmission modes through DIP switch on VC-102M or manage- ment interface of VC-1602 • QAM ( Quadrature Amplitude Modulation) line code •... -
Page 6: Specifications
1.4 Specifications Product Ethernet over VDSL Converter Model VC-102M VC-102S 10/100 1 RJ-45 1 RJ-45 Base-TX Ports VDSL(Each with 2 RJ-11 1 (Master) 1 (Slave) connectors) System PWR, STATUS Ethernet 100, LNK/ACT, FDX/COL VDSL LNK, ACT DIP switch 5 positions DIP switch ANSI - 15/4Mbps asymmetrical rate up to 4100 feet (1.25km) - Page 7 IEEE 802.3 10Base-T Standard Compli- IEEE 802.3u 100Base-TX ance IEEE802.3x Full Duplex PAUSE frame flow controlEthernet over VDSL...
-
Page 9: Chapter 2 Hardware Description
The rich diagnostic LEDs on the front panel can provide the operating status of individual port and whole system. STATUS LED (VC-102M only) The LED blinks periodically to show the converter is working normally. If the LED stays green/dark that means the system is fail, you need to contact your agent or try to reboot the converter. - Page 10 If there is any traffic transverses the port then the LED will light green. Otherwise, off means no traffic on the network. 2.1.2 MODE DIP Switch (VC-102M only) The converter provides 5 selective transmission modes that defined by predetermined profiles. By switching the transmission modes, you can obtain a best transmission mode to suit with phone line quality or distance of connectivity.
-
Page 11: The Rear Panel
2.2 The Rear Panel The rear panel of the converter is shown below. VC-102M and VC-102S require 12V DC power input. It will conform to the bundled AC adapter. Should you have the problem to make the power connection, please contact your... - Page 12 Power Notice: 1.The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss or network downtime.
-
Page 13: Chapter 3 Installing And Using Vdsl Converter
Two sets of the converters could be used to link two local Area networks that are located in different areas. Through the normal telephone line, it could setup an up to 15/17Mbps asymmetric backbone, but one converter must be Master (VC-102M) and the other one is Slave (VC-102S). -
Page 14: Connecting Vc-102M/S
1. Power on the VC-102M/S by connecting its power source. 2. Power LED will illuminate. 3. Connect VDSL line from another VDSL device to VDSL port of the VC-102M/S. 4. LNK LED will illuminate. 5. Connect telephone to the POTS port. - Page 15 5. Connect telephone to the POTS port. 6. Connect Ethernet port to Ethernet device via regular Cat. 5 cable. NOTE: Please refer to your Ethernet device User’s Manual for the device’s set up information.
-
Page 16: Chapter 4 Troubleshooting
1.5km. Please also try to adjust the DIP switch or VC-102M to other speed mode. 2: Please note you must use 1 VC-102M and 1 VC-102S connect to each other to make it work. SYMPTOM: Switch LNK/ACT LED does not lit after cable is connected to the port. - Page 18 Part No.:EM-VC102...
