Planet VDSL2 User Manual

VDSL2 Converter

FCC Certifications

This Equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received; including interference that
may cause undesired operation.
CE Mark Warning
This equipment com plies with the requirements relating to el
compatibility, EN 55022 Class A for ITE, the essential protection requir
Council Directive 89/336/EEC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products a
that information in this document is not up-to-date. Please check with your local
distributors for the latest information. No part of this document can be copied or
reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2007, All Rights Reserved.

Unpacking Information

Thank you for purchasing the Ethernet over VDSL2
converter . Before installation, please check that your
package contains the following items.
1. One Ethernet over VDSL2 converter
2. One power adapter
3. One telephone line
4. One user's manual

Introduction

General Description

The VDSL2 supports the signal conversion between
traditional Ethernet and innovative VDSL2 technology.
The device is a right solution to integrate current
Ethernet application with the new building phone line
networking technology, like
apartment environment.
The EoVDSL2 port s upports
asymmetry data transmission bandwidth up to
50Mbps and transmission distance up to 1000ft. It is
ideal for providing video-on-demand and multi-media
service to apartment, hotel and campus without
rewiring cable consideration. Moreover , the distance
expansion also provides wide range coverage.
The converter is plug-n-play without any software to
configure and also fully compliant with all kinds of
network protocols. Moreover , the rich diagnostic LEDs
on the front-panel provide the operating status of the
system.
The cable s pecifications of the connection are listed as
following:
10BASE-T , Category 3, 4 or 5 UTP/STP
100BASE-TX, Category 5 UTP/STP
Ethernet over VDSL2, Twisted-pair t

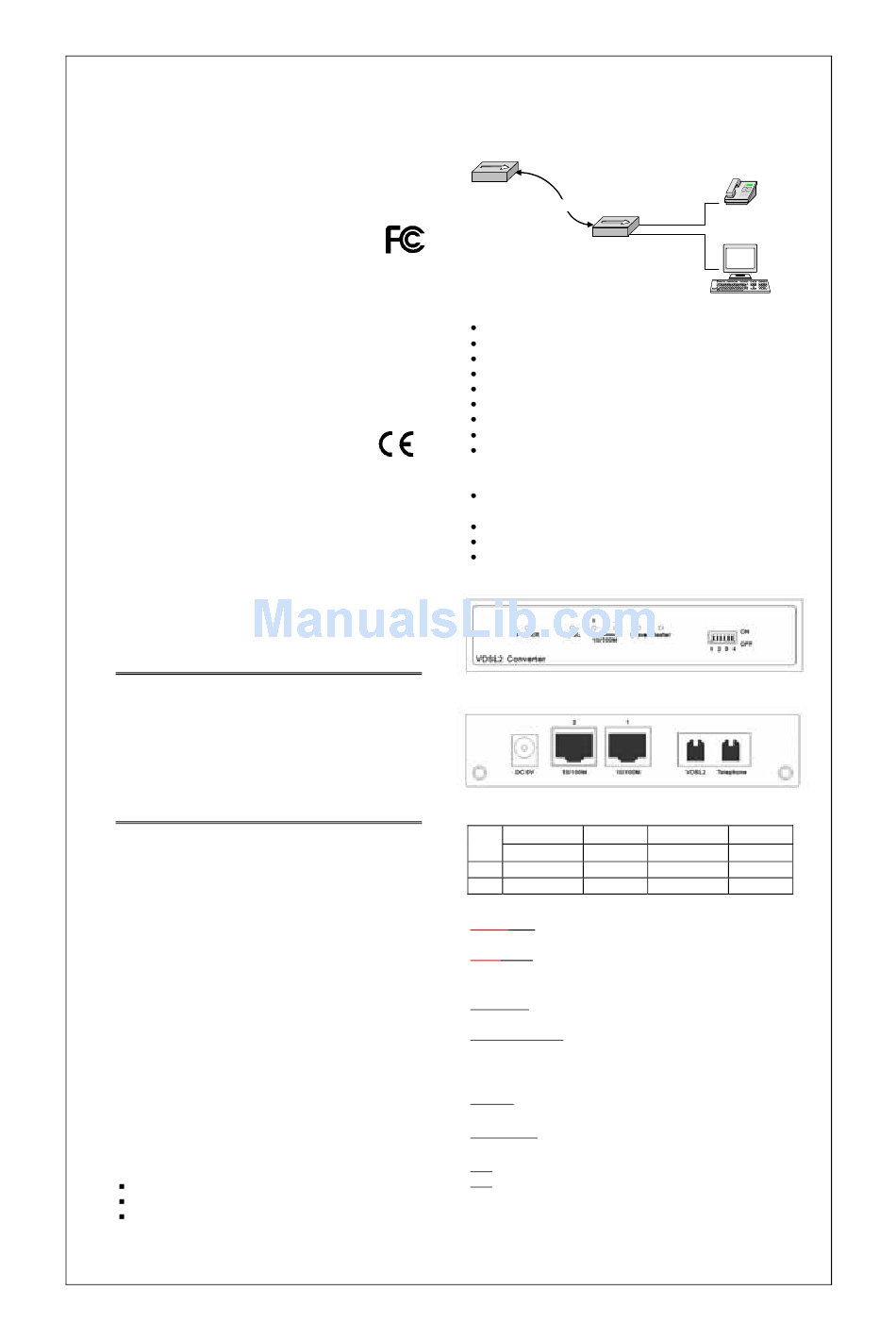

The drawing listed below is typical application for the
Ethernet over VDSL2 converter .
User's Manual
Key Features
ectromagnetic
ement of
nd it may be possible
The Front Panel
T

Dip Switch Settings

ON
OFF Master (CO) Interleave 5 0/20 Mbps
Pin1: Master, slave switch
hotel, office and
Master(CO): EoVDSL2 converter acts as
Central Office (CO) side.
Slave(CPE): EoVDSL2 converter acts as
symmetry and
Customer Premise Equipment (CPE) side.
Pin2: Impulse noise protection
Fast mode: Direct data transmission with latency less
than 1 ms.
Interleave mode: Provides communication protection
for up to 250ms impulse noise with latency less than 6
ms.
Pin3: Rate limit control
No limit: Provides up to 100Mbps/50Mbps line rate in
short line.
50/20 Mbp : Line rate limited to 50/20Mbps.
Pin4: General protection
6dB: Original channel noise protection with 6 dB SNR.
9dB: Better channel noise protection with SNR up to 9
dB.
Note: SNR (Signal Noise Rate) = Signal / Noise. Switch on this
elephone wires
pin depends on your network demand.
Master
Slave
Phone line
Complies with IEE E802.3 10BASE-T standard.
Complies with IEEE802.3u 100BASE-TX standa
Compliance with VDSL2 ITU-T G.993.2
Supports 1 * RJ-11 port for Ethernet over VDSL2.
Provides 1 * RJ-11 port for telephone connection.
Provides 2 * RJ-45 ports for 10/100Mbps Ethernet.
Provides 1 * Dip Switch for mode selection
Voice and Data work on the same telephone
EoVDSL2 port supports maximum
bandwidth 100Mbps/50Mbps (down
/upstream) over 1000ft (300m)
Long Reach VDSL2 performance around 7Mbps
downstream over 5000ft (1500m)
Mini size design (120 x 75 x 25mm)
Provides rich diagnostic LED indicators
External Power Adapter
he Rear Panel
Pin1 Pin2
Side Mode
Sla ve (CP E) Fast
s
Telephone
rd.
line
stream
Pin3 Pin4
R ate limi t SNR
No limit 6dB
9dB
Master /
Slave /
