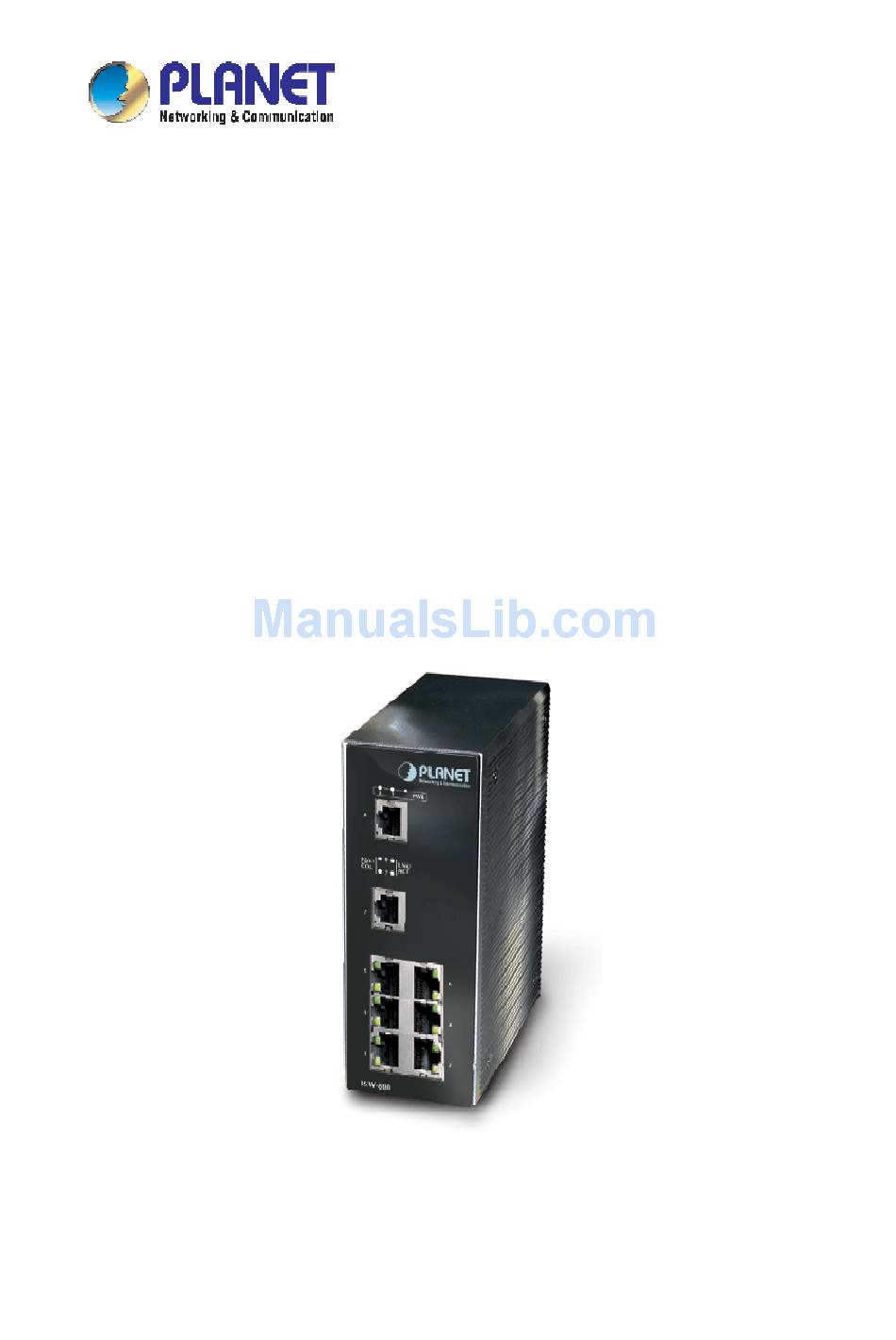

  • Page 1 5/8-Port Industrial Fast Ethernet Switch ISW-500/ISW-800 User's Manual...
  • Page 2: Fcc Warning

    Trademarks Copyright © PLANET Technology Corp. 2006. Contents subject to which revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
  • Page 3: Table Of Contents

    Table of Contents 1. INTRODUCTION ........................4 1.1 Packet Contents ......................4 1.2 How to Use This Manual ....................4 1.3 Product Feature....................... 4 1.4 Product Specification....................... 5 2. HARDWARE INSTALLATION ....................6 2.1 Product Description ......................6 2.2 Mounting Installation ....................... 9 3.
  • Page 4: Introduction

    1. INTRODUCTION The 5/8-Port 10/100BaseTX Industrial Fast Ethernet Switch is a cost- effective solution and meets the high reliability requirements demanded by industrial applications. It provides the redundant power inputs that prevent the power failure. 1.1 Packet Contents Check the contents of your package for following parts: ▫...
  • Page 5: Product Specification

    EMI complies with FCC Class A, CE EN6100-4-2, CE EN6100-4-3, CE EN6100-4-4, CE EN6100-4-5 and CE EN6100-4-6 ▫ Stability testing with IEC60068-2-32(Free fall), IEC60068-2-27(Shock) and IEC60068-2-6(Vibration) 1.4 Product Specification Model ISW-500 ISW-800 Standard IEEE 802.3, IEEE 802.3u, 10/100Base-TX 10/100Mbps TP Protocol CSMA/CD...
  • Page 6: Hardware Installation

    (12-48VDC) for worldwide operability or dual-redundant, reversible polarity, 24VDC and 48VDC power supply inputs for high availability applications requiring dual or backup power inputs. 2.1.2 Switch Front Panel Figure 2-1 shows the front panel of the switch. Figure 2-1 ISW-800 Front Panel Figure 2-2 ISW-500 Front Panel...
  • Page 7: Led Indications

    The port is in half-duplex mode or no device is attached. (port 1 ~ 6 of ISW-800, Green A network device is detected. port 1 ~ 4 of ISW-500) Blinking The port is transmitting or receiving packets from the TX (Green) device.
  • Page 8: Wiring The Power Inputs

    DC power inputs and one DC IN power jack for extra AC/DC power adapter. Figure 2-3 shows the bottom panel of the switch. Figure 2-3 ISW-500/800 Bottom Panel. 2.1.5 Wiring the Power Inputs Please follow below steps to insert the power wire.
  • Page 9: Mounting Installation

    2.2 Mounting Installation This section describes how to install the Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 2.2.1 DIN-Rail mounting The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is not screwed on the industrial switch, please see the following figure to screw the DIN-Rail on the switch.
  • Page 10: Wall Mount Plate Mounting

    Step3: Check the DIN-Rail is tightly on the track. Step4: To remove the industrial switch from the track, reverse steps above. 2.2.2 Wall Mount Plate Mounting To install the switch on the wall, please follows the instructions described below. Step1: Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-Rail. Step2: Place the wall mount plate on the rear panel of the industrial switch.
  • Page 11: Network Installation

    3. NETWORK INSTALLATION In this paragraph, we will describe how to install the 5/8-Port 10/100Base-TX Industrial Switch and the installation points for the attention. Installation Steps 1: Unpack the Industrial switch. Step Step2: Check the DIN-Rail is screwed on the Industrial switch. (Please refer to DIN-Rail Mounting section for DIN-Rail installation If the DIN-Rail is not screwed on the Industrial switch).
  • Page 12 Notice: Be sure the connected network devices support MDI/MDI-X. If it does not support then use the crossover category 5 Cable. Step7: When all connections are all set and LED lights all show in normal, the installation is complete.
  • Page 13: Troubleshooting

    4. TROUBLESHOOTING This section is intended to help you solve the most common problems on the industrial Ethernet switch. 4.1 Incorrect connections The switch port can auto detect straight or crossover cable when you link switch with other Ethernet device. For the RJ-45 connector should use correct UTP or STP cable, 10/100Mbps port use 2-pairs twisted cable.
  • Page 14 power outlet, or power cord. However, if the Switch powers off after running for a while check for loose power connections, power losses or surges at power outlet. IF you still cannot resolve the problem, contact your local dealer for assistance. 4.2.1 Cabling RJ-45 ports: use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω...
  • Page 15: Appendix A Networking Connection

    Appendix A Networking Connection A.1 Switch‘s RJ-45 Pin Assignments Contact MDI-X 1 (TX +) 2 (TX -) 3 (RX +) 6 (RX -) 4, 5, 7, 8 Not used Not used A.2 RJ-45 cable pin assignment There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cables are with same pin assignment and color as above picture...
