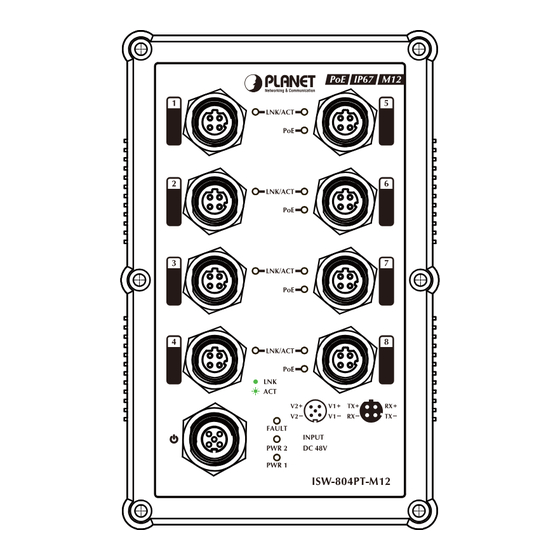

- Page 1 Industrial IP67 Rated 8-Port 10/100Mbps M12 Ethernet Switch ISW-800T-M12 & ISW-804PT-M12 User’s Manual...
- Page 2 Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
- Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET Industrial IP67 Rated 8-Port 10/100Mbps M12 Ethernet Switch User’s Manual For Models: ISW-800T-M12 & ISW-804PT-M12 Revision: 1.0 (August, 2011)
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ....................5 1.1 Package Contents ................5 1.2 How to Use This Manual............... 5 1.3 Product Features ................. 6 1.4 Product Specifications ................7 1.5 Physical Dimension ................10 2. Installation ....................12 2.1 Product Description ................12 2.1.1 Product Overview ..............13 2.1.2 Switch Front Panel ..............13 2.1.3 LED Indicators ................14... -
Page 5: Introduction
In the following section, the term “Industrial M12 Ethernet Switch” means the ISW-800T-M12 and ISW-804PT-M12. 1.2 How to Use This Manual This Industrial M12 Ethernet Switch User Manual is structured as follows:... -
Page 6: Product Features
1.3 Product Features Physical Port 8-Port 10/100Mbps M12 Connector with IP67 protection 4-Port IEEE 802.3af PoE Ports (ISW-804PT-M12) (Port 5 to port 8) Layer 2 Features Supports Auto-negotiation and 10/100Mbps half / full duplex mode High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex) -
Page 7: Product Specifications
1.4 Product Specifications Model ISW-800T-M12 Hardware Specification 10/100Base-TX Ports 8 x M12, 4-Pin D-coded female connector Power Connector 1 x M12, 5-Pin A-Coded male connector Enclosure IP67 Aluminum Dimension (W x D x H) 163 x 103 x 53 mm... - Page 8 Model ISW-804PT-M12 Hardware Specification 10/100Base-TX Ports 8 x M12, 4-Pin D-coded female connector IEEE 802.3af PoE Ports 4, port 5 to port 8 Power Connector 1 x M12, 5-Pin A-Coded male connector Enclosure IP67 Aluminum Dimension (W x D x H) 163 x 103 x 53 mm Weight 976g...
- Page 9 Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE PoE Power Supply Type End-Span PoE Power Output 48V DC Per Port, 350mA. Max. 15.4 Watts Power Pin Assignment 1/2(+), 3/6(-) PoE Budget 60 Watts Environment Operating: -40~75 Degree C Temperature Storage: -40~75 Degree C Operating: 5~95% (Non-condensing)
-
Page 10: Physical Dimension
1.5 Physical Dimension ISW-800T-M12 Industrial M12 Ethernet Switch dimension (W x D x H): 163 x 103 x 53mm Side View Front View Side View Mounting Kit Rear View DIN-Rail Kit Mounting Kit... - Page 11 ISW-804PT-M12 Industrial M12 Ethernet Switch dimension (W x D x H): 163 x 103 x 53mm Side View Front View Side View Mounting Kit Rear View DIN-Rail Kit Mounting Kit...
-
Page 12: Installation
Industrial M12 Ethernet Switch can be placed in almost any difficult environment. The Industrial M12 Ethernet Switch also possesses an integrated power supply source with wide range of voltages (ISW-800T-M12 with 12 to 48V DC) and (ISW-804PT-M12 with 48V DC) for worldwide high availability applications requiring dual or backup power inputs. -
Page 13: Product Overview
2.1.1 Product Overview The PLANET Industrial M12 Ethernet Switch with 8 RJ-45 10/100Mbps ports M12 interfaces, for high-speed network connectivity. The Industrial M12 Ethernet Switch can also automatically identify and determine the correct transmission speed and half / full duplex mode of the attached devices with its 8 Fast Ethernet ports. The... -
Page 14: Led Indicators
2.1.3 LED Indicators ISW-800T-M12 Color Function PWR 1 Green Lit: indicate the power 1 has power. PWR 2 Green Lit: indicate the power 2 has power. FAULT Green Lit: indicate the either power 1 or power 2 has no power. -
Page 15: 10/100Mbps Ports With M12 Interface Cable Pinout
The Industrial M12 Ethernet Switch front panel provides provide eight RJ- 45 10/100Mbps ports M12 interfaces, these ports are designed for Ethernet equipments connection. The Industrial M12 Ethernet Switch 10/100Mbps M12 input interface pinout is shown as below Pinouts for the RJ-45(8-Pin) Port ISW-800T-M12/ISW-804PT-M12 RJ-45(8-Pin) Singnal Pinout 1: TX+ MDI-X... -
Page 16: Mounting Installation
2.2 Mounting Installation This section describes how to install the Industrial M12 Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 2.2.1 DIN-Rail Mounting The DIN-Rail is screwed on the Industrial M12 Ethernet Switch when out of factory. When need to replace the wall mount application with DIN-Rail application on Industrial M12 Ethernet Switch, please refer to following figures to screw the DIN- Rail on the Industrial M12 Ethernet Switch. -
Page 17: Wall Mount Plate Mounting
Step 4: Please refer to following procedures to remove the Industrial M12 Ethernet Switch from the track. Step 5: Lightly press the button of DIN-Rail for remove it from the track. 2.2.2 Wall Mount Plate Mounting To install the Industrial M12 Ethernet Switch on the wall, please follows the instructions described below. -
Page 18: Applicaiton
Public Construction Fiber Switch Industrial Gigabit Switch Industrial Managed 1000 Switch 10Km 30Km 1000 ISW-804PT-M12 ISW-800T-M12 1000 70Km Control Center Outdoor PoE Outdoor PoE Outdoor Outdoor IP Camera IP Camera IP Camera IP Camera... - Page 19 Railway Transmission System Passenger Information System Entertainment PoE IP Camera System Laptop Content ISW-804PT-M12 Server ISW-800T-M12 Control Center ISW-804PT-M12 ISW-800T-M12 PoE IP Camera PoE IP Camera Industrial Backbone Switch VoIP 100Base-TX UTP 100Base-TX UTP with PoE Installation Steps Step 1: Unpack the Industrial M12 Ethernet Switch.
- Page 20 Step 5: Prepare the twisted-pair, straight through Category 3, 4, 5, 5e, 6 cables for Ethernet connection. Step 6: Insert one side of Category 3, 4, 5, 5e, 6 cables into the Industrial M12 Ethernet Switch Ethernet port (RJ-45 port) and another side of Category 3, 4, 5, 5e, 6 cables to the network devices' Ethernet port (RJ-45 port), ex: switch, PC or Server.
- Page 21 Power over Ethernet Powered Device Voice over IP phones Enterprise can install POE VoIP Phone, ATA and other Ethernet/non-Ethernet end-devices to the central where UPS is installed for un-interrupt power system and power control 3~5 Watts system. Wireless LAN Access Points Museum, Sightseeing, Airport, Hotel, Campus, Factory, Warehouse can install the Access Point any where with no hesitation.
-
Page 22: Power Over Ethernet Overview
4. Power Over Ethernet Overview What is PoE? Based on the global standard IEEE 802.3af, PoE is a technology for wired Ethernet, the most widely installed local area network technology adopted today. PoE allows the electrical power necessary for the operation of each end-device to be carried by data cables rather than by separate power cords. - Page 23 POWER SOURCING POWERED DEVICE EQUIPMENT (PSE) (PD) SPARE PAIR DC / DC SIGNAL PAIR Converter Converter SIGNAL PAIR SPARE PAIR Figure 1 - Power Supplied over the Spare Pins The data pairs are used. Since Ethernet pairs are transformer coupled at each end, it is possible to apply DC power to the center tap of the isolation transformer without upsetting the data transfer.
- Page 24 When to install PoE? Consider the following scenarios: You’re planning to install the latest VoIP Phone system to minimize cabling building costs when your company moves into new offices next month. The company staff has been clamoring for a wireless access point in the picnic area behind the building so they can work on their laptops through lunch, but the cost of electrical power to the outside is not affordable.
-
Page 25: Troubleshooting
5. Troubleshooting This chapter contains information to help you solve issues. If the Industrial M12 Ethernet Switch is not functioning properly, make sure the Industrial M12 Ethernet Switch was set up according to instructions in this manual. The per port LED is not lit Solution: Check the cable connection of the Industrial M12 Ethernet Switch. -
Page 26: Appendix A: Networking Connection
4, 5 Not used Rx - (receive) Tx - (transmit) 7, 8 Not used A.2 RJ-45 Cable Pin Assignments Pinouts for the RJ-45(8-Pin) Port ISW-800T-M12/ISW-804PT-M12 RJ-45(8-Pin) Singnal Pinout 1: TX+ MDI-X Pinout 2: RX+ Pinout 3: TX - TX -... - Page 27 The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight Cable SIDE 1 SIDE 2 1 = White/Orange 1 = White/Orange SIDE 1 2 = Orange...
