Table I-PC-2. Gravity Block Dimensions —
English (inches)
Unit Size A B
SXWF 20-38 25 32
SXRF 20-35
SXWF 42-80 33 34
SXRF 40-60

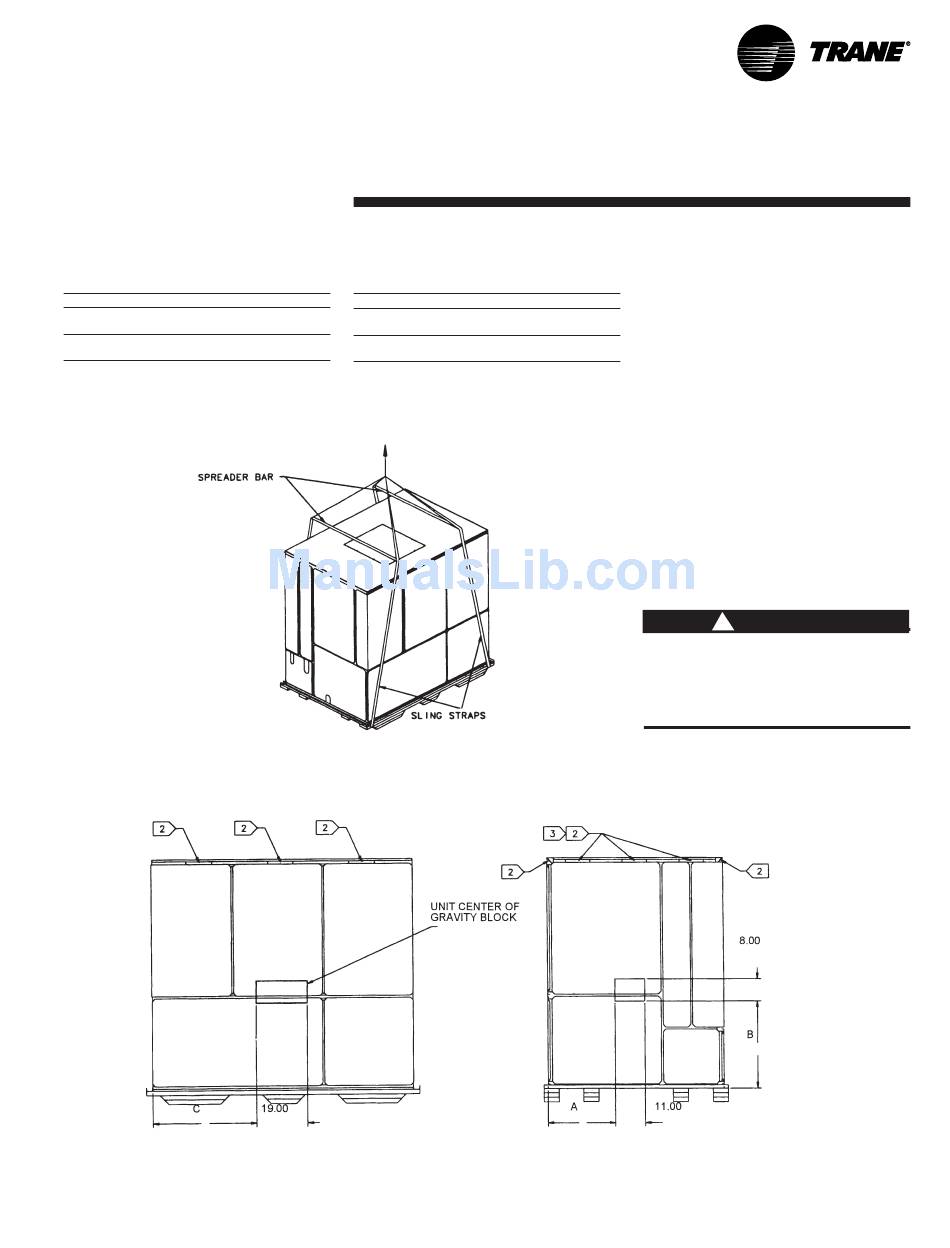

Figure I-PC-3. Proper rigging and handling of the self-contained unit.
SCXF-SVX01B-EN
Installation
Table I-PC-3. Gravity Block Dimensions —
Metric (mm)
C
Unit Size
38
SXWF 20-38
SXRF 20-35
50
SXWF 42-80
SXRF 40-60
(483)
A B C
635 813 965
838 864 1270
Pre-Installation
Considerations

Rigging and Handling

Unit Shipping

Units ship strapped to the truck bed on
shipping skids. The unit and skid are
strapped down to the truck bed at the
locations marked "2" in Figure I-PC-3 or
where a brace is in the unit roof "C"
channel.

Unit Handling Procedure

1. Position rigging sling under wood skid
using spreader bars to avoid unit
damage.
2. Use a forklift with caution to prevent
unit damage. The fork length must be at
least 68 inches long to safely fork the unit
from front or back.
3. The unit center of gravity will fall within
the center of gravity block at various
locations depending on unit options.
4. See unit nameplate for unit weight.
CAUTION
!
Do not use hooks to lift unit or
hook into open channels to lift
unit. This could cause unit
damage.
(203)
(279)
