PRACTICAL USER'S GUIDE
Write Your Remote
Control Code Number
Here:
Valued Customer,
We are pleased that you have chosen to purchase an electric fireplace
manufactured by Dimplex North America Ltd.
Over the years, valuable memories will occur around the warmth and
comfort of your hearth. Thank you for allowing our product to be the backdrop
for those special moments.

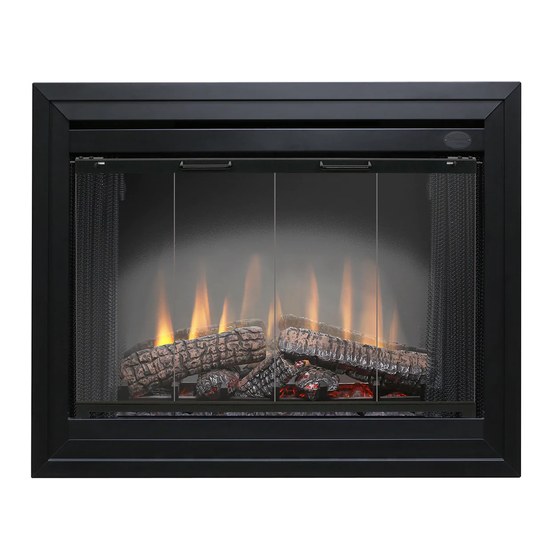

FOR THE
ELECTRIC FIREPLACE
MODEL NUMBERS:
BF45DXP
BF39STP/DXP
BF33STP/DXP
Quality checked by:
7206360500REV02
Advertisement
Related Manuals for Dimplex BF45DXP
Summary of Contents for Dimplex BF45DXP
- Page 1 Valued Customer, We are pleased that you have chosen to purchase an electric fireplace manufactured by Dimplex North America Ltd. Over the years, valuable memories will occur around the warmth and comfort of your hearth. Thank you for allowing our product to be the backdrop for those special moments.
- Page 2 5. If you have any technical questions regarding the operation of your fireplace , or require service for your fireplace contact Dimplex North America customer service at 1-888-DIMPLEX (1-888-346-7539).
-
Page 3: Table Of Contents
CONTENTS PAGE 1 Important Instructions PAGE 2 Model and Serial Number Information PAGE 3 Bathroom Installation PAGE 3 Operation PAGE 5 Maintenance PAGE 8 Accessories PAGE 9 Warranty... -
Page 4: Important Instructions
IMPORTANT INSTRUCTIONS SAVE THESE INSTRUCTIONS PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using this fireplace. 2. -
Page 5: Model And Serial Number
Important Instructions If you have any questions about our products please have the product model and serial numbers available upon calling Dimplex customer service. To locate the model and serial number labels see below. Model Number Serial Number Serial Number... -
Page 6: Operation
Model Number Serial Number Carton Bathroom Installation This firebox must be protected by a GFI receptacle or circuit. If receptacle is used it must be readily accessible. To prevent electrical shock this unit is an electrical appliance that is not watertight and must be installed as to prevent water from entering the unit. - Page 7 Manual Controls Main Power Switch Main on/off switch, energizes firebox and flame. o Flame only Mode Selector Switch = Heat/flame Select preferred feature: - Purifire only/flame Select “o” for flame only Select “=” for heat/Purifire /flame Select “-“ for Purifire only/flame.
-
Page 8: Maintenance
The Temperature Cutout Switch The heater on this fireplace is protected with a safety device to prevent overheating. Should the heater overheat, a red light (Fig. 1) will be activated and an automatic cutout will turn the heater off and it will not come back on without being reset. It can be reset by switching the Main Power switch to OFF and waiting 5 minutes before switching it to ON. - Page 9 To access the light bulb area 1. Open steel curtain (remove glass doors if applicable). 2. Remove two screws on log bracket and set aside. (FIGURE 3) 3. Pull front edge of plastic ember bed or plastic grate up and forward until rear tab releases from the ledge located at the bottom of the mirror.
- Page 10 Purifire™ Filter The Purifire™ filter supplied in your fireplace is reusable and washable. The filter should be cleaned or replaced on average once a year, or if overheat indicator lamp is activated. To clean the filter gently tap filter on a hard surface to dislodge any loose dirt or debris, and then clean with water.
-
Page 11: Accessories
To prevent scratching, do not use abrasive cleaners or spray liquids on any surface. Accessories Please contact your local dealer for genuine Dimplex accessories. Example: glass door kits, brass and stainless steel trims, remote control kits, plug kits, and cabinets designed to fit your... -
Page 12: Warranty
What this limited warranty does not cover This limited warranty does not apply to products that have been repaired (except by Dimplex or its authorized service representatives) or otherwise altered. This limited warranty does further not apply to defects resulting from misuse, abuse, accident, neglect, incorrect installation,... - Page 13 Dimplex will in its sole discretion either repair or replace such defective product or part without charge. If Dimplex is unable to repair or replace such product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.
- Page 14 What Dimplex and its dealers and service agents are also not responsible for: IN NO EVENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE TO THE PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT, IN TORT, OR ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY,...
